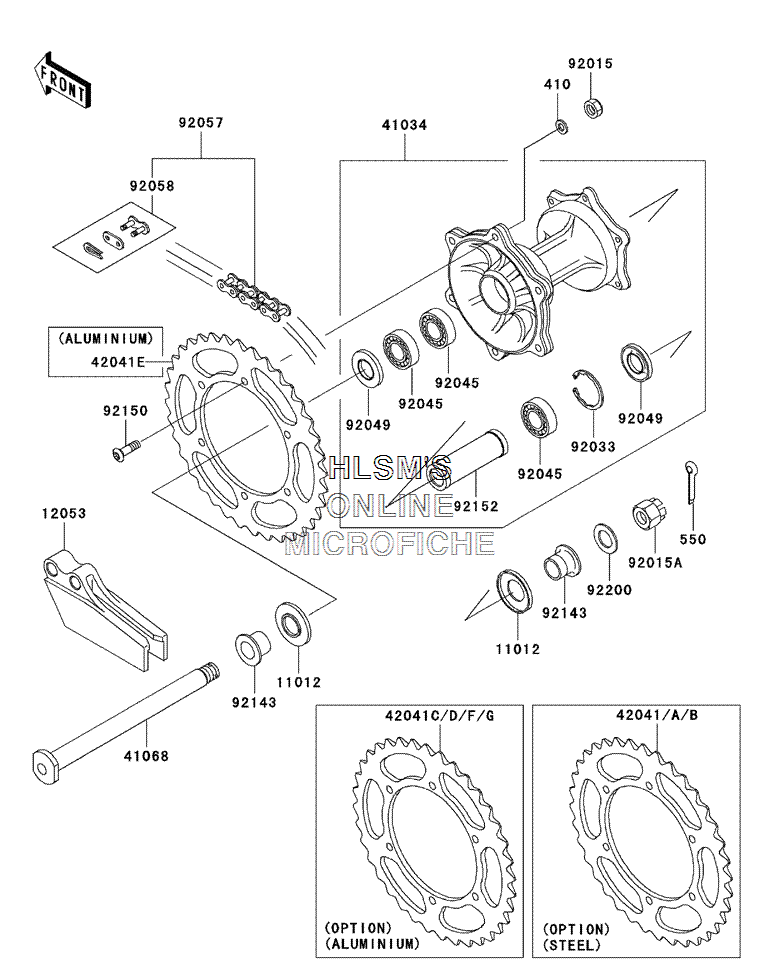

REAR HUB для Kawasaki KX 250 - 2002 года выпуска

  • №
    Артикул
    Название
  • 410
    410B0800 WASHER, PLAIN, SMALL, 8MM
    WASHER, PLAIN, SMALL, 8MM
  • 550
    550D3025 PIN, COTTER, 3.0X25
    PIN, COTTER, 3.0X25
  • 11012
    11012-1581 CAP, AXLE
    CAP, AXLE
  • 12053
    12053-1376 GUIDE, CHAIN, DRIVE, REAR
    GUIDE, CHAIN, DRIVE, REAR
  • 41034
    41034-1301 DRUM, ASSY, REAR BRAKE
    DRUM, ASSY, REAR BRAKE
  • 41068
    41068-1343 AXLE, REAR
    AXLE, REAR
  • 42041
    42041-1383 SPROCKET, HUB (48 TEETH) (OPT)
    SPROCKET, HUB (48 TEETH) (OPT)
  • 42041A
    42041-1384 SPROCKET, HUB (49 TEETH) (OPT)
    SPROCKET, HUB (49 TEETH) (OPT)
  • 42041B
    42041-1408 SPROCKET, HUB (50 TEETH) (OPT)
    SPROCKET, HUB (50 TEETH) (OPT)
  • 42041C
    42041-1447 SPROCKET, HUB (47 TEETH) AL (OPT)
    SPROCKET, HUB (47 TEETH) AL (OPT)
  • 42041D
    42041-1448 SPROCKET, HUB (48 TEETH) AL (OPT)
    SPROCKET, HUB (48 TEETH) AL (OPT)
  • 42041E
    42041-1449 SPROCKET, HUB (49 TEETH)
    SPROCKET, HUB (49 TEETH)
  • 42041F
    42041-1450 SPROCKET, HUB (50 TEETH) AL (OPT)
    SPROCKET, HUB (50 TEETH) AL (OPT)
  • 42041G
    42041-1451 SPROCKET, HUB (51 TEETH) AL (OPT)
    SPROCKET, HUB (51 TEETH) AL (OPT)
  • 92015
    92015-1432 NUT, 8MM
    NUT, 8MM
  • 92015A
    92015-1885 NUT, CASTLE, 18MM
    NUT, CASTLE, 18MM
  • 92033
    92033-1041 RING, SNAP, 42MM
    RING, SNAP, 42MM
  • 92045
    92045-1239 BEARING, BALL, 6004X8JRLLX2/3A
    BEARING, BALL, 6004X8JRLLX2/3A
  • 92049
    92049-1314 SEAL, OIL, MHSA25 42 6
    SEAL, OIL, MHSA25 42 6
  • 92057
    92057-1503 CHAIN, DRIVE, DID520DMA2SDHX114L
    CHAIN, DRIVE, DID520DMA2SDHX114L
  • 92058
    92058-1074 JOINT, CHAIN, DRIVE
    JOINT, CHAIN, DRIVE
  • 92143
    92143-1905 COLLAR, REAR AXLE, L=20
    COLLAR, REAR AXLE, L=20
  • 92150
    92150-1978 BOLT, SOCKET, 8X28
    BOLT, SOCKET, 8X28
  • 92152
    92152-1144 COLLAR, REAR BRAKE DRUM, L=93
    COLLAR, REAR BRAKE DRUM, L=93
  • 92200
    92200-1149 WASHER, 18.5X32X2.3
    WASHER, 18.5X32X2.3
