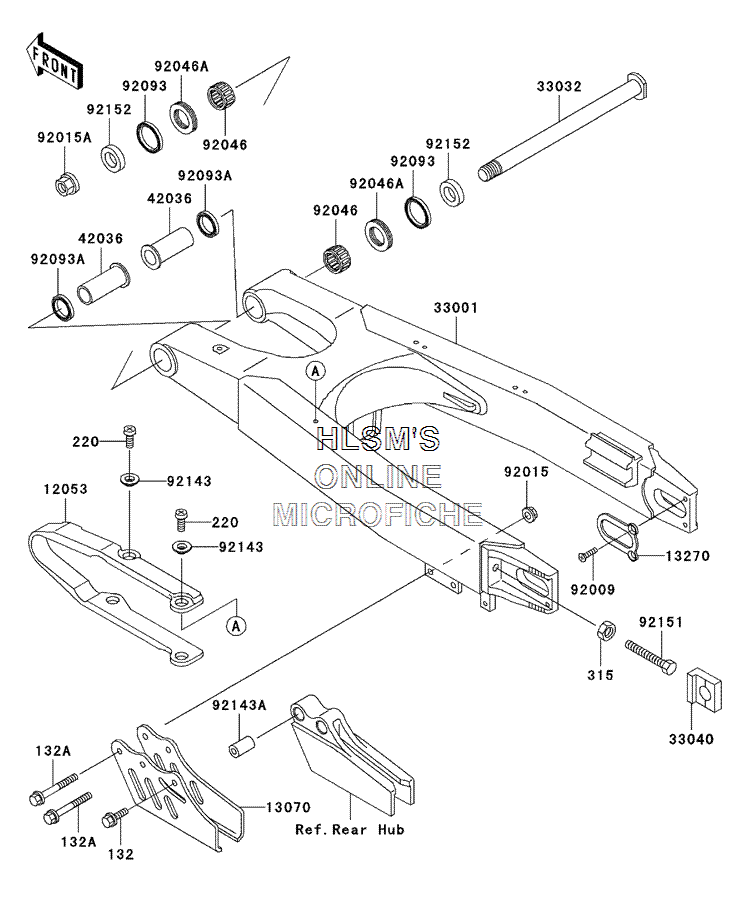

SUSPENSION - SWINGARM для Kawasaki KX 250 - 2002 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0612 BOLT, FLANGED, SMALL 6X12
    BOLT, FLANGED, SMALL 6X12
  • 132A
    132G0650 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 220
    220B0508 SCREW, PAN, CROS, 5X8
    SCREW, PAN, CROS, 5X8
  • 315
    315G1000 NUT, HEX, FINE, 10MM
    NUT, HEX, FINE, 10MM
  • 12053
    12053-1422 GUIDE, CHAIN, DRIVE, FRONT
    GUIDE, CHAIN, DRIVE, FRONT
  • 13070
    13070-1333 GUIDE, DRIVE CHAIN GUIDE, REAR
    GUIDE, DRIVE CHAIN GUIDE, REAR
  • 13270
    13270-1636 PLATE
    PLATE
  • 33001
    33001-1576-TX ARM, COMP, SWING (SILVER)
    ARM, COMP, SWING (SILVER)
  • 33032
    33032-1189 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-1156 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 42036
    42036-1326 SLEEVE, SWING ARM, L=54
    SLEEVE, SWING ARM, L=54
  • 92009
    92009-1828 SCREW, 5X10
    SCREW, 5X10
  • 92015
    92015-1078 NUT, FLANGED, 6MM
    NUT, FLANGED, 6MM
  • 92015A
    92015-1316 NUT, FLANGED, 16MM
    NUT, FLANGED, 16MM
  • 92046
    92046-1174 BEARING, NEEDLE, TA2230Z
    BEARING, NEEDLE, TA2230Z
  • 92046A
    92046-1240 BEARING, NEEDLE, NTBR22356E01
    BEARING, NEEDLE, NTBR22356E01
  • 92093
    92093-1434 SEAL, SDO29X35X4.5
    SEAL, SDO29X35X4.5
  • 92093A
    92093-1435 SEAL, SDO22X29X5
    SEAL, SDO22X29X5
  • 92143
    92143-1676 COLLAR
    COLLAR
  • 92143A
    92143-1867 COLLAR, 6.5X14X24
    COLLAR, 6.5X14X24
  • 92151
    92151-1397 BOLT, 10X55
    BOLT, 10X55
  • 92152
    92152-1137 COLLAR, 17.1X29X7.5
    COLLAR, 17.1X29X7.5
