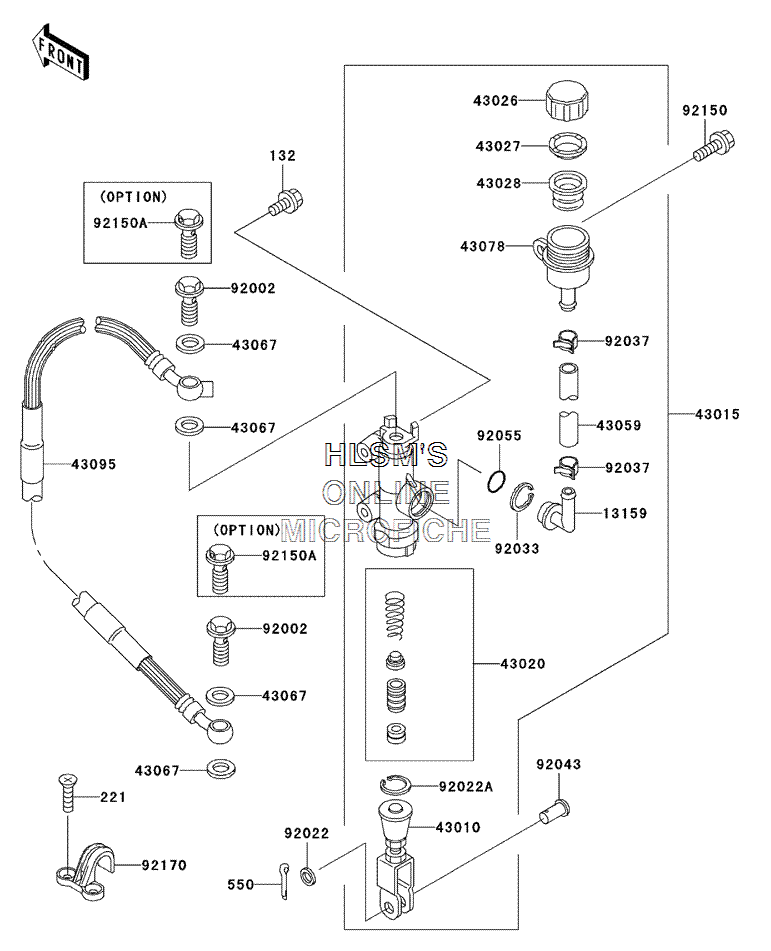

BRAKE - MASTER CYLINDER - REAR для Kawasaki KX 250 - 2002 года выпуска

  • №
    Артикул
    Название
  • 132
    132G0614 BOLT, FLANGED, SMALL
    BOLT, FLANGED, SMALL
  • 221
    221B0510 SCREW, CSK, CROS 5X10
    SCREW, CSK, CROS 5X10
  • 550
    550D2015 PIN, COTTER, 2.0X15
    PIN, COTTER, 2.0X15
  • 13159
    13159-1056 CONNECTOR
    CONNECTOR
  • 43010
    43010-1087 ROD, ASSY, BRAKE
    ROD, ASSY, BRAKE
  • 43015
    43015-1692 CYLINDER, ASSY, MASTER, REAR
    CYLINDER, ASSY, MASTER, REAR
  • 43020
    43020-1094 PISTON, COMP, BRAKE
    PISTON, COMP, BRAKE
  • 43026
    43026-1058 CAP, BRAKE
    CAP, BRAKE
  • 43027
    43027-1052 PLATE, DIAPHRAGM
    PLATE, DIAPHRAGM
  • 43028
    43028-1060 DIAPHRAGM
    DIAPHRAGM
  • 43059
    43059-1985 HOSE, BRAKE, REAR MASTER CYLINDER
    HOSE, BRAKE, REAR MASTER CYLINDER
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 43078
    43078-1068 RESERVOIR
    RESERVOIR
  • 43095
    43095-1236 HOSE, BRAKE, REAR
    HOSE, BRAKE, REAR
  • 92002
    92002-1888 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92022
    92022-1028 WASHER, 8.5X13X1
    WASHER, 8.5X13X1
  • 92022A
    92022-1601 WASHER, CIRCRIP
    WASHER, CIRCRIP
  • 92033
    92033-1186 RING, SNAP, 20.5MM
    RING, SNAP, 20.5MM
  • 92037
    92037-1710 CLAMP
    CLAMP
  • 92043
    92043-1039 PIN
    PIN
  • 92055
    92055-1251 O-RING, MASTER CYLINDER
    O-RING, MASTER CYLINDER
  • 92150
    92150-1507 BOLT, FLANGED, 6X25
    BOLT, FLANGED, 6X25
  • 92150A
    92150-1886 BOLT, OIL, L=23, FOR SAFETY WIRE (OPT)
    BOLT, OIL, L=23, FOR SAFETY WIRE (OPT)
  • 92170
    92170-1684 CLAMP, HOSE
    CLAMP, HOSE
