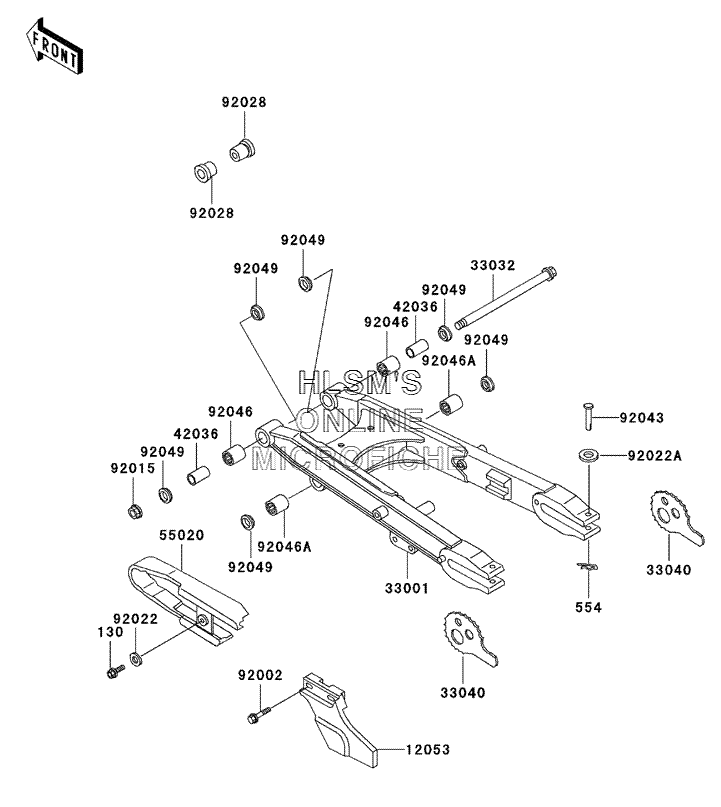

SUSPENSION - SWINGARM для Kawasaki KLR250 - 2000 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0512 BOLT, FLANGED
    BOLT, FLANGED
  • 554
    554A0600 PIN, SNAP
    PIN, SNAP
  • 12053
    12053-1104 GUIDE, CHAIN, REAR
    GUIDE, CHAIN, REAR
  • 33001
    33001-1253-CE ARM, COMP, SWING (SILVER NO.25)
    ARM, COMP, SWING (SILVER NO.25)
  • 33032
    33032-1108 SHAFT, SWING ARM
    SHAFT, SWING ARM
  • 33040
    33040-1060 ADJUSTER, CHAIN
    ADJUSTER, CHAIN
  • 42036
    42036-1103 SLEEVE, 15.1X20X42.5
    SLEEVE, 15.1X20X42.5
  • 55020
    55020-1154 GUARD, CHAIN, FRONT
    GUARD, CHAIN, FRONT
  • 92002
    92002-1088 BOLT, 6X45
    BOLT, 6X45
  • 92015
    92015-1459 NUT, 14MM
    NUT, 14MM
  • 92022
    92022-104 WASHER, 5.5X20X1.2
    WASHER, 5.5X20X1.2
  • 92022A
    92022-183 WASHER, 6.2X11X1.5
    WASHER, 6.2X11X1.5
  • 92028
    92028-1261 BUSHING, SWING ARM
    BUSHING, SWING ARM
  • 92043
    92043-1110 PIN, 6X44.5
    PIN, 6X44.5
  • 92046
    92046-1110 BEARING, NEEDLE, BM202726
    BEARING, NEEDLE, BM202726
  • 92046A
    92046-1113 BEARING, NEEDLE, BTM202730
    BEARING, NEEDLE, BTM202730
  • 92049
    92049-1109 SEAL, OIL, ARM, CENTER
    SEAL, OIL, ARM, CENTER
