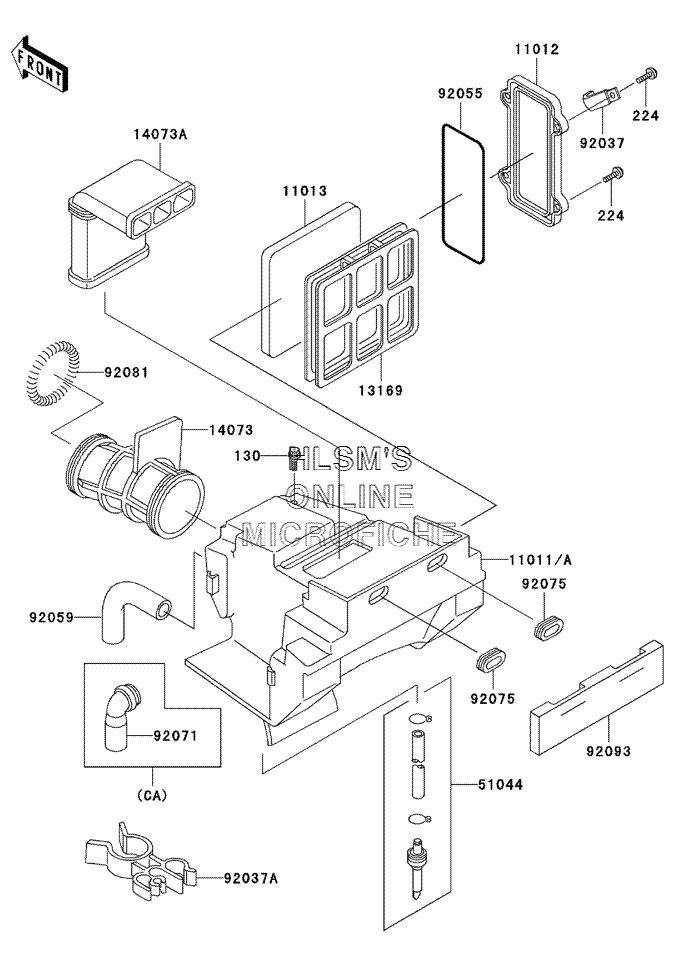

AIR CLEANER для Kawasaki KLR250 - 2000 года выпуска

  • №
    Артикул
    Название
  • 130
    130G0612 BOLT, FLANGED, 6X12
    BOLT, FLANGED, 6X12
  • 224
    224C0614 SCREW, PAN, WP, CROS
    SCREW, PAN, WP, CROS
  • 11011
    11011-1275 CASE, AIR FILTER (US ONLY)
    CASE, AIR FILTER (US ONLY)
  • 11011A
    11011-1276 CASE, AIR FILTER (CALIF. ONLY)
    CASE, AIR FILTER (CALIF. ONLY)
  • 11012
    11012-1661 CAP, ELEMENT
    CAP, ELEMENT
  • 11013
    11013-1117 ELEMENT, AIR FILTER
    ELEMENT, AIR FILTER
  • 13169
    13169-1851 PLATE, ELEMENT
    PLATE, ELEMENT
  • 14073
    14073-1184 DUCT, CARBURETOR
    DUCT, CARBURETOR
  • 14073A
    14073-1185 DUCT, INTAKE
    DUCT, INTAKE
  • 51044
    51044-1087 TUBE, ASSY, AIR FILTER
    TUBE, ASSY, AIR FILTER
  • 92037
    92037-1069 CLAMP, WIRING HARNESS, L=60
    CLAMP, WIRING HARNESS, L=60
  • 92037A
    92037-1886 CLAMP
    CLAMP
  • 92055
    92055-1254 O-RING, AIR FILTER
    O-RING, AIR FILTER
  • 92059
    92059-1482 TUBE, BREATHER
    TUBE, BREATHER
  • 92071
    92071-1114 GROMMET, AIR FILTER (CALIF. ONLY)
    GROMMET, AIR FILTER (CALIF. ONLY)
  • 92075
    92075-1513 DAMPER
    DAMPER
  • 92081
    92081-1177 SPRING, COIL
    SPRING, COIL
  • 92093
    92093-1187 SEAL
    SEAL
