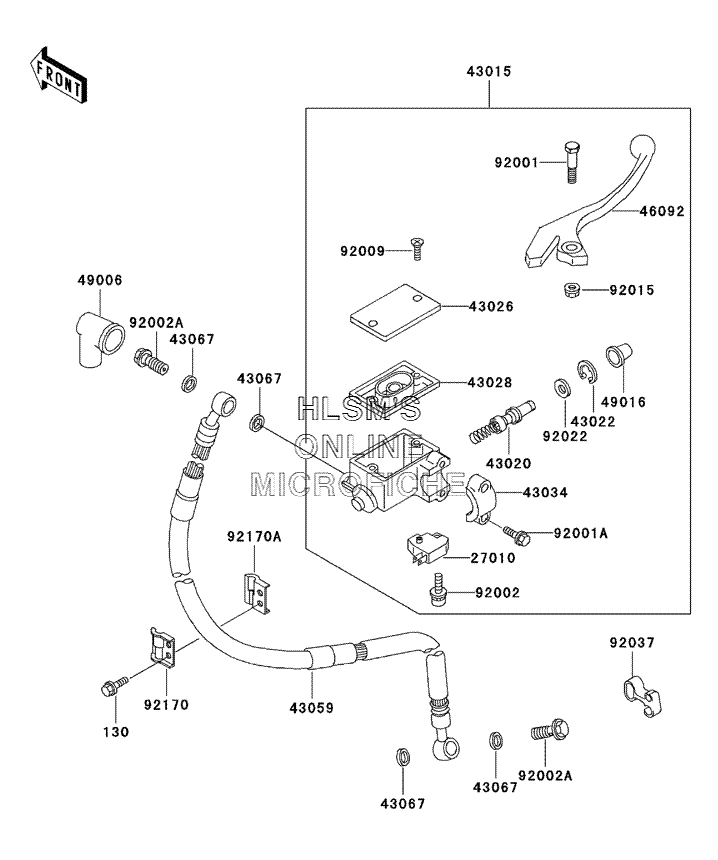

BRAKE - MASTER CYLINDER - FRONT для Kawasaki KLR250 - 2000 года выпуска

  • №
    Артикул
    Название
  • 130
    130J0614 BOLT, FLANGED, 6X14 (BLACK)
    BOLT, FLANGED, 6X14 (BLACK)
  • 27010
    27010-1170 SWITCH, BRAKE
    SWITCH, BRAKE
  • 43015
    43015-1470 CYLINDER, ASSY, MASTER, FRONT
    CYLINDER, ASSY, MASTER, FRONT
  • 43020
    43020-1065 PISTON, COMP, BRAKE
    PISTON, COMP, BRAKE
  • 43022
    43022-1010 STOPPER, BRAKE, PISTON
    STOPPER, BRAKE, PISTON
  • 43026
    43026-1074 CAP, BRAKE
    CAP, BRAKE
  • 43028
    43028-1061 DIAPHRAGM
    DIAPHRAGM
  • 43034
    43034-1016 HOLDER, BRAKE, MASTER CYLINDER
    HOLDER, BRAKE, MASTER CYLINDER
  • 43059
    43059-1799 HOSE, BRAKE, FRONT
    HOSE, BRAKE, FRONT
  • 43067
    43067-001 WASHER, 10.5X15X1.5
    WASHER, 10.5X15X1.5
  • 46092
    46092-1135 LEVER, GRIP, FRONT BRAKE
    LEVER, GRIP, FRONT BRAKE
  • 49006
    49006-1040 BOOT, DUST
    BOOT, DUST
  • 49016
    49016-1044 COVER, SEAL, MASTER CYLINDER
    COVER, SEAL, MASTER CYLINDER
  • 92001
    92001-1728 BOLT, FRONT BRAKE LEVER
    BOLT, FRONT BRAKE LEVER
  • 92001A
    92001-1729 BOLT, 6X25 (BLACK)
    BOLT, 6X25 (BLACK)
  • 92002
    92002-1323 BOLT, SCREW, 4X12
    BOLT, SCREW, 4X12
  • 92002A
    92002-1888 BOLT, OIL, L=23
    BOLT, OIL, L=23
  • 92009
    92009-1458 SCREW, 4MM
    SCREW, 4MM
  • 92015
    92015-1233 NUT, FLANGED, 6MM (BLACK)
    NUT, FLANGED, 6MM (BLACK)
  • 92022
    92022-1814 WASHER
    WASHER
  • 92037
    92037-1629 CLAMP, BRAKE HOSE
    CLAMP, BRAKE HOSE
  • 92170
    92170-1231 CLAMP, BRAKE HOSE, OUTSIDE
    CLAMP, BRAKE HOSE, OUTSIDE
  • 92170A
    92170-1232 CLAMP, BRAKE HOSE, INSIDE
    CLAMP, BRAKE HOSE, INSIDE
