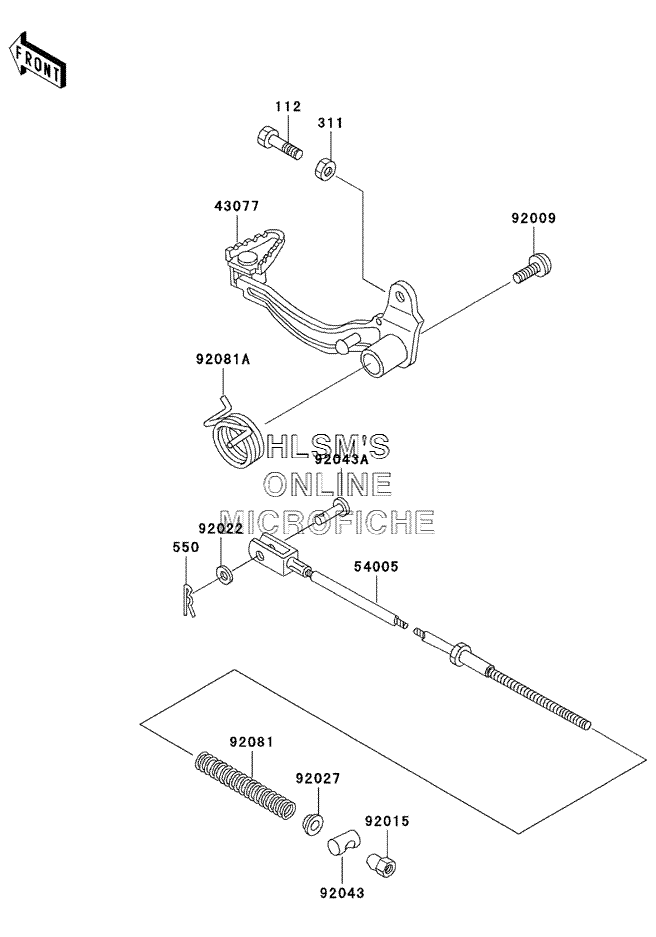

BRAKE PEDAL для Kawasaki KLR250 - 2000 года выпуска`
-
№АртикулНазвание
-
112112C0625 BOLT, UPSET, 6X25 (BLACK)BOLT, UPSET, 6X25 (BLACK)
-
311311B0600 NUT, HEX, 6MMNUT, HEX, 6MM
-
550550D2015 PIN, COTTER, 2.0X15PIN, COTTER, 2.0X15
-
4307743077-1079 LEVER, ASSY, BRAKE, PEDALLEVER, ASSY, BRAKE, PEDAL
-
5400554005-1108 CABLE, BRAKE, REARCABLE, BRAKE, REAR
-
9200992009-1286 SCREW, 6X10 (WHITE)SCREW, 6X10 (WHITE)
-
9201592015-042 NUT, BRAKE RODNUT, BRAKE ROD
-
9202292022-1556 WASHER, 6.5X11.5X0.8WASHER, 6.5X11.5X0.8
-
9202792027-1794 COLLARCOLLAR
-
9204392043-065 PIN, BRAKE RODPIN, BRAKE ROD
-
92043A92043-125 PIN, 6X14.5PIN, 6X14.5
-
9208192081-1610 SPRING, REAR BRAKE CABLESPRING, REAR BRAKE CABLE
-
92081A92081-1782 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
