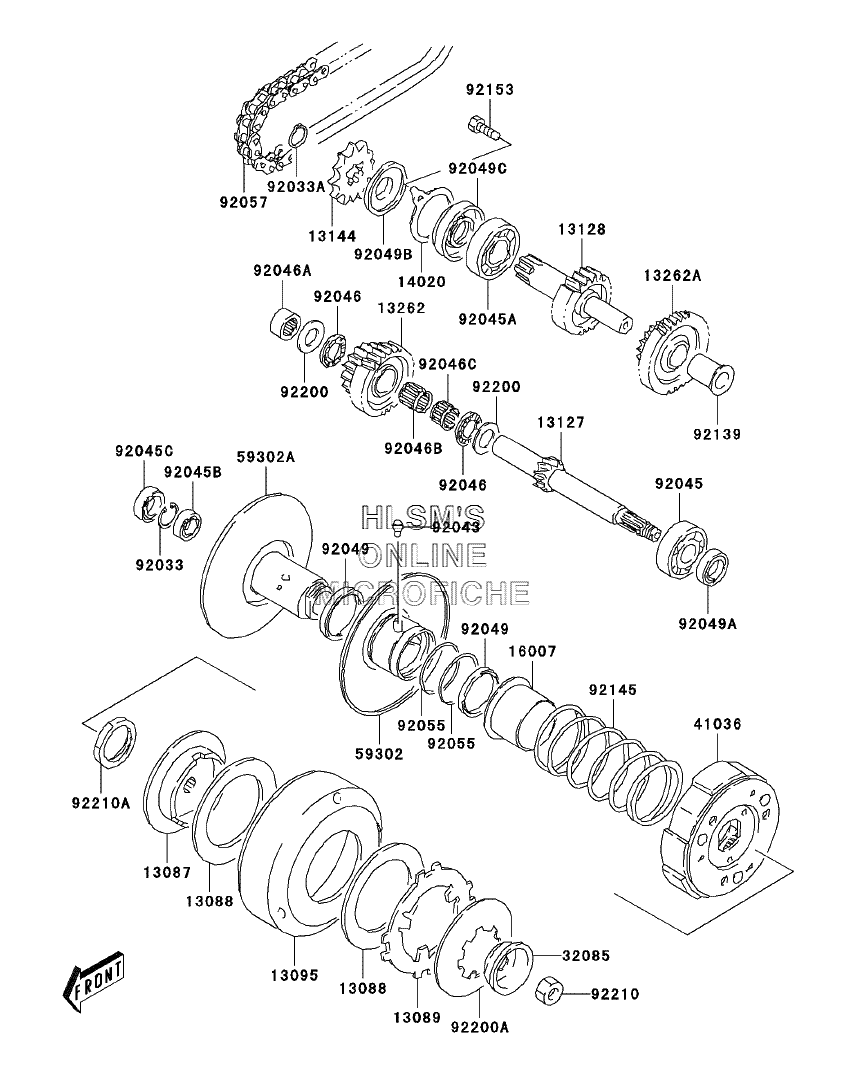

TRANSMISSION для Kawasaki KFX80 (6FKSF80A6F) - 2006 года выпуска`
-
№АртикулНазвание
-
1308713087-S002 HUB-CLUTCHHUB-CLUTCH
-
1308813088-S002 PLATE-FRICTION, LIMITER CLUTCHPLATE-FRICTION, LIMITER CLUTCH
-
1308913089-S002 PLATE-CLUTCH, LIMITER CLUTCHPLATE-CLUTCH, LIMITER CLUTCH
-
1309513095-S005 HOUSING-COMP-CLUTCHHOUSING-COMP-CLUTCH
-
1312713127-S005 SHAFT-TRANSMISSION INPUTSHAFT-TRANSMISSION INPUT
-
1312813128-S007 SHAFT-TRANSMISSION OUTPUTSHAFT-TRANSMISSION OUTPUT
-
1314413144-S004 SPROCKET-OUTPUT (10 TEETH-520)SPROCKET-OUTPUT (10 TEETH-520)
-
1326213262-S002 GEAR-TRANSMISSION SPUR, FINALGEAR-TRANSMISSION SPUR, FINAL
-
13262A13262-S003 GEAR-TRANSMISSION SPUR, IDLERGEAR-TRANSMISSION SPUR, IDLER
-
1402014020-S005 RETAINER, DRIVE SHAFTRETAINER, DRIVE SHAFT
-
1600716007-S004 SEAT-SPRING, MOVABLE DRIVENSEAT-SPRING, MOVABLE DRIVEN
-
3208532085-S006 STOPPER, LIMITER CLUTCHSTOPPER, LIMITER CLUTCH
-
4103641036-S005 HUB-ASSYHUB-ASSY
-
5930259302-S009 SHEAVE-COMP, MOVABLE DRIVENSHEAVE-COMP, MOVABLE DRIVEN
-
59302A59302-S010 SHEAVE-COMP, FIXED DRIVENSHEAVE-COMP, FIXED DRIVEN
-
9203392033-S004 RING-SNAPRING-SNAP
-
92033A92033-S020 RING-SNAPRING-SNAP
-
9204392043-S030 PIN, MOVABLE DRIVENPIN, MOVABLE DRIVEN
-
9204592045-S015 BEARING-BALL, 15X42X13BEARING-BALL, 15X42X13
-
92045A92045-S017 BEARING-BALL, 20X47X14BEARING-BALL, 20X47X14
-
92045B92045-S041 BEARING-BALL, FIXED DRIVENBEARING-BALL, FIXED DRIVEN
-
92045C92045-S042 BEARING-BALL, FIXED DRIVENBEARING-BALL, FIXED DRIVEN
-
9204692046-S006 BEARING-NEEDLE, 15X28X2BEARING-NEEDLE, 15X28X2
-
92046A92046-S011 BEARING-NEEDLE, SHAFTBEARING-NEEDLE, SHAFT
-
92046B92046-S012 BEARING-NEEDLE, FINAL DRIVEBEARING-NEEDLE, FINAL DRIVE
-
92046C92046-S013 BEARING-NEEDLE, FINAL DRIVEBEARING-NEEDLE, FINAL DRIVE
-
9204992049-S036 SEAL-OIL, MOVABLE DRIVENSEAL-OIL, MOVABLE DRIVEN
-
92049A92049-S037 SEAL-OILSEAL-OIL
-
92049B92049-S039 SEAL-OIL, DRIVE SHAFTSEAL-OIL, DRIVE SHAFT
-
92049C92049-S045 SEAL-OIL, DRIVE SHAFTSEAL-OIL, DRIVE SHAFT
-
9205592055-S020 RING-O, D:1.5, ID:39.7RING-O, D:1.5, ID:39.7
-
9205792057-S009 CHAIN, DRIVE, 36LECHAIN, DRIVE, 36LE
-
9213992139-S017 BUSHING, IDLER DRIVEBUSHING, IDLER DRIVE
-
9214592145-S087 SPRING, MOVABLE DRIVEN FACESPRING, MOVABLE DRIVEN FACE
-
9215392153-S126 BOLTBOLT
-
9220092200-S114 WASHER, FINAL DRIVE GEARWASHER, FINAL DRIVE GEAR
-
92200A92200-S115 WASHERWASHER
-
9221092210-S083 NUT, CLUTCH HOUSINGNUT, CLUTCH HOUSING
-
92210A92210-S084 NUT, SHOE CLUTCHNUT, SHOE CLUTCH
