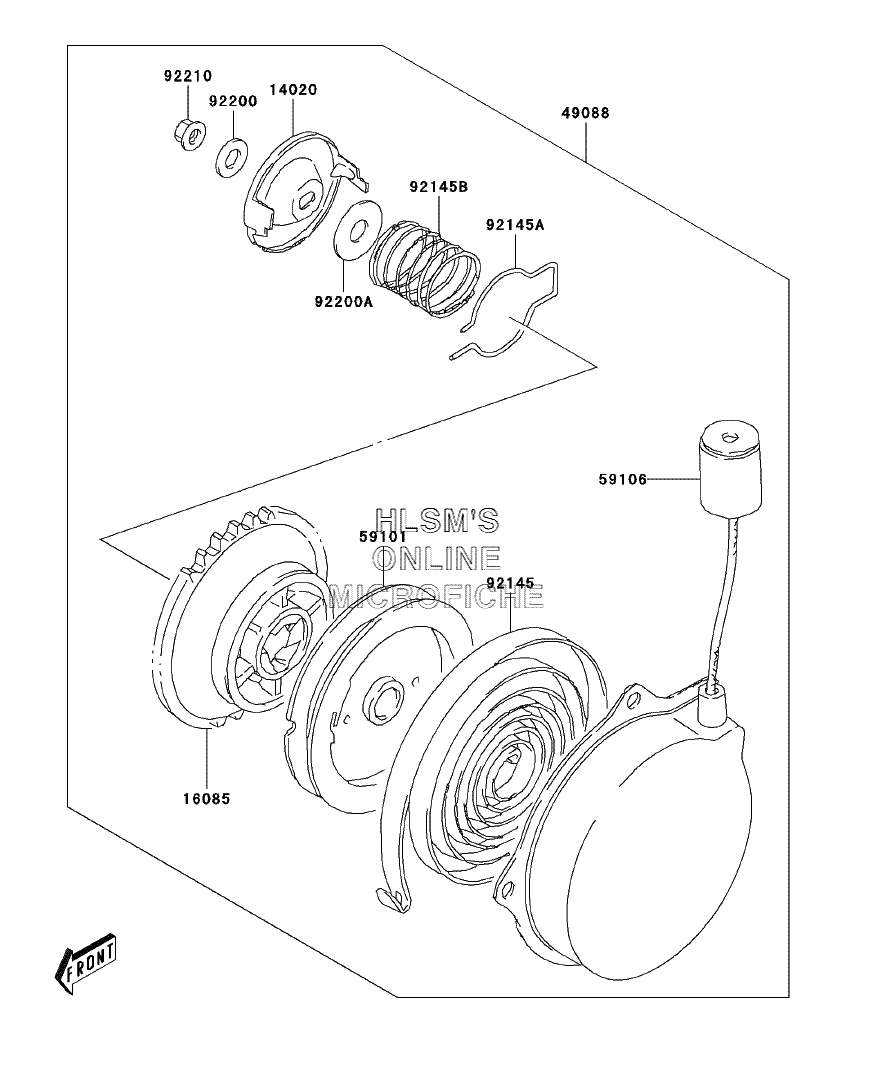

STARTER - RECOIL для Kawasaki KFX80 (6FKSF80A6F) - 2006 года выпуска
-
№АртикулНазвание
-
1402014020-S004 RETAINERRETAINER
-
1608516085-S003 GEARGEAR
-
4908849088-S003 STARTER-RECOILSTARTER-RECOIL
-
5910159101-S004 REELREEL
-
5910659106-S002 ROPEROPE
-
9214592145-S074 SPRING, SPIRALSPRING, SPIRAL
-
92145A92145-S075 SPRING, FRICTIONSPRING, FRICTION
-
92145B92145-S076 SPRING, RETURNSPRING, RETURN
-
9220092200-S108 WASHER, 8.5X18X1.6WASHER, 8.5X18X1.6
-
92200A92200-S109 WASHER, 10.2X27X1.6WASHER, 10.2X27X1.6
-
9221092210-S080 NUTNUT
