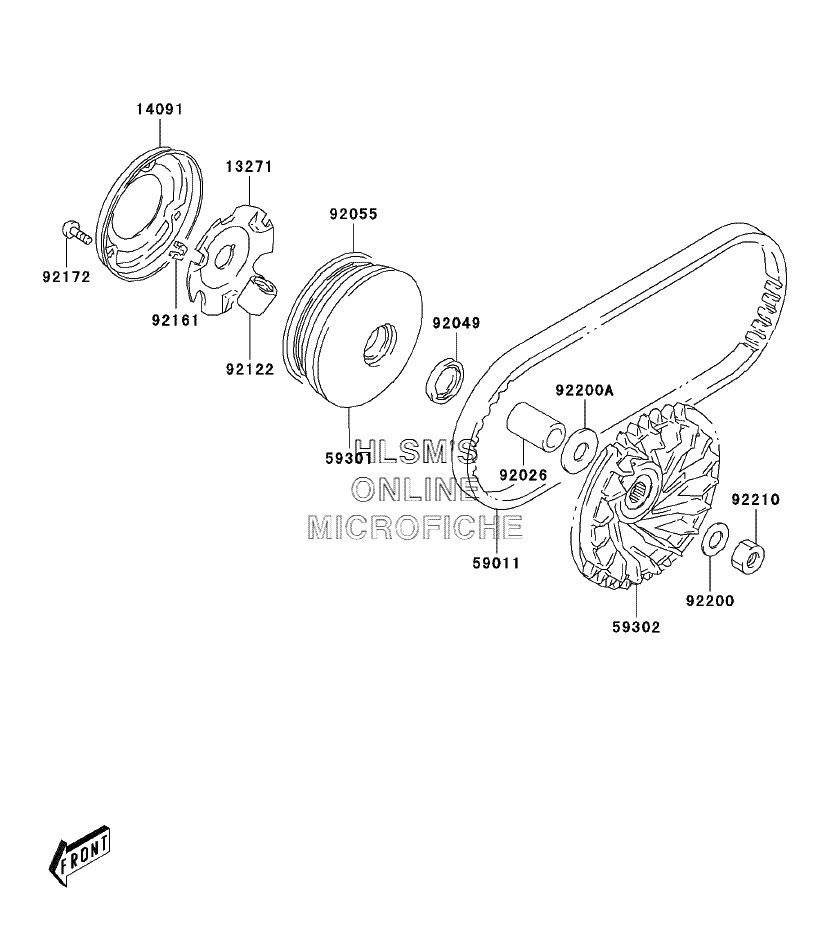

DRIVE CONVERTER для Kawasaki KFX80 (6FKSF80A6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 13271
    13271-S040 PLATE, MOVABLE DRIVE
    PLATE, MOVABLE DRIVE
  • 14091
    14091-S076 COVER, MOVABLE DRIVE
    COVER, MOVABLE DRIVE
  • 59011
    59011-S003 BELT, DRIVE
    BELT, DRIVE
  • 59301
    59301-S003 SHEAVE-MOVABLE
    SHEAVE-MOVABLE
  • 59302
    59302-S007 SHEAVE-COMP, FIXED DRIVE
    SHEAVE-COMP, FIXED DRIVE
  • 92026
    92026-S070 SPACER, MOVABLE DRIVE
    SPACER, MOVABLE DRIVE
  • 92049
    92049-S035 SEAL-OIL, MOVABLE DRIVE
    SEAL-OIL, MOVABLE DRIVE
  • 92055
    92055-S045 RING-O, MOVABLE DRIVE
    RING-O, MOVABLE DRIVE
  • 92122
    92122-S007 ROLLER, MOVABLE DRIVE
    ROLLER, MOVABLE DRIVE
  • 92161
    92161-S074 DAMPER
    DAMPER
  • 92172
    92172-S144 SCREW
    SCREW
  • 92200
    92200-S087 WASHER, CLUTCH
    WASHER, CLUTCH
  • 92200A
    92200-S113 WASHER, MOVABLE DRIVE FACE
    WASHER, MOVABLE DRIVE FACE
  • 92210
    92210-S082 NUT, FIXED DRIVE
    NUT, FIXED DRIVE
