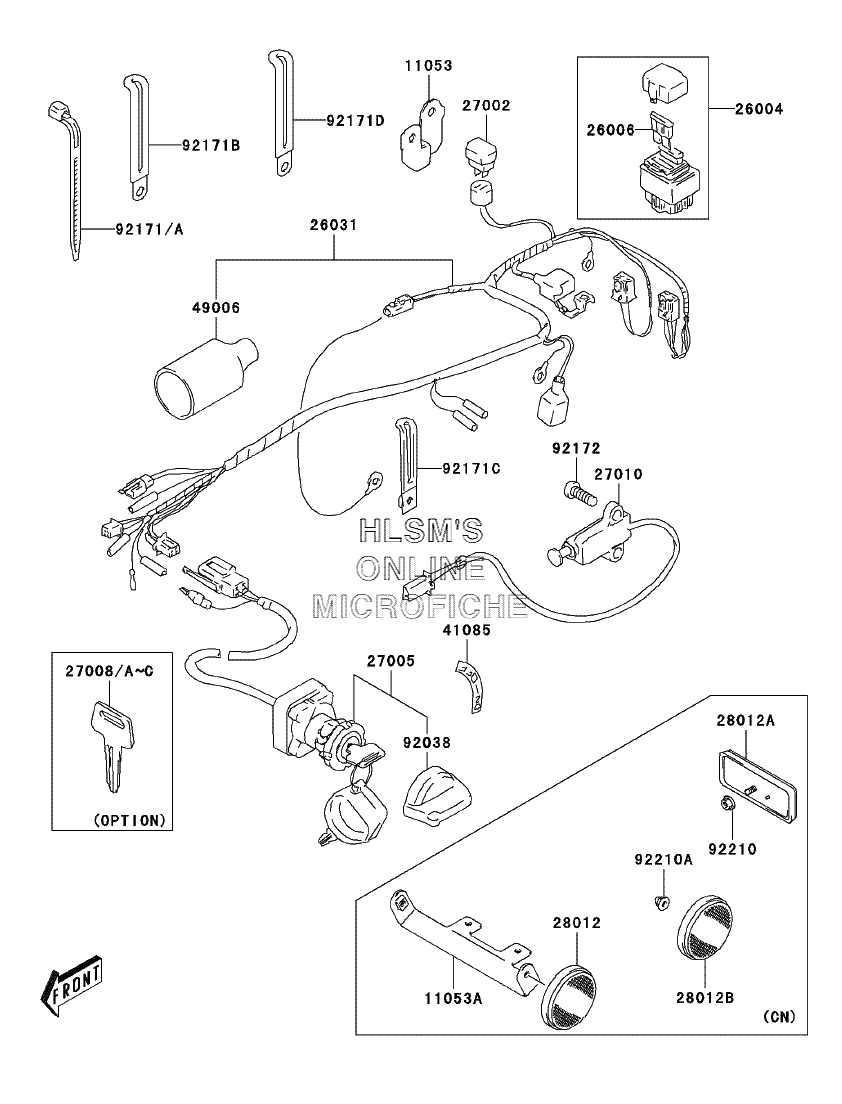

CHASSIS ELECTRICAL EQUIPMENT для Kawasaki KFX80 (6FKSF80A6F) - 2006 года выпуска

  • №
    Артикул
    Название
  • 11053
    11053-S005 BRACKET
    BRACKET
  • 11053A
    11053-S009 BRACKET (CANADA ONLY)
    BRACKET (CANADA ONLY)
  • 26004
    26004-S001 FUSE-ASSY
    FUSE-ASSY
  • 26006
    26006-S005 FUSE, 5A
    FUSE, 5A
  • 26031
    26031-S018 HARNESS
    HARNESS
  • 27002
    27002-S004 RELAY-ASSY
    RELAY-ASSY
  • 27005
    27005-S004 SWITCH-ASSY-IGNITION
    SWITCH-ASSY-IGNITION
  • 27008
    27008-S002 KEY-LOCK, BLANK, (TYPE:C) (OPT)
    KEY-LOCK, BLANK, (TYPE:C) (OPT)
  • 27008A
    27008-S003 KEY-LOCK, BLANK, (TYPE:D) (OPT)
    KEY-LOCK, BLANK, (TYPE:D) (OPT)
  • 27008B
    27008-S006 KEY-LOCK, BLANK (TYPE:E) (OPT)
    KEY-LOCK, BLANK (TYPE:E) (OPT)
  • 27008C
    27008-S007 KEY-LOCK, BLANK (TYPE:F) (OPT)
    KEY-LOCK, BLANK (TYPE:F) (OPT)
  • 27010
    27010-S017 SWITCH, PARKING BRAKE
    SWITCH, PARKING BRAKE
  • 28012
    28012-S001 REFLECTOR-REFLEX, FRONT (CANADA ONLY)
    REFLECTOR-REFLEX, FRONT (CANADA ONLY)
  • 28012A
    28012-S003 REFLECTOR-REFLEX, REAR (CANADA ONLY)
    REFLECTOR-REFLEX, REAR (CANADA ONLY)
  • 28012B
    28012-S004 REFLECTOR-REFLEX, REAR SIDE (CANADA ONLY)
    REFLECTOR-REFLEX, REAR SIDE (CANADA ONLY)
  • 41085
    41085-S003 INDICATOR
    INDICATOR
  • 49006
    49006-S018 BOOT
    BOOT
  • 92038
    92038-S005 COVER, KEY
    COVER, KEY
  • 92171
    92171-S014 CLAMP, L=125
    CLAMP, L=125
  • 92171A
    92171-S016 CLAMP, L=165
    CLAMP, L=165
  • 92171B
    92171-S055 CLAMP, L=95
    CLAMP, L=95
  • 92171C
    92171-S080 CLAMP
    CLAMP
  • 92171D
    92171-S081 CLAMP, WIRING HARNESS
    CLAMP, WIRING HARNESS
  • 92172
    92172-S150 SCREW
    SCREW
  • 92210
    92210-S067 NUT (CANADA ONLY)
    NUT (CANADA ONLY)
  • 92210A
    92210-S097 NUT (CANADA ONLY)
    NUT (CANADA ONLY)
