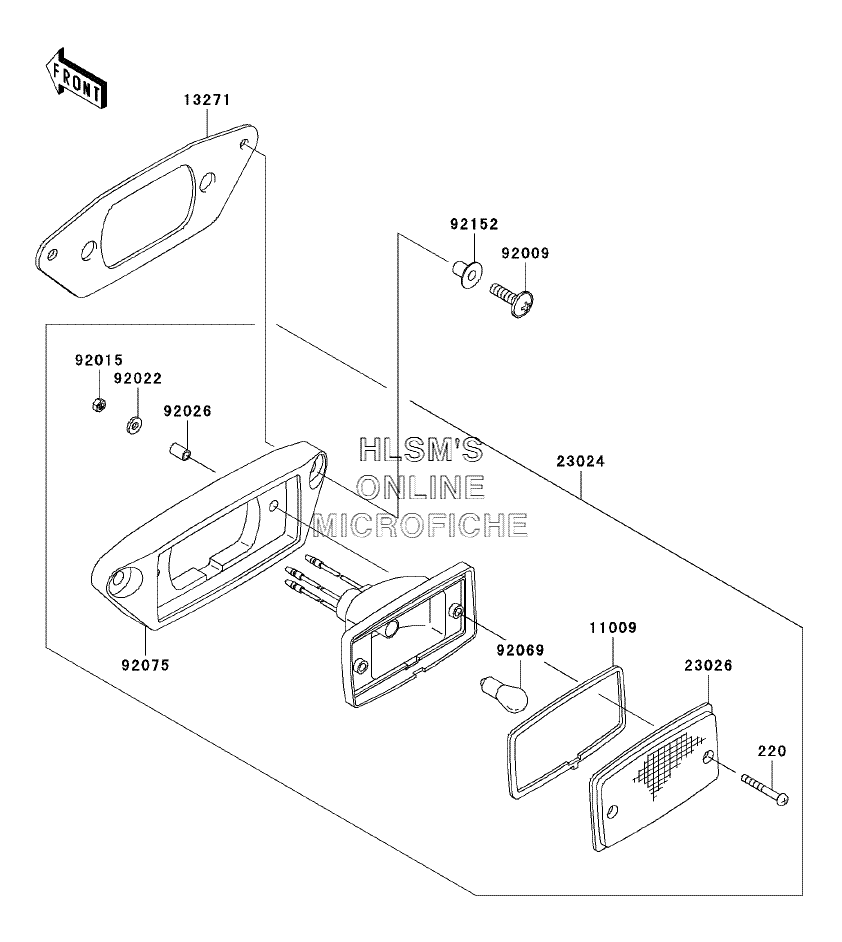

TAILLIGHT(S) (JKBVFHB1 3B503052~) для Kawasaki Prairie 360 (KVF360-B3) - 2005 года выпуска`
-
№АртикулНазвание
-
220220C0430 SCREW-PAN-CROSSCREW-PAN-CROS
-
1100911009-4004 GASKET, TAIL LAMPGASKET, TAIL LAMP
-
1327113271-0033 PLATE, TAIL LAMPPLATE, TAIL LAMP
-
2302423024-0001 LAMP-ASSY-TAILLAMP-ASSY-TAIL
-
2302623026-1239 LENS, TAIL LAMPLENS, TAIL LAMP
-
9200992009-1256 SCREW, 6X22, BLACKSCREW, 6X22, BLACK
-
9201592015-1550 NUT, 4MMNUT, 4MM
-
9202292022-1762 WASHER, PLAIN, 4MMWASHER, PLAIN, 4MM
-
9202692026-1261 SPACER, 4.5X6.5X10SPACER, 4.5X6.5X10
-
9206992069-1089 BULB, 12V 18/5WBULB, 12V 18/5W
-
9207592075-1782 DAMPER, TAIL LAMPDAMPER, TAIL LAMP
-
9215292152-0015 COLLARCOLLAR
