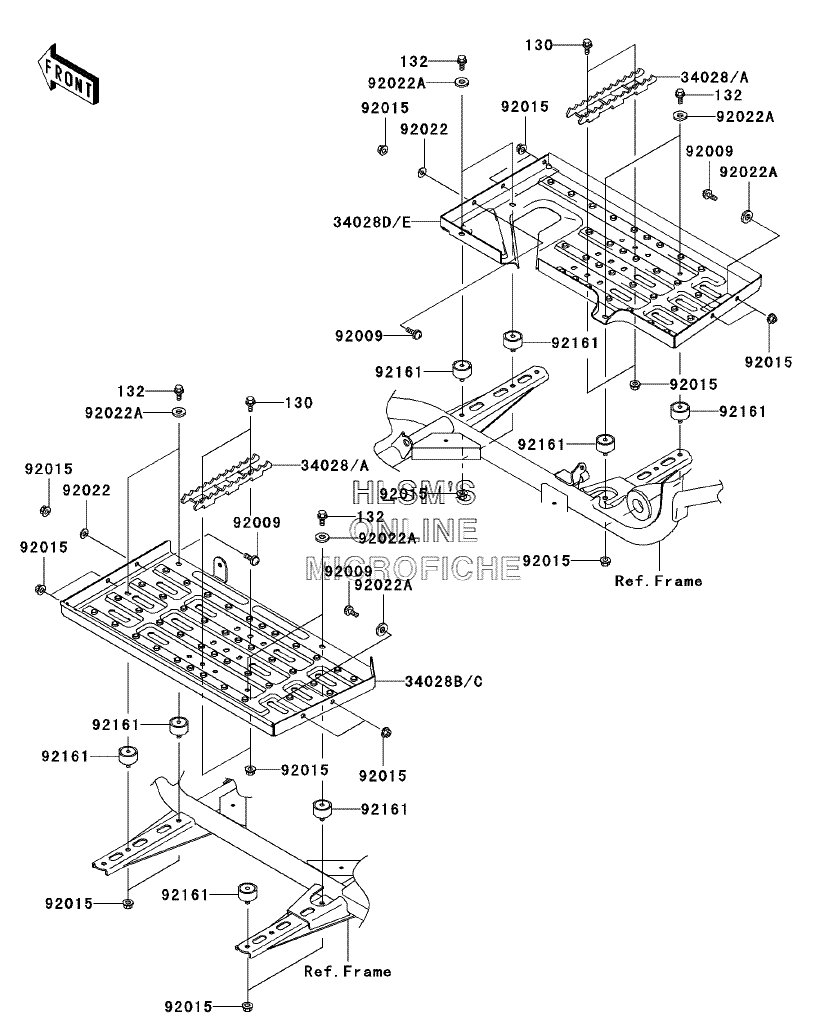

FOOTRESTS для Kawasaki Prairie 360 (KVF360-B3) - 2005 года выпуска
-
№АртикулНазвание
-
130130J0614 BOLT-FLANGED, 6X14BOLT-FLANGED, 6X14
-
132132J0610 BOLT-FLANGED-SMALL, 6X10BOLT-FLANGED-SMALL, 6X10
-
34028A34028-1487-10 STEP, FOOT PEG (BLACK)STEP, FOOT PEG (BLACK)
-
34028C34028-7511-10 STEP (LEFT/BLACK)STEP (LEFT/BLACK)
-
34028E34028-7512-10 STEP (RIGHT/BLACK)STEP (RIGHT/BLACK)
-
9200992009-1621 SCREW, 6X16SCREW, 6X16
-
9201592015-1367 NUT, FLANGED, 6MMNUT, FLANGED, 6MM
-
9202292022-1093 WASHER, 6.5X16X1.0WASHER, 6.5X16X1.0
-
92022A92022-1346 WASHER, 6.5X20X1.6WASHER, 6.5X20X1.6
-
9216192161-7505 DAMPER, FLOOR BOARDDAMPER, FLOOR BOARD
