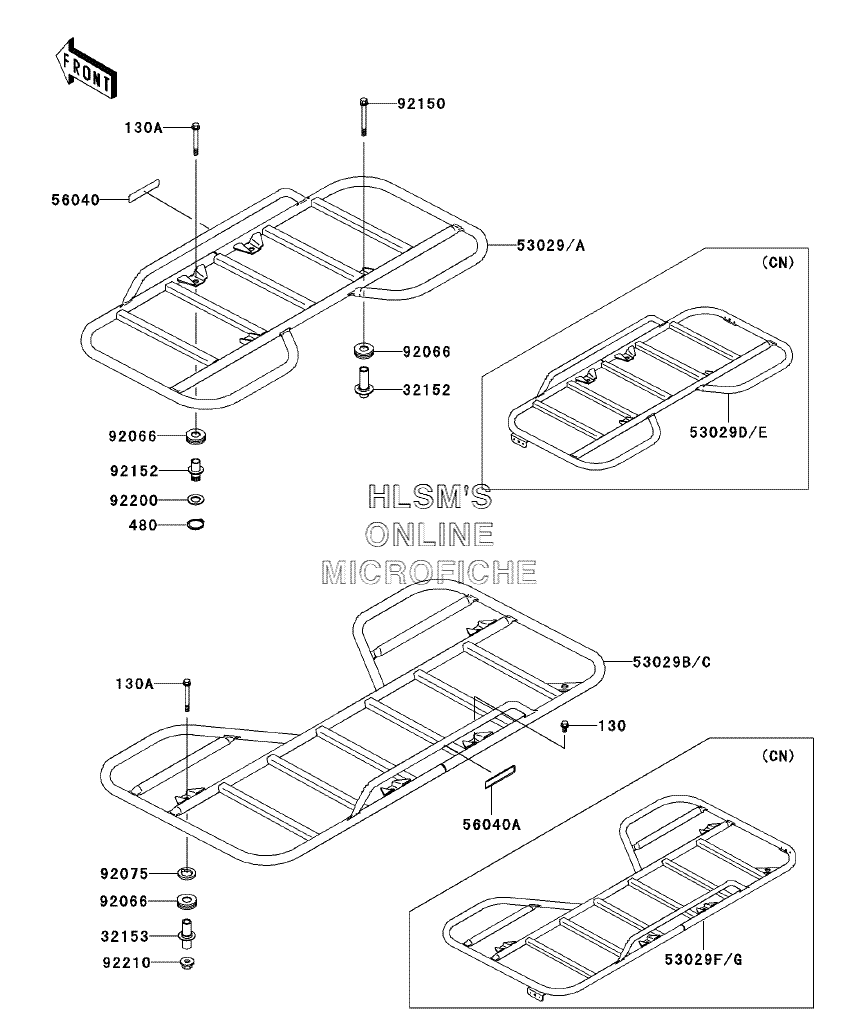

CARRIER(S) для Kawasaki Prairie 360 (KVF360-B3) - 2005 года выпуска

  • №
    Артикул
    Название
  • 130
    130S0814 BOLT-FLANGED, 8X14
    BOLT-FLANGED, 8X14
  • 130A
    130S0865 BOLT-FLANGED, 8X65
    BOLT-FLANGED, 8X65
  • 480
    480J1700 CIRCLIP-TYPE-C, 17MM
    CIRCLIP-TYPE-C, 17MM
  • 32152
    32152-1067 PIPE, FRONT CARRIER
    PIPE, FRONT CARRIER
  • 32153
    32153-7527 PIPE
    PIPE
  • 53029A
    53029-7501-379 CARRIER, FRONT (M.GRAYSTONE) (EXCEPT CALIF)
    CARRIER, FRONT (M.GRAYSTONE) (EXCEPT CALIF)
  • 53029C
    53029-7502-379 CARRIER, REAR (M.GRAYSTONE) (EXCEPT CALIF)
    CARRIER, REAR (M.GRAYSTONE) (EXCEPT CALIF)
  • 53029E
    53029-7503-379 CARRIER, FRONT (M.GRAYSTONE) (CANADA ONLY)
    CARRIER, FRONT (M.GRAYSTONE) (CANADA ONLY)
  • 53029G
    53029-7504-379 CARRIER, REAR (M.GRAYSTONE) (CANADA ONLY)
    CARRIER, REAR (M.GRAYSTONE) (CANADA ONLY)
  • 56040
    56040-1321 LABEL-WARNING, MAXIMUM LOAD
    LABEL-WARNING, MAXIMUM LOAD
  • 56040A
    56040-1322 LABEL-WARNING, MAXIMUM LOAD
    LABEL-WARNING, MAXIMUM LOAD
  • 92066
    92066-1438 PLUG
    PLUG
  • 92075
    92075-1842 DAMPER
    DAMPER
  • 92150
    92150-1808 BOLT, FLANGED, 8X80
    BOLT, FLANGED, 8X80
  • 92152
    92152-7504 COLLAR, L=42.5
    COLLAR, L=42.5
  • 92200
    92200-1043 WASHER, 18.5X32X2.3
    WASHER, 18.5X32X2.3
  • 92210
    92210-0005 NUT, FLANGED, LOCK, 8MM
    NUT, FLANGED, LOCK, 8MM
