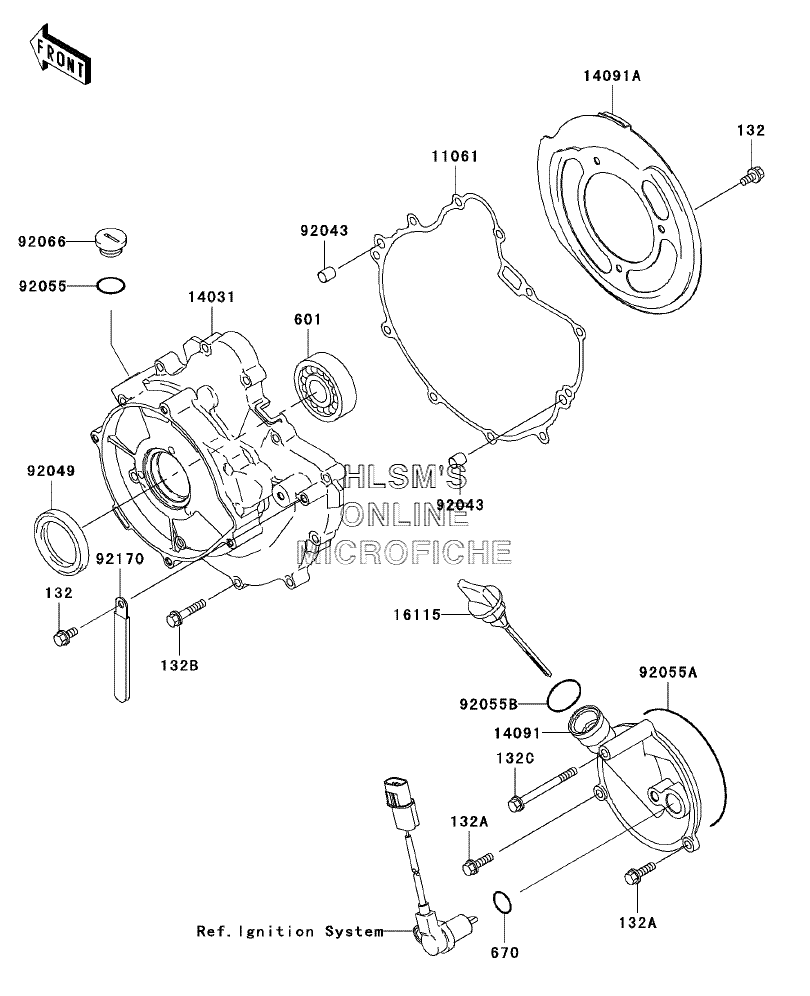

ENGINE COVER(S) для Kawasaki Prairie 360 (KVF360-B3) - 2005 года выпуска

  • №
    Артикул
    Название
  • 132
    132Y0612 BOLT-FLANGED-SMALL, 6X12
    BOLT-FLANGED-SMALL, 6X12
  • 132A
    132Y0620 BOLT-FLANGED-SMALL, 6X20
    BOLT-FLANGED-SMALL, 6X20
  • 132B
    132Y0630 BOLT-FLANGED-SMALL, 6X30
    BOLT-FLANGED-SMALL, 6X30
  • 132C
    132Y0665 BOLT-FLANGED-SMALL, 6X65
    BOLT-FLANGED-SMALL, 6X65
  • 601
    601A6004 BEARING-BALL, #6004
    BEARING-BALL, #6004
  • 670
    670D2018 O RING
    O RING
  • 11061
    11061-1086 GASKET, GENERATOR COVER
    GASKET, GENERATOR COVER
  • 14031
    14031-1389 COVER-GENERATOR
    COVER-GENERATOR
  • 14091
    14091-1365 COVER
    COVER
  • 14091A
    14091-1571 COVER, BELT CONVERTER
    COVER, BELT CONVERTER
  • 16115
    16115-1072 CAP-OIL FILLER
    CAP-OIL FILLER
  • 92043
    92043-1263 PIN, 6.2X8X14
    PIN, 6.2X8X14
  • 92049
    92049-1576 SEAL-OIL, HTC 28X45X7
    SEAL-OIL, HTC 28X45X7
  • 92055
    92055-1146 RING-O, 20X2
    RING-O, 20X2
  • 92055A
    92055-1632 RING-O, 99.5X2.0
    RING-O, 99.5X2.0
  • 92055B
    92055-2185 RING-O, 20X3
    RING-O, 20X3
  • 92066
    92066-1163 PLUG, COVER
    PLUG, COVER
  • 92170
    92170-1925 CLAMP
    CLAMP
