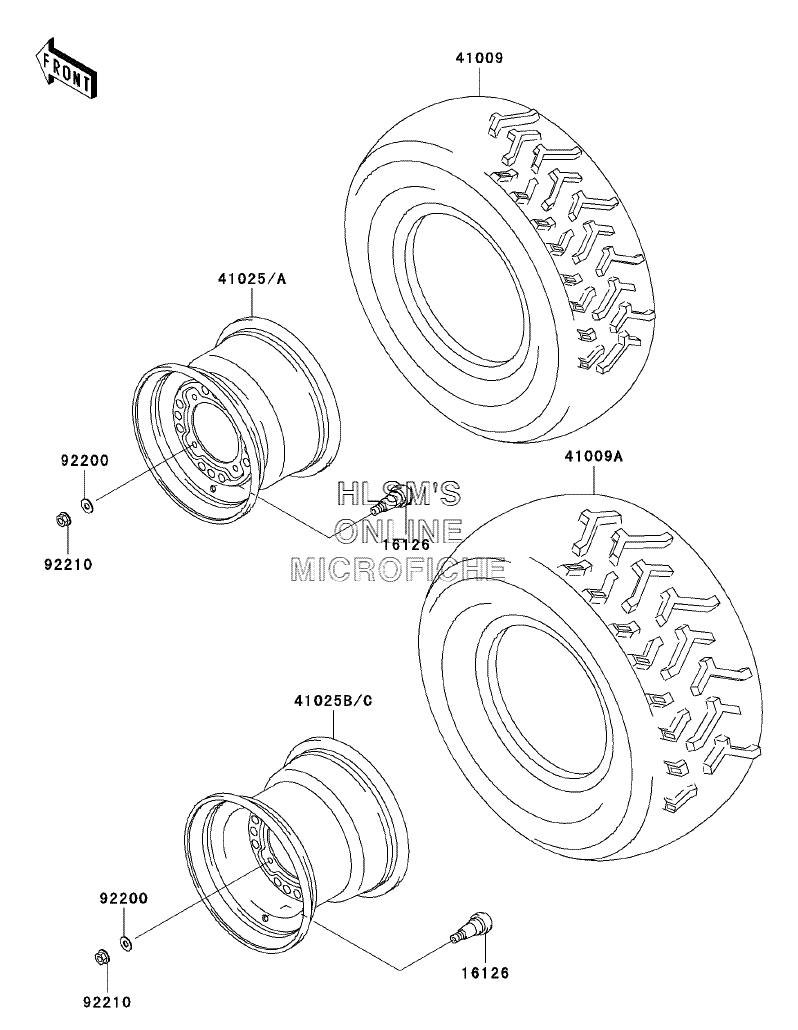

WHEELS/TIRES для Kawasaki Prairie 360 4x4 (KVF360-A1) - 2003 года выпуска
-
№АртикулНазвание
-
1612616126-4001 VALVEVALVE
-
4100941009-7501 TIRE, FRONT AT25X8-12, KT121TIRE, FRONT AT25X8-12, KT121
-
41009A41009-7503 TIRE, REAR AT25X10-12, KT405CTIRE, REAR AT25X10-12, KT405C
-
4102541025-1313-UF RIM, FRONT 12X6.0 (S.GOLD)RIM, FRONT 12X6.0 (S.GOLD)
-
41025B41025-7502-UF RIM, REAR 12X7.5AT (S.GOLD)RIM, REAR 12X7.5AT (S.GOLD)
-
9220092200-1595 WASHER, 10.5X25X1.6WASHER, 10.5X25X1.6
-
9221092210-1325 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
