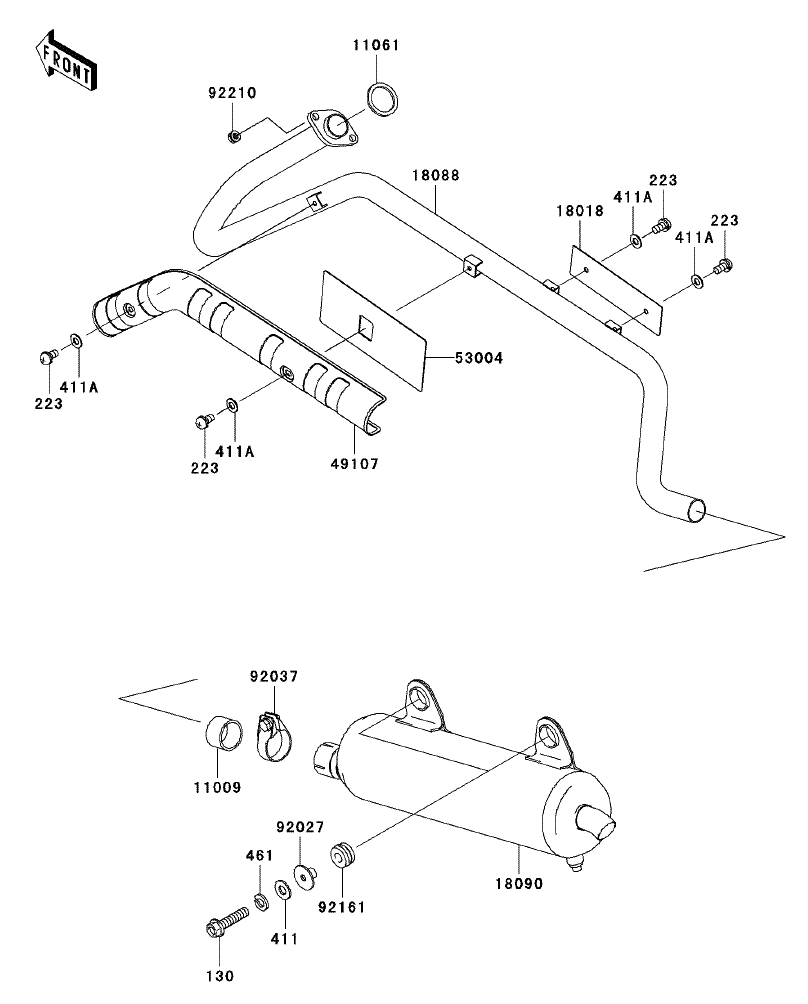

MUFFLER(S) для Kawasaki Prairie 360 4x4 (KVF360-A1) - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130Z0835 BOLT-FLANGED, 8X35
    BOLT-FLANGED, 8X35
  • 223
    223C0612 SCREW-PAN-WS-CROS, 6X12
    SCREW-PAN-WS-CROS, 6X12
  • 411
    411B0800 WASHER-PLAIN, 8MM
    WASHER-PLAIN, 8MM
  • 411A
    411F0600 WASHER-PLAIN, 6MM (BLACK)
    WASHER-PLAIN, 6MM (BLACK)
  • 461
    461F0800 WASHER-SPRING, 8MM
    WASHER-SPRING, 8MM
  • 11009
    11009-1667 GASKET, EXHAUST PIPE CONNECTING
    GASKET, EXHAUST PIPE CONNECTING
  • 11061
    11061-1053 GASKET, EXHAUST
    GASKET, EXHAUST
  • 18018
    18018-1135 PLATE-HEAT GUARD, EXHAUST PIPE
    PLATE-HEAT GUARD, EXHAUST PIPE
  • 18088
    18088-1215 PIPE-EXHAUST
    PIPE-EXHAUST
  • 18090
    18090-1954 BODY-COMP-MUFFLER
    BODY-COMP-MUFFLER
  • 49107
    49107-1222 COVER-EXHAUST PIPE
    COVER-EXHAUST PIPE
  • 53004
    53004-1181 MAT
    MAT
  • 92027
    92027-1981 COLLAR, MUFFLER
    COLLAR, MUFFLER
  • 92037
    92037-1349 CLAMP, 42MM
    CLAMP, 42MM
  • 92161
    92161-1292 DAMPER, MUFFLER
    DAMPER, MUFFLER
  • 92210
    92210-1242 NUT, 8MM
    NUT, 8MM
