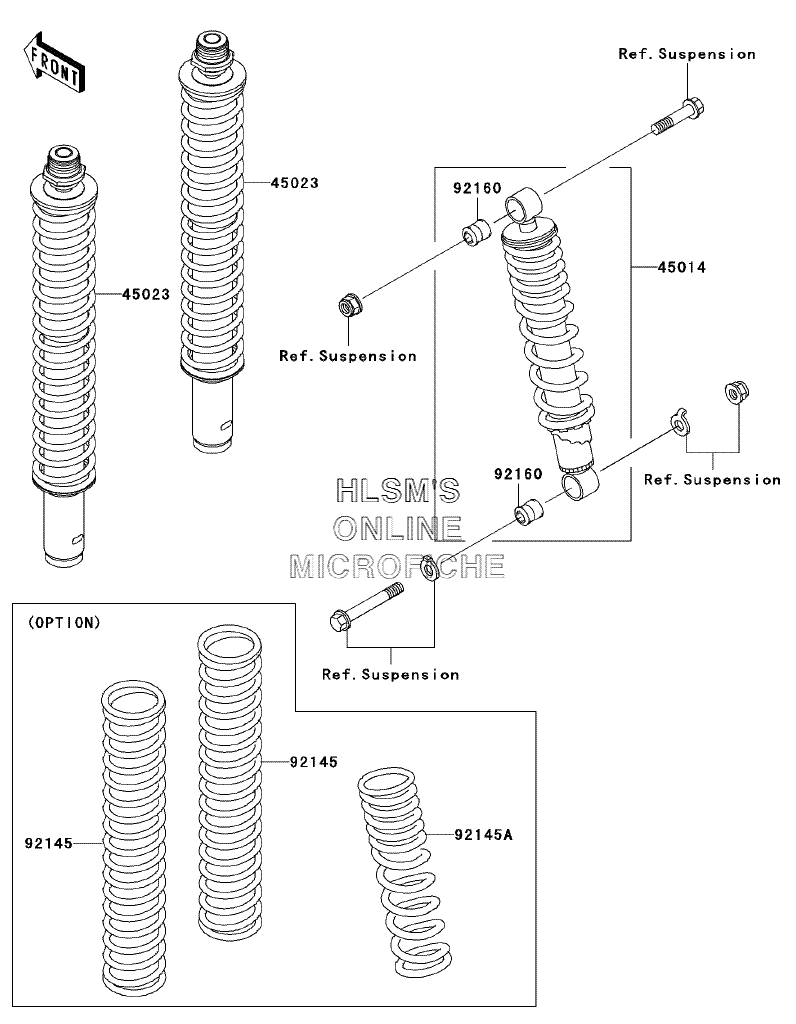

SUSPENSION - SHOCK ABSORBER для Kawasaki Prairie 360 4x4 (KVF360-A1) - 2003 года выпуска
-
№АртикулНазвание
-
4501445014-1838 SHOCKABSORBERSHOCKABSORBER
-
4502345023-7504 STRUTSTRUT
-
9214592145-1225 SPRING, STRUT, K=9.8N/MM (OPT)SPRING, STRUT, K=9.8N/MM (OPT)
-
92145A92145-1271 SPRING, SHOCK, K=22.6N/MM (OPT)SPRING, SHOCK, K=22.6N/MM (OPT)
-
9216092160-1777 DAMPER, SHOCKABSORBERDAMPER, SHOCKABSORBER
