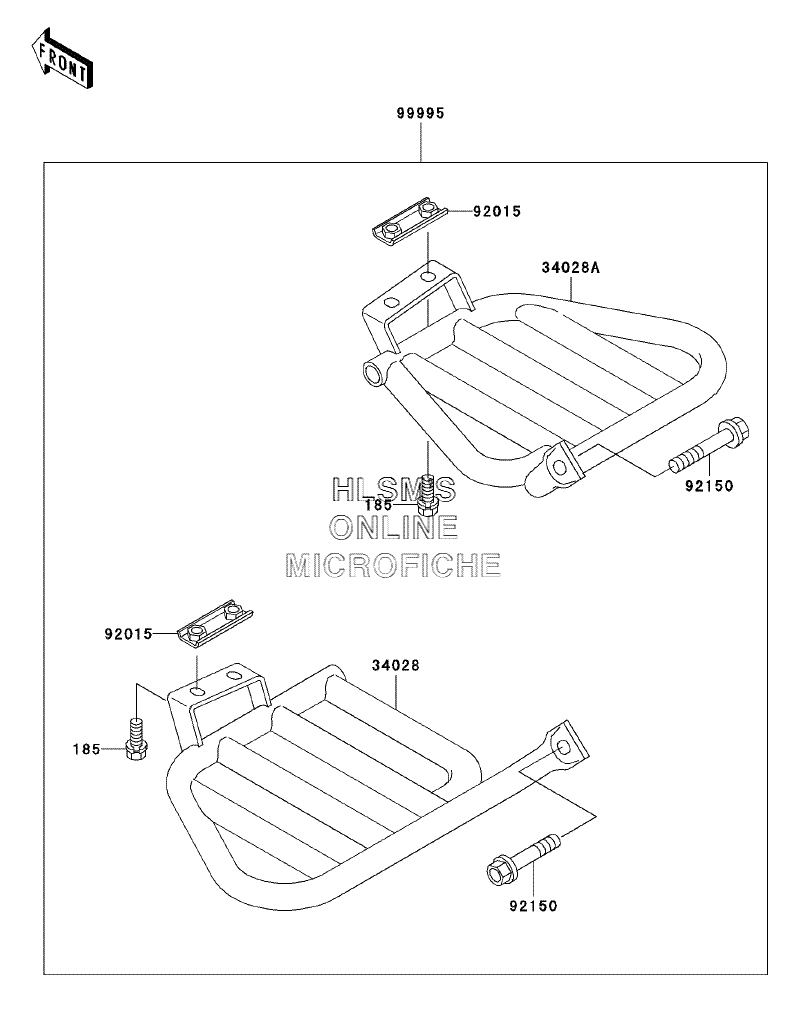

OPTIONAL PARTS (FOOTRESTS) для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска
-
№АртикулНазвание
-
185185C0820 BOLT-UPSET-WSP-SMALL,8X20BOLT-UPSET-WSP-SMALL,8X20
-
3402834028-1273 STEP,FOOT BOARD,LHSTEP,FOOT BOARD,LH
-
34028A34028-1274 STEP,FOOT BOARD,RHSTEP,FOOT BOARD,RH
-
9201592015-1732 NUTNUT
-
9215092150-1070 BOLT,FLANGED,10X52BOLT,FLANGED,10X52
-
9999599995-1020 KIT.,STEPKIT.,STEP
