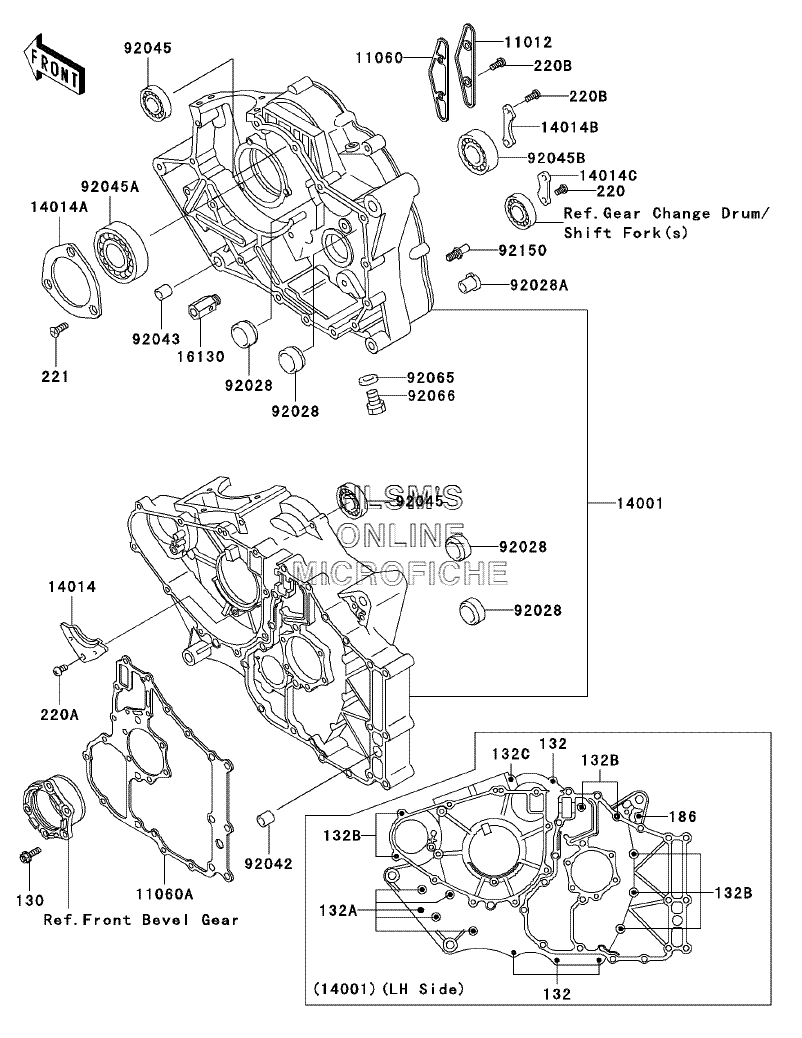

CRANKCASE для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска

  • №
    Артикул
    Название
  • 130
    130P0620 BOLT-FLANGED,6X20
    BOLT-FLANGED,6X20
  • 132
    132Y0635 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 132A
    132Y0655 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 132B
    132Y0665 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 132C
    132Y0685 BOLT-FLANGED-SMALL
    BOLT-FLANGED-SMALL
  • 186
    186D0614 BOLT-UPSET-WP
    BOLT-UPSET-WP
  • 220
    220B0610 SCREW-PAN-CROS,6X10
    SCREW-PAN-CROS,6X10
  • 220A
    220B0612 SCREW-PAN-CROS,6X12
    SCREW-PAN-CROS,6X12
  • 220B
    220B0614 SCREW-PAN-CROS,6X14
    SCREW-PAN-CROS,6X14
  • 221
    221B0616 SCREW-CSK-CROS,6X16
    SCREW-CSK-CROS,6X16
  • 11012
    11012-1643 CAP
    CAP
  • 11060
    11060-1713 GASKET,OIL LINE CAP
    GASKET,OIL LINE CAP
  • 11060A
    11060-1714 GASKET,GEAR CASE
    GASKET,GEAR CASE
  • 14001
    14001-5325 SET-CRANKCASE
    SET-CRANKCASE
  • 14014
    14014-035 PLATE-POSITION,CAM CHAIN
    PLATE-POSITION,CAM CHAIN
  • 14014A
    14014-1004 PLATE-POSITION,CRANK BEARING
    PLATE-POSITION,CRANK BEARING
  • 14014B
    14014-1069 PLATE-POSITION
    PLATE-POSITION
  • 14014C
    14014-1070 PLATE-POSITION,CHANGE DRUM
    PLATE-POSITION,CHANGE DRUM
  • 16130
    16130-1001 VALVE-ASSY-RELIEF
    VALVE-ASSY-RELIEF
  • 92028
    92028-132 BUSHING,23X30X13
    BUSHING,23X30X13
  • 92028A
    92028-1386 BUSHING
    BUSHING
  • 92042
    92042-031 PIN,DOWEL,12X14
    PIN,DOWEL,12X14
  • 92043
    92043-1279 PIN,11.5X14X14
    PIN,11.5X14X14
  • 92045
    92045-1118 BEARING-BALL,6004TMB
    BEARING-BALL,6004TMB
  • 92045A
    92045-1172 BEARING-BALL
    BEARING-BALL
  • 92045B
    92045-1173 BEARING-BALL
    BEARING-BALL
  • 92065
    92065-097 GASKET,12X22X2
    GASKET,12X22X2
  • 92066
    92066-1174 PLUG,OIL DRAIN,12X15
    PLUG,OIL DRAIN,12X15
  • 92150
    92150-1106 BOLT,RETURN SPRING
    BOLT,RETURN SPRING
