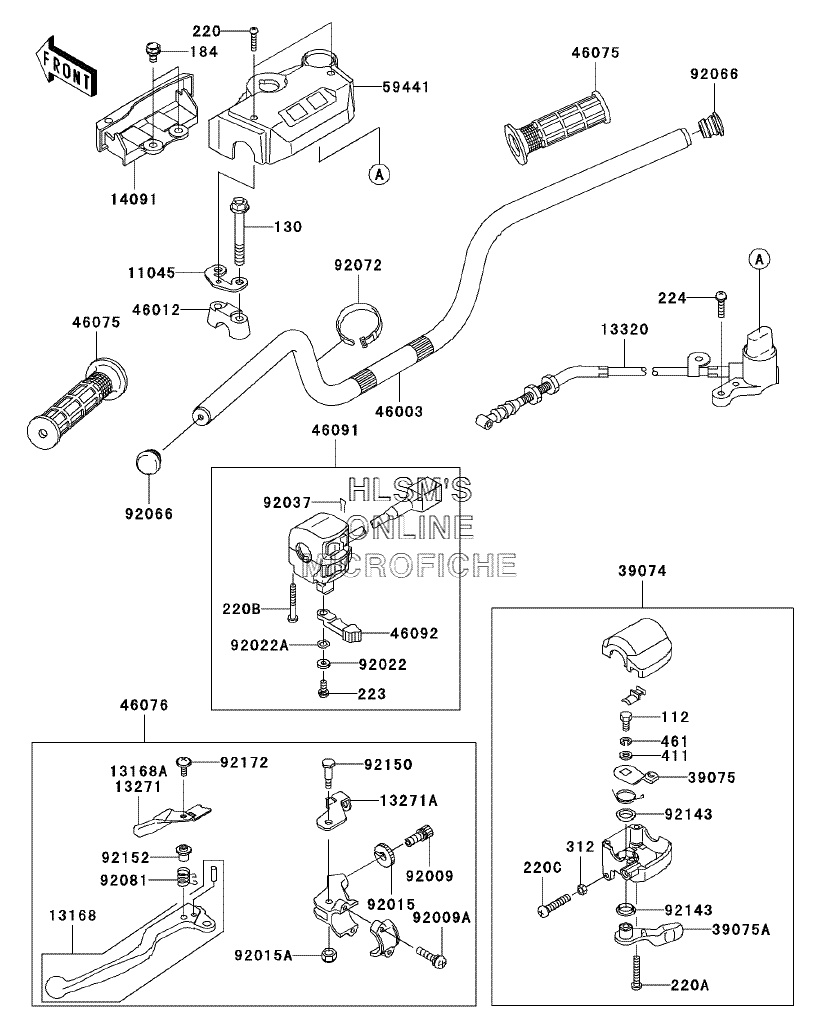

HANDLEBAR для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска
-
№АртикулНазвание
-
1104511045-1925 BRACKET,HANDLE COVERBRACKET,HANDLE COVER
-
1316813168-1672 LEVER,LHLEVER,LH
-
13168A13168-1673 LEVER,LOCKLEVER,LOCK
-
13271A13271-1259 PLATE,LOCKPLATE,LOCK
-
1332013320-1005 LEVER-ASSY,REVERSELEVER-ASSY,REVERSE
-
1409114091-1148 COVER,HANDLECOVER,HANDLE
-
3907439074-1055 LEVER-ASSY-THROTTLELEVER-ASSY-THROTTLE
-
3907539075-1054 LEVER-THROTTLE,ARMLEVER-THROTTLE,ARM
-
39075A39075-1059 LEVER-THROTTLELEVER-THROTTLE
-
4600346003-1570 HANDLEHANDLE
-
4601246012-1168 HOLDER-HANDLEHOLDER-HANDLE
-
4607546075-1056 GRIPGRIP
-
4607646076-1224 LEVER-ASSY-GRIP,LHLEVER-ASSY-GRIP,LH
-
4609146091-1462 HOUSING-ASSY-CONTROL,LHHOUSING-ASSY-CONTROL,LH
-
4609246092-1149 LEVER-GRIP,CHOKELEVER-GRIP,CHOKE
-
5944159441-1077 COVER-HANDLECOVER-HANDLE
-
9200992009-1435 SCREW,CABLE ADJUST,8MMSCREW,CABLE ADJUST,8MM
-
92009A92009-1841 SCREW,6X20SCREW,6X20
-
9201592015-1596 NUT,CABLE ADJUST LOCK,8MMNUT,CABLE ADJUST LOCK,8MM
-
92015A92015-1829 NUTNUT
-
9202292022-1837 WASHER,5MMWASHER,5MM
-
92022A92022-1838 WASHER,WAVE,5MMWASHER,WAVE,5MM
-
9203792037-1836 CLAMP,CLIPCLAMP,CLIP
-
9206692066-1550 PLUGPLUG
-
9207292072-031 BAND,L=149BAND,L=149
-
9208192081-1358 SPRING,LOCK RETURNSPRING,LOCK RETURN
-
9214392143-1138 COLLARCOLLAR
-
9215092150-1420 BOLTBOLT
-
9215292152-1176 COLLARCOLLAR
-
9217292172-0078 SCREW,5X20SCREW,5X20
-
112112D0614 BOLT-UPSETBOLT-UPSET
-
130130P0860 BOLT-FLANGEDBOLT-FLANGED
-
184184J0814 BOLT-UPSET-WP-SMALLBOLT-UPSET-WP-SMALL
-
220220C0420 SCREW-PAN-CROS,4X20SCREW-PAN-CROS,4X20
-
220A220C0530 SCREW-PAN-CROSSCREW-PAN-CROS
-
220B220C0535 SCREW-PAN-CROSSCREW-PAN-CROS
-
220C220F0630 SCREW-PAN-CROSSSCREW-PAN-CROSS
-
223223C0512 SCREW-PAN-WS-CROSSCREW-PAN-WS-CROS
-
224224B0520 SCREW-PAN-WP-CROS,5X20SCREW-PAN-WP-CROS,5X20
-
312312C0600 NUT-HEX,6MM,BLACKNUT-HEX,6MM,BLACK
-
411411E0600 WASHER-PLAIN,6MMWASHER-PLAIN,6MM
-
461461L0600 WASHER-SPRINGWASHER-SPRING
