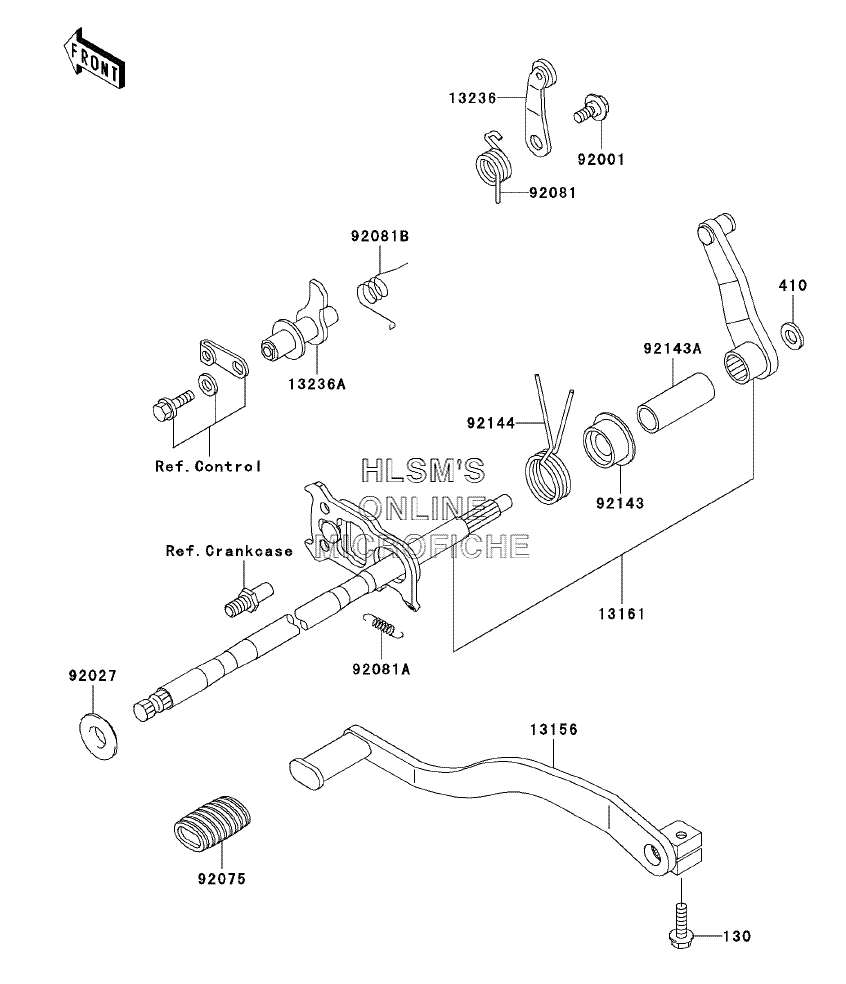

GEAR CHANGE MECHANISM для Kawasaki Bayou 300 4x4 (KLF300-C15) - 2003 года выпуска
-
№АртикулНазвание
-
130130S0620 BOLT-FLANGED,6X20,BLACKBOLT-FLANGED,6X20,BLACK
-
410410B0800 WASHER-PLAIN-SMALL,8MMWASHER-PLAIN-SMALL,8MM
-
1315613156-1248 LEVER-CHANGE,PEDALLEVER-CHANGE,PEDAL
-
1316113161-1236 LEVER-COMP-CHANGE SHAFTLEVER-COMP-CHANGE SHAFT
-
1323613236-1133 LEVER-COMP,CHANGE DRUMLEVER-COMP,CHANGE DRUM
-
13236A13236-1389 LEVER-COMP,REVERSELEVER-COMP,REVERSE
-
9200192001-1715 BOLT,GEAR CHANGE LEVERBOLT,GEAR CHANGE LEVER
-
9202792027-1891 COLLAR,L=5.2COLLAR,L=5.2
-
9207592075-1585 DAMPER,CHANGE PEDALDAMPER,CHANGE PEDAL
-
9208192081-1496 SPRINGSPRING
-
92081A92081-1753 SPRING,CHANGE LEVERSPRING,CHANGE LEVER
-
92081B92081-1850 SPRING,REVERSE LEVERSPRING,REVERSE LEVER
-
9214392143-1321 COLLARCOLLAR
-
92143A92143-1574 COLLAR,13.3X17.3X44.7COLLAR,13.3X17.3X44.7
-
9214492144-1359 SPRING,CHANGE SHAFT RETURNSPRING,CHANGE SHAFT RETURN
