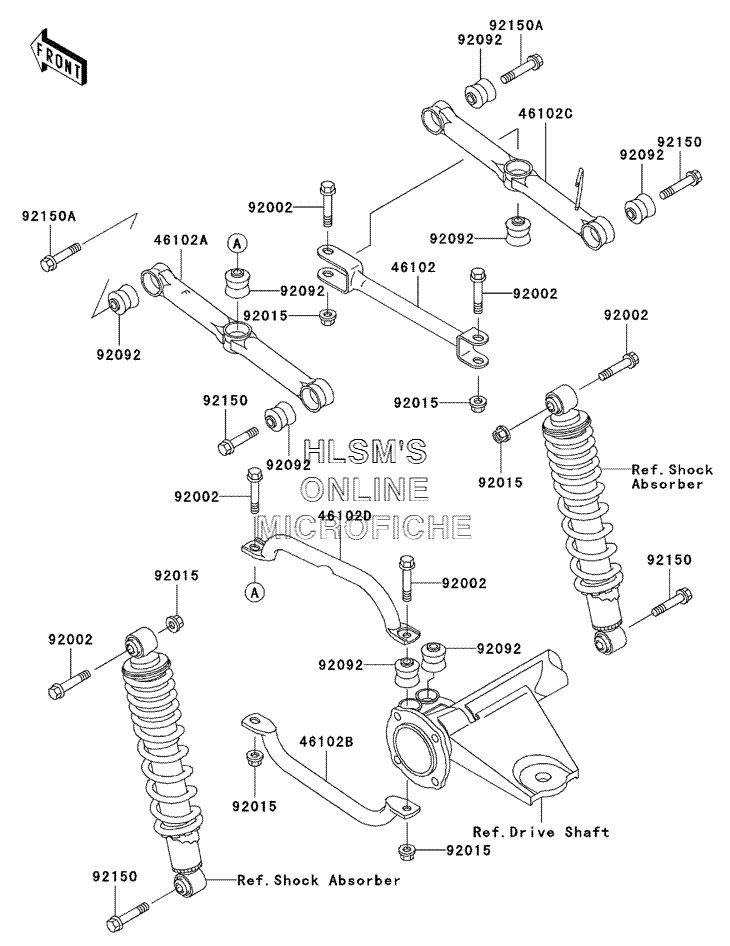

SUSPENSION - REAR для Kawasaki Bayou 300 4x4 (KLF300-C13) - 2001 года выпуска`
-
№АртикулНазвание
-
4610246102-1213 ROD, SUSPENSION, RIGHT CROSSROD, SUSPENSION, RIGHT CROSS
-
46102A46102-1241 ROD, SUSPENSION, REAR (LEFT/OUTSIDE)ROD, SUSPENSION, REAR (LEFT/OUTSIDE)
-
46102B46102-1242 ROD, SUSPENSION, REAR (LEFT/INSIDE)ROD, SUSPENSION, REAR (LEFT/INSIDE)
-
46102C46102-1243 ROD, SUSPENSION, REAR (RIGHT/OUTSIDE)ROD, SUSPENSION, REAR (RIGHT/OUTSIDE)
-
46102D46102-1330 ROD, SUSPENSION, LEFT CROSSROD, SUSPENSION, LEFT CROSS
-
9200292002-1529 BOLT, FLANGED, 10X53.5BOLT, FLANGED, 10X53.5
-
9201592015-1597 NUT, LOCK, 10MMNUT, LOCK, 10MM
-
9209292092-1064 BUSHING-RUBBERBUSHING-RUBBER
-
9215092150-1048 BOLT, FLANGED, 10X49BOLT, FLANGED, 10X49
-
92150A92150-1070 BOLT, FLANGED, 10X52BOLT, FLANGED, 10X52
Все узлы модели:
- AIR CLEANER
- BATTERY CASE
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER - FRONT
- BRAKE PEDAL
- CABLES
- CAMSHAFT(S)/TENSIONER
- CARBURETOR
- CARBURETOR (OPTIONAL) (CANADA ONLY)
- CARRIER(S)
- CHASSIS ELECTRICAL EQUIPMENT
- CLUTCH
- CONTROL
- CRANKCASE
- CRANKSHAFT
- CYLINDER HEAD
- CYLINDER/PISTON(S)
- DECALS (GREEN)
- DECALS (RED)
- DRIVE SHAFT (DIFFERENTIAL)
- DRIVE SHAFT (FRONT)
- DRIVE SHAFT (REAR)
- ENGINE COVER(S)
- FENDER - FRONT
- FENDER - REAR
- FOOTRESTS
- FRAME
- FRAME FITTINGS
- FRONT BEVEL GEAR
- FRONT HUB
- FUEL TANK
- GEAR CHANGE DRUM/SHIFT FORK(S)
- GEAR CHANGE MECHANISM
- GENERATOR
- GUARD(S)
- HANDLEBAR
- HEADLIGHT(S)
- IGNITION SWITCH
- IGNITION SYSTEM
- LABELS
- MUFFLER(S)
- OIL PUMP/OIL FILTER
- OPTIONAL PARTS (FOOTRESTS)
- OPTIONAL PARTS (HEADLIGHT)
- OPTIONAL PARTS (METER)
- OPTIONAL PARTS (RADIATOR) (US ONLY)
- OWNER'S TOOLS
- PUBLICATIONS
- RADIATOR (CANADA ONLY)
- REAR HUB
- REFLECTORS (CANADA ONLY)
- SEAT
- STARTER - RECOIL
- STARTER MOTOR
- SUSPENSION - FRONT
- • SUSPENSION - REAR
- SUSPENSION - SHOCK ABSORBER
- TAILLIGHT(S)
- TRANSMISSION
- VALVE(S)
- WHEELS/TIRES
