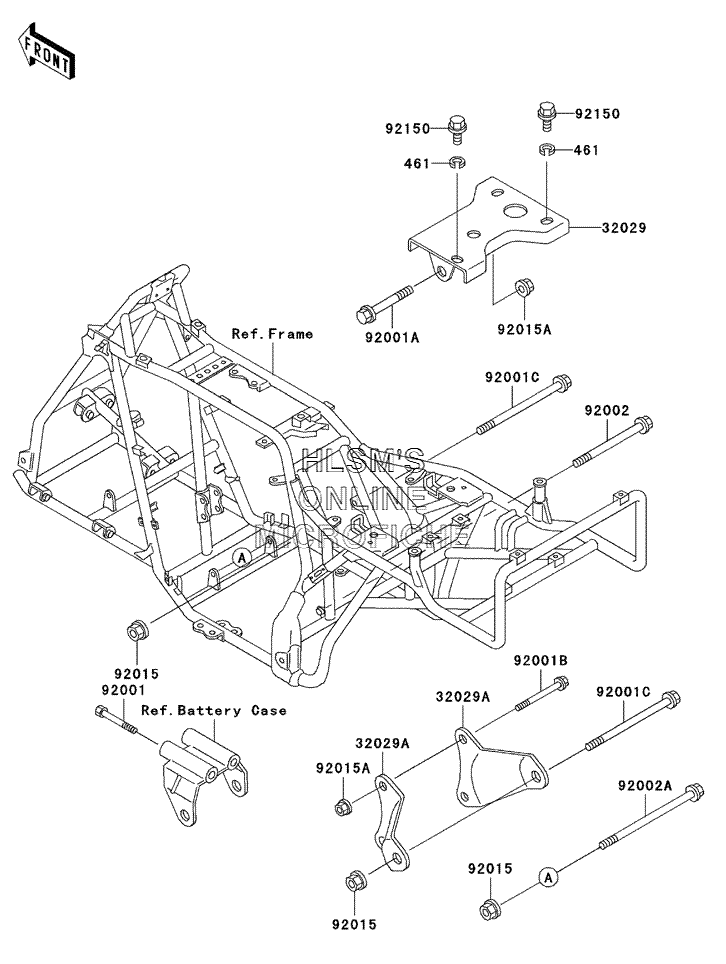

FRAME FITTINGS для Kawasaki Bayou 300 4x4 (KLF300-C13) - 2001 года выпуска
-
№АртикулНазвание
-
461461K0800 WASHER-SPRING, 8MM (BLACK)WASHER-SPRING, 8MM (BLACK)
-
3202932029-1569 BRACKET-ENGINE, TOPBRACKET-ENGINE, TOP
-
32029A32029-1614 BRACKET-ENGINE, FRBRACKET-ENGINE, FR
-
9200192001-1375 BOLT, 8X65BOLT, 8X65
-
92001A92001-1615 BOLT, FLANGED, 8X60 (BLACK)BOLT, FLANGED, 8X60 (BLACK)
-
92001B92001-1718 BOLT, FLANGED, 8X85BOLT, FLANGED, 8X85
-
92001C92001-1953 BOLT, FLANGED, 10X160 (BLACK)BOLT, FLANGED, 10X160 (BLACK)
-
9200292002-1087 BOLT, FLANGED, 10X130BOLT, FLANGED, 10X130
-
92002A92002-1546 BOLT, FLANGED, 10X180BOLT, FLANGED, 10X180
-
9201592015-1335 NUT, FLANGED, 10MMNUT, FLANGED, 10MM
-
92015A92015-1432 NUT, 8MMNUT, 8MM
-
9215092150-1066 BOLT, FLANGED, 8X14BOLT, FLANGED, 8X14
