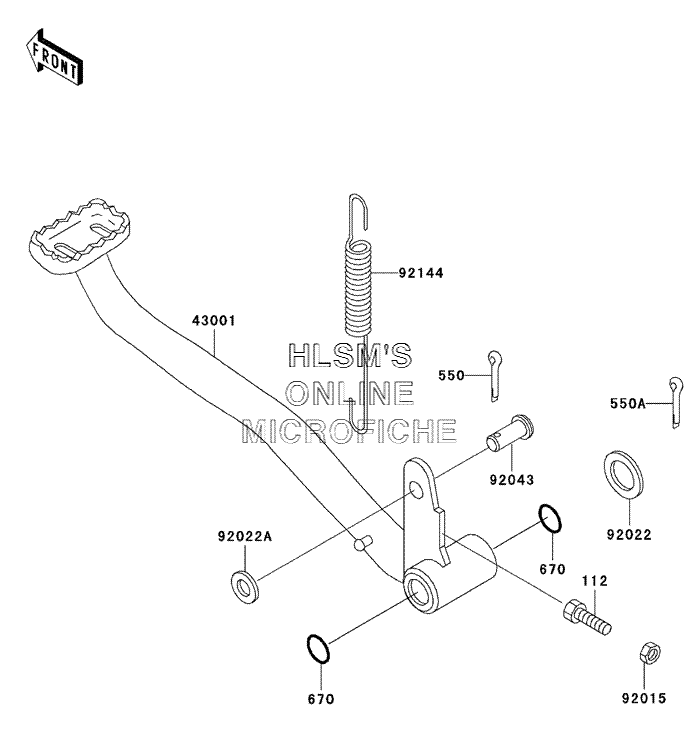

BRAKE PEDAL для Kawasaki Bayou 300 4x4 (KLF300-C13) - 2001 года выпуска
-
№АртикулНазвание
-
112112D0622 BOLT-UPSETBOLT-UPSET
-
550550D2015 PIN-COTTER, 2.0X15PIN-COTTER, 2.0X15
-
550A550D2525 PIN-COTTER, 2.5X25PIN-COTTER, 2.5X25
-
670670B2015 O RING, 15MMO RING, 15MM
-
4300143001-1253 LEVER-BRAKE, PEDALLEVER-BRAKE, PEDAL
-
9201592015-1410 NUT, 6MMNUT, 6MM
-
9202292022-1049 WASHER, 15.5X24X1.6WASHER, 15.5X24X1.6
-
92022A92022-1582 WASHER, 8.5X16X1.2WASHER, 8.5X16X1.2
-
9204392043-1013 PIN, 8X16PIN, 8X16
-
9214492144-1317 SPRING, BRAKE PEDAL RETURNSPRING, BRAKE PEDAL RETURN
