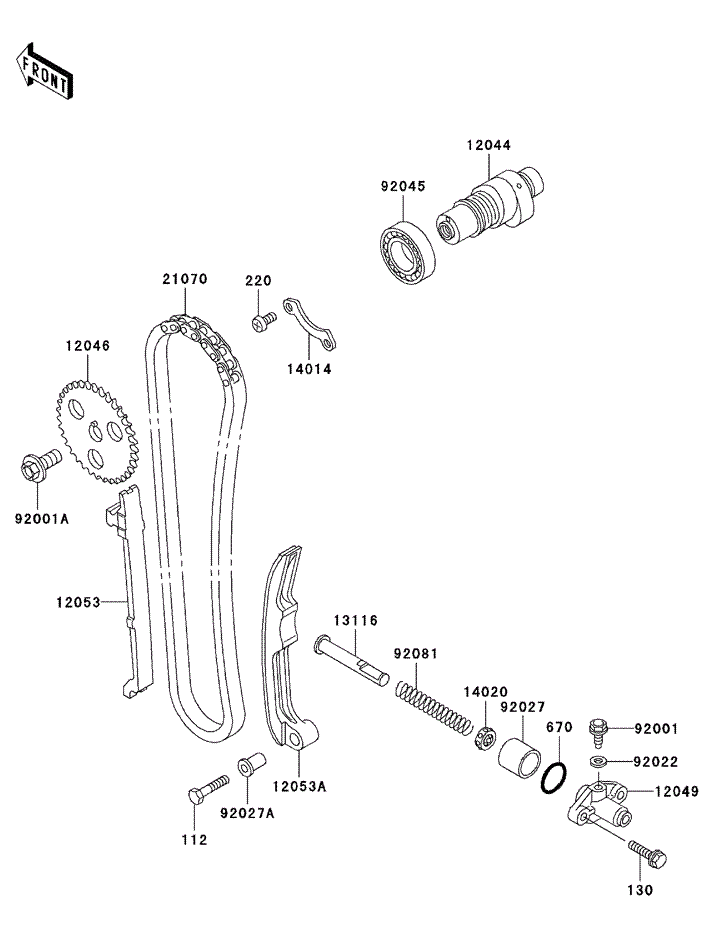

CAMSHAFT(S)/TENSIONER для Kawasaki Bayou 300 4x4 (KLF300-C13) - 2001 года выпуска

  • №
    Артикул
    Название
  • 112
    112G0630 BOLT-UPSET
    BOLT-UPSET
  • 130
    130Y0625 BOLT-FLANGED
    BOLT-FLANGED
  • 220
    220B0610 SCREW-PAN-CROS, 6X10
    SCREW-PAN-CROS, 6X10
  • 670
    670B2021 O RING, 21MM
    O RING, 21MM
  • 12044
    12044-1339 CAMSHAFT-VALVE
    CAMSHAFT-VALVE
  • 12046
    12046-1037 SPROCKET, CAM CHAIN (32 TEETH)
    SPROCKET, CAM CHAIN (32 TEETH)
  • 12049
    12049-1055 TENSIONER, CAM CHAIN
    TENSIONER, CAM CHAIN
  • 12053
    12053-023 GUIDE-CHAIN, CAM
    GUIDE-CHAIN, CAM
  • 12053A
    12053-024 GUIDE-CHAIN, CAM
    GUIDE-CHAIN, CAM
  • 13116
    13116-1019 ROD-PUSH, TENSIONER
    ROD-PUSH, TENSIONER
  • 14014
    14014-1030 PLATE-POSITION
    PLATE-POSITION
  • 14020
    14020-1054 RETAINER, TENSIONER
    RETAINER, TENSIONER
  • 21070
    21070-013 CHAIN, CAMSHAFT, BF05TX90L
    CHAIN, CAMSHAFT, BF05TX90L
  • 92001
    92001-1155 BOLT, TENSIONER ADJUST
    BOLT, TENSIONER ADJUST
  • 92001A
    92001-1859 BOLT, 10X23
    BOLT, 10X23
  • 92022
    92022-077 WASHER, 6.1X12X1
    WASHER, 6.1X12X1
  • 92027
    92027-1273 COLLAR, TENSIONER
    COLLAR, TENSIONER
  • 92027A
    92027-155 COLLAR, L=17.6
    COLLAR, L=17.6
  • 92045
    92045-1056 BEARING-BALL, #6005C4
    BEARING-BALL, #6005C4
  • 92081
    92081-1105 SPRING, TENSIONER
    SPRING, TENSIONER
