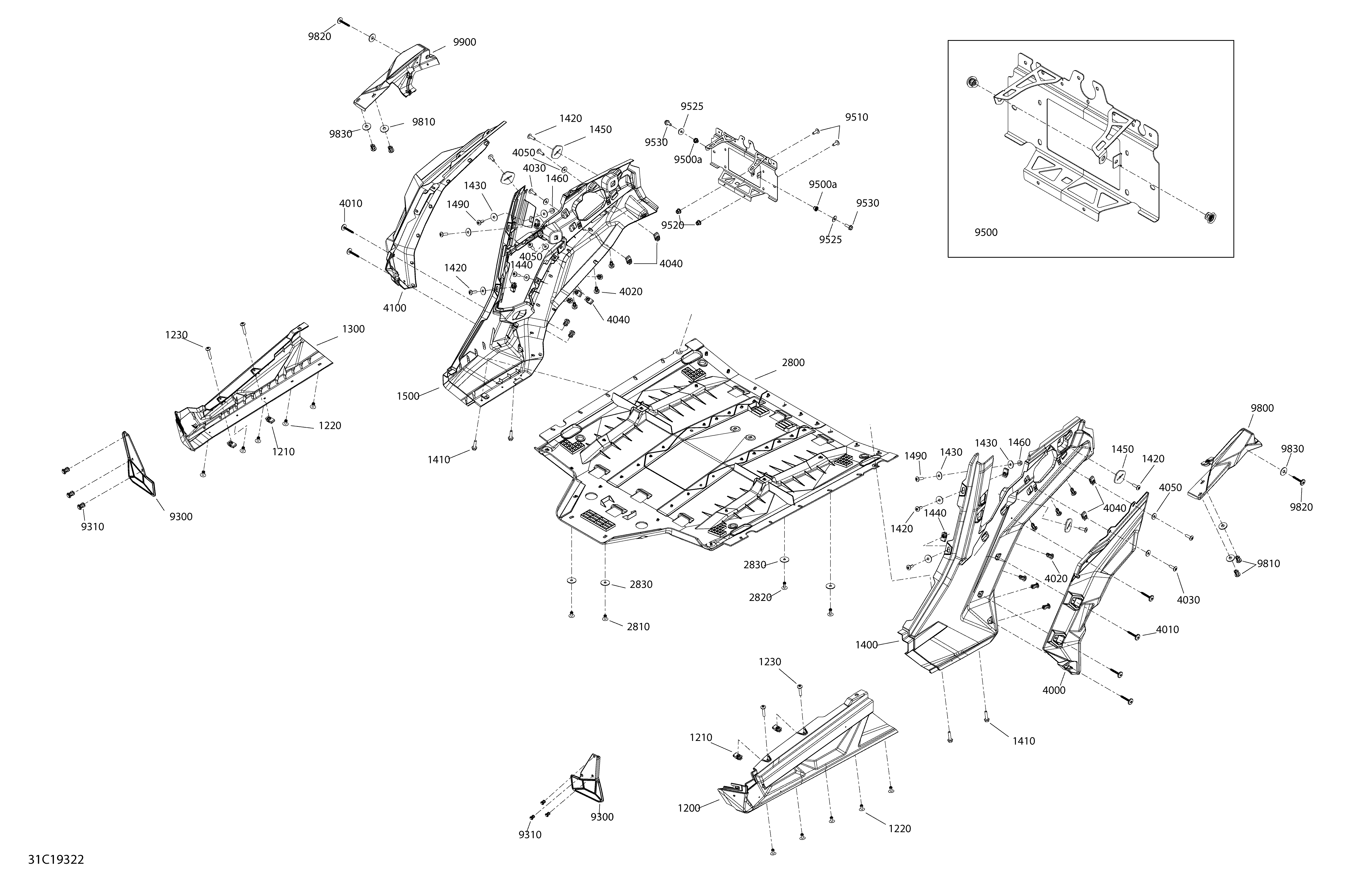

09- Body Maverick Trail - 800 - Red - Middle Section для BRP 001 - Maverick Trail 800 - BASE/DPS - T2B Series - 2019

  • №
    Артикул
    Название
  • 1200
    705011331 LH Rocker Panel
    LH Rocker Panel
  • 1210
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 1220
    293150108 Pop Rivet 3/16”
    Pop Rivet 3/16”
  • 1230
    250000867 Torx-truss M6 X 35
    Torx-truss M6 X 35
  • 1300
    705011332 RH Rocker Panel
    RH Rocker Panel
  • 1400
    705011335 LH Rear Pannel
    LH Rear Pannel
  • 1410
    207662054 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 1420
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 1430
    250200162 Flat Washer M6.6 X 22
    Flat Washer M6.6 X 22
  • 1440
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 1450
    705003841 Support Plate
    Support Plate
  • 1460
    233161464 Hex. Elastic Flange Nut M6
    Hex. Elastic Flange Nut M6
  • 1490
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 1500
    705011336 RH Rear Pannel
    RH Rear Pannel
  • 2800
    705011427 Front Skid Plate
    Front Skid Plate
  • 2810
    293150087 Pop Rivet 3/16”
    Pop Rivet 3/16”
  • 2820
    293150087 Pop Rivet 3/16”
    Pop Rivet 3/16”
  • 2830
    224060251 Washer
    Washer
  • 4000
    705012097 LH Rear Mud Guard
    LH Rear Mud Guard
  • 4010
    250000840 Torx-Screw Truss Head PT.K50 X 40
    Torx-Screw Truss Head PT.K50 X 40
  • 4020
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 4030
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 4040
    250000957 Extruded Panel Nut M6
    Extruded Panel Nut M6
  • 4050
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 4100
    705012098 RH Rear 60'' Mud Guard Extension
    RH Rear 60'' Mud Guard Extension
  • 9300
    705012793 Front Mud Flap Model T
    Front Mud Flap Model T
  • 9310
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 9500
    705013731 Licence Plate Support Ass'y. Includes 9500 to 9500a
    Licence Plate Support Ass'y. Includes 9500 to 9500a
  • 9500a
    250100199 Insert Half Hex Body M6 x 1.0
    Insert Half Hex Body M6 x 1.0
  • 9510
    250000721 Torx Screw
    Torx Screw
  • 9520
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 9525
    234062670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 9530
    207661654 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 9800
    705012799 LH Rear Flasher Support Model T
    LH Rear Flasher Support Model T
  • 9810
    293150230 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 9820
    250000840 Torx-Screw Truss Head PT.K50 X 40
    Torx-Screw Truss Head PT.K50 X 40
  • 9830
    234082670 Flat Washer, Stainless
    Flat Washer, Stainless
  • 9900
    705012800 RH Rear Flasher Support Model T
    RH Rear Flasher Support Model T
  • 10000
    250000717 Torx Head Screw M6 X 16. Non Shown
    Torx Head Screw M6 X 16. Non Shown
