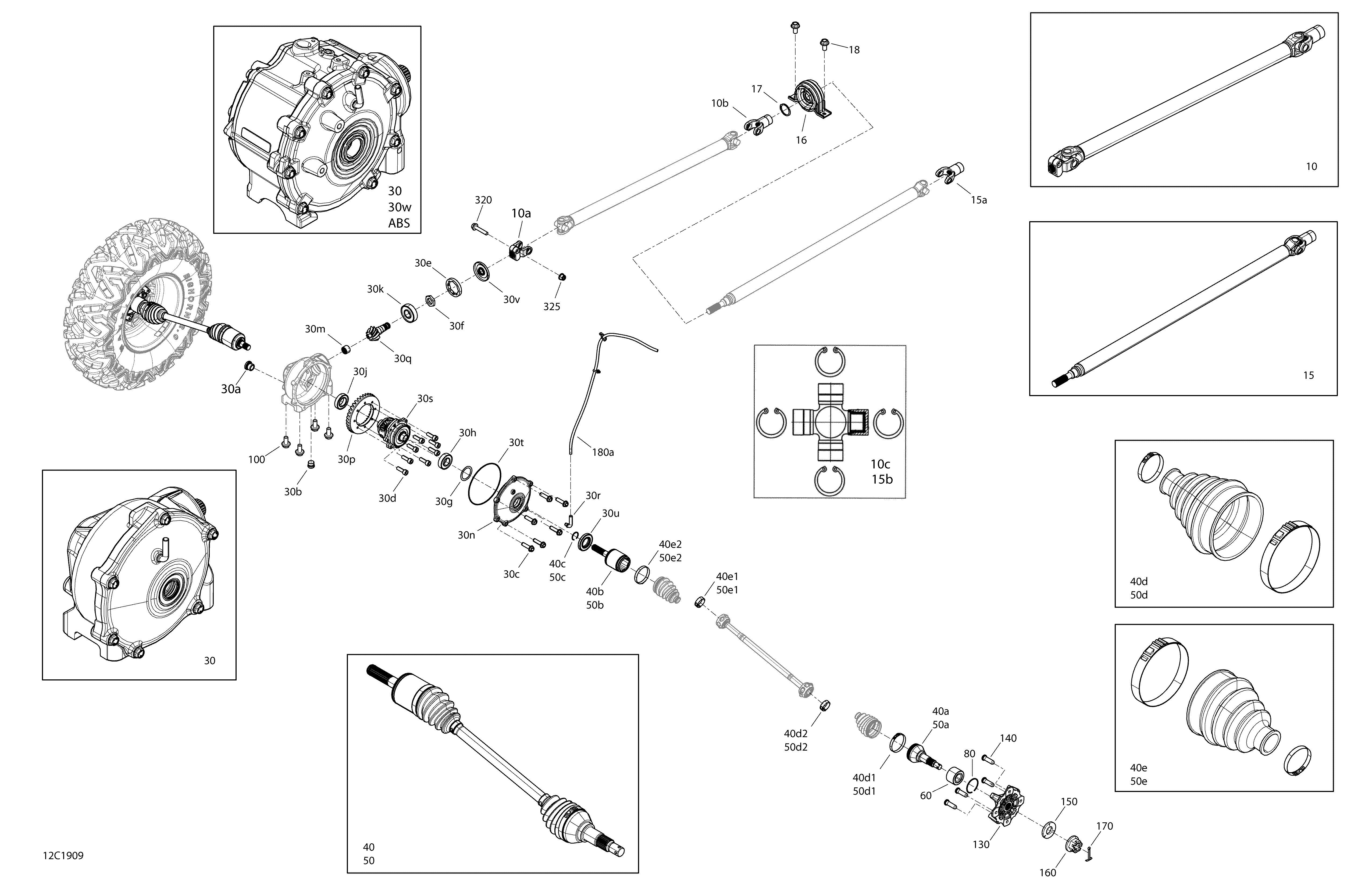

07- Front Drive - Package BASE для BRP 001 - Maverick Trail 800 - BASE/DPS - T2B Series - 2019

  • №
    Артикул
    Название
  • 10
    705402005 Drive Shaft Ass'y. Includes 10 to 10c
    Drive Shaft Ass'y. Includes 10 to 10c
  • 10
    705402444 Drive Shaft Ass'y. With ABS
    Drive Shaft Ass'y. With ABS
  • 10a
    715900400 Fixed Yoke
    Fixed Yoke
  • 10b
    715900401 Yoke
    Yoke
  • 10c
    715900402 J-Joint Cross Kit
    J-Joint Cross Kit
  • 15
    705402006 Drive Shaft Ass'y. Includes 15 to 15b
    Drive Shaft Ass'y. Includes 15 to 15b
  • 15a
    715900401 Yoke
    Yoke
  • 15b
    715900402 J-Joint Cross Kit
    J-Joint Cross Kit
  • 16
    705401938 Bearing
    Bearing
  • 17
    293370098 Snap Ring
    Snap Ring
  • 18
    207502046 Hex. Flanged Screw M10 X 20
    Hex. Flanged Screw M10 X 20
  • 30
    705402373 Front Differential Ass'y. White Model. Includes 30 to 30v
    Front Differential Ass'y. White Model. Includes 30 to 30v
  • 30
    705402372 Front Differential Ass.. Includes 30 to 30v
    Front Differential Ass.. Includes 30 to 30v
  • 30
    705402565 Front Differential Assembly. Red Model. Includes 30 to 30w
    Front Differential Assembly. Red Model. Includes 30 to 30w
  • 30a
    705501889 Fill Level Plug
    Fill Level Plug
  • 30b
    705501885 Drain Plug
    Drain Plug
  • 30c
    705501886 Screw
    Screw
  • 30d
    705402375 Screw
    Screw
  • 30e
    705401819 Nut M75 X 1.5
    Nut M75 X 1.5
  • 30f
    705401820 Nut M27 X 1.5
    Nut M27 X 1.5
  • 30g
    705401604 Shim
    Shim
  • 30h
    705401934 Ball Bearing
    Ball Bearing
  • 30j
    705401606 Ball Bearing
    Ball Bearing
  • 30k
    705401821 Ball Bearing
    Ball Bearing
  • 30m
    705401607 Needle Bearing
    Needle Bearing
  • 30n
    705401667 Front Cover
    Front Cover
  • 30p
    705401822 36Th Gear
    36Th Gear
  • 30q
    705401933 Pinion 10 th.
    Pinion 10 th.
  • 30r
    705401935 Vent Valve
    Vent Valve
  • 30s
    705402377 Differential. White Model
    Differential. White Model
  • 30s
    705402376 Differential
    Differential
  • 30t
    705501881 Oil Seal iDIA 6.737 oDIA 6.943
    Oil Seal iDIA 6.737 oDIA 6.943
  • 30u
    705401836 Oil Seal
    Oil Seal
  • 30v
    705401827 Oil Seal, Triple Lip 25 X 79 X 8
    Oil Seal, Triple Lip 25 X 79 X 8
  • 30w
    715900643 Midle Case
    Midle Case
  • 40
    705402007 RH Half Shaft. Includes 40 to 40e2
    RH Half Shaft. Includes 40 to 40e2
  • 40
    705402442 Front Half Shaft. With ABS. Includes 40 to 40f
    Front Half Shaft. With ABS. Includes 40 to 40f
  • 40a
    715900440 CV Joint
    CV Joint
  • 40a
    715900619 CV Joint. With ABS
    CV Joint. With ABS
  • 40b
    715900441 Plunging Joint RH
    Plunging Joint RH
  • 40c
    705401349 Circlip Joint
    Circlip Joint
  • 40c
    715900569 Circlip. With ABS
    Circlip. With ABS
  • 40d
    705401345 Boot Kit, Wheel Side. Includes 40d to 40d2
    Boot Kit, Wheel Side. Includes 40d to 40d2
  • 40d
    705401354 Boot Kit, Wheel Side. With ABS
    Boot Kit, Wheel Side. With ABS
  • 40d1
    715900282 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 40d1
    715900260 Oetiker Clamp, Large. With ABS
    Oetiker Clamp, Large. With ABS
  • 40d2
    715900283 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 40d2
    715900261 Oetiker Clamp, Small. With ABS
    Oetiker Clamp, Small. With ABS
  • 40e
    705401355 Boot Kit, Differential Side. Includes 40e to 40e2
    Boot Kit, Differential Side. Includes 40e to 40e2
  • 40e1
    715900261 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 40e2
    715900262 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 40f
    715900580 O-ring. With ABS
    O-ring. With ABS
  • 50
    705402008 LH Half Shaft. Includes 50 to 50e2
    LH Half Shaft. Includes 50 to 50e2
  • 50
    705402442 Front Half Shaft. With ABS. Includes 50 to 50f
    Front Half Shaft. With ABS. Includes 50 to 50f
  • 50a
    715900440 CV Joint
    CV Joint
  • 50a
    715900619 CV Joint. With ABS
    CV Joint. With ABS
  • 50b
    715900442 Plunging Joint LH
    Plunging Joint LH
  • 50c
    705401349 Circlip Joint
    Circlip Joint
  • 50c
    715900569 Circlip. With ABS
    Circlip. With ABS
  • 50d
    705401345 Boot Kit, Wheel Side. Includes 50d to 50d2
    Boot Kit, Wheel Side. Includes 50d to 50d2
  • 50d
    705401354 Boot Kit, Wheel Side. With ABS
    Boot Kit, Wheel Side. With ABS
  • 50d1
    715900282 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 50d1
    715900260 Oetiker Clamp, Large. With ABS
    Oetiker Clamp, Large. With ABS
  • 50d2
    715900283 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 50d2
    715900261 Oetiker Clamp, Small. With ABS
    Oetiker Clamp, Small. With ABS
  • 50e
    705401355 Boot Kit, Differential Side. Includes 50e to 50e2
    Boot Kit, Differential Side. Includes 50e to 50e2
  • 50e1
    715900261 Oetiker Clamp, Small
    Oetiker Clamp, Small
  • 50e2
    715900262 Oetiker Clamp, Large
    Oetiker Clamp, Large
  • 50f
    715900580 O-ring. With ABS
    O-ring. With ABS
  • 60
    293350118 Cone Bearing
    Cone Bearing
  • 80
    293370019 Circlip
    Circlip
  • 100
    207502046 Hex. Flanged Screw M10 X 20
    Hex. Flanged Screw M10 X 20
  • 130
    705502338 Wheel Hub
    Wheel Hub
  • 140
    250300055 Wheel Stud M10 X 1.25
    Wheel Stud M10 X 1.25
  • 150
    250200170 Conical Spring Washer M20
    Conical Spring Washer M20
  • 160
    250100193 Castle Nut M20
    Castle Nut M20
  • 170
    250400084 Cotter Pin
    Cotter Pin
  • 180a
    293830193 Polyurethane Hose
    Polyurethane Hose
  • 320
    250001050 Hex. Flanged Screw M8 X 42
    Hex. Flanged Screw M8 X 42
  • 325
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
