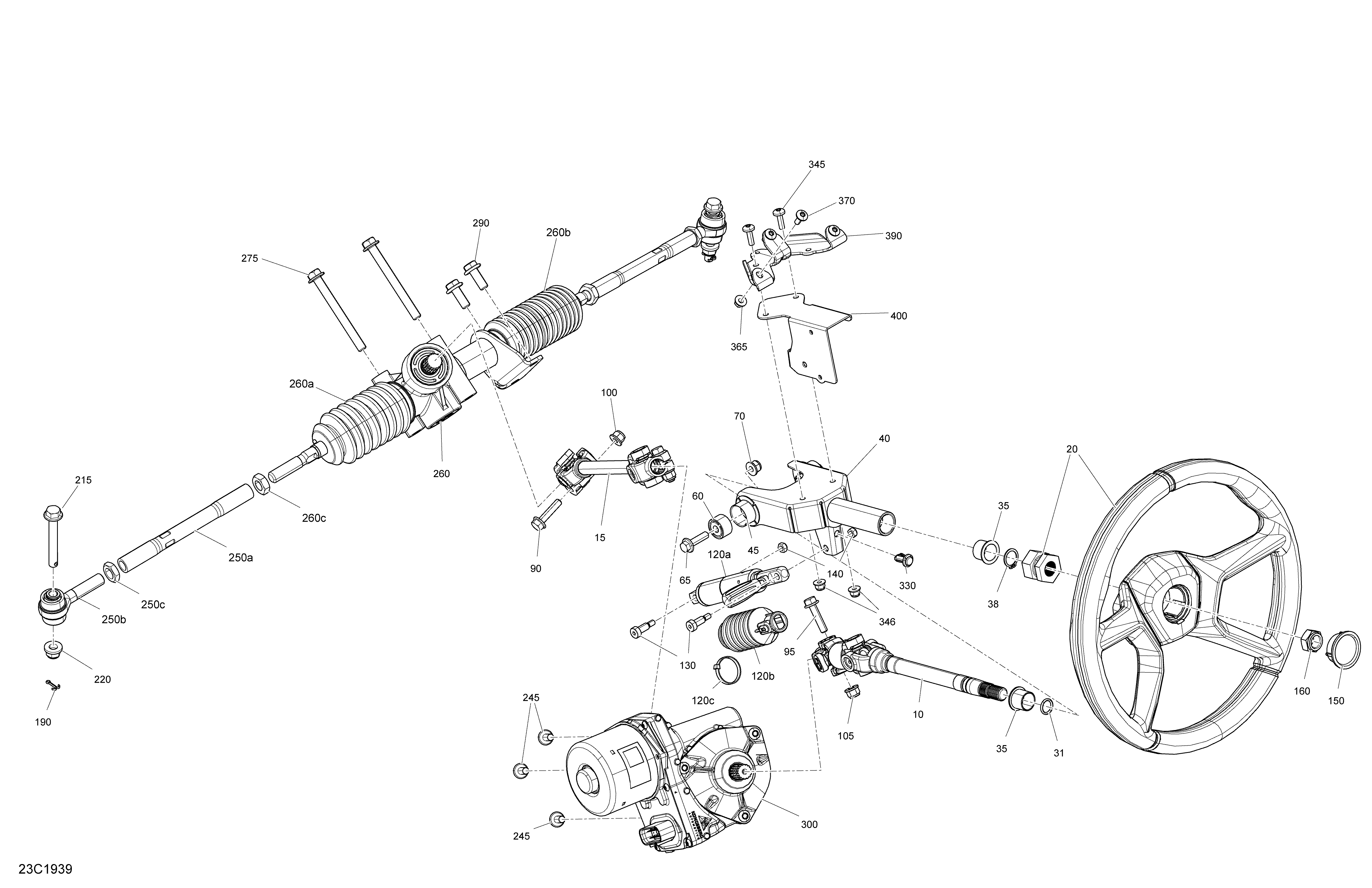

07- Steering - Package DPS для BRP 001 - Maverick Trail 800 - BASE/DPS - T2B Series - 2019

  • №
    Артикул
    Название
  • 10
    709402127 Upper DPS Shaft Ass'y. <>P-BASE
    Upper DPS Shaft Ass'y. <>P-BASE
  • 15
    709401988 Lower Dps Shaft Ass'y. <>P-BASE
    Lower Dps Shaft Ass'y. <>P-BASE
  • 20
    709401966 Steering Wheel
    Steering Wheel
  • 31
    293300144 O-Ring
    O-Ring
  • 35
    709401733 Bushing
    Bushing
  • 38
    293370110 Circlip
    Circlip
  • 40
    709401602 Steering Support
    Steering Support
  • 45
    709401603 Bushing
    Bushing
  • 60
    709401604 Bushing
    Bushing
  • 65
    207683044 Hex. Flanged Screw M8 X 30
    Hex. Flanged Screw M8 X 30
  • 70
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 90
    250001021 Flanged Hex. Screw M8 X 35
    Flanged Hex. Screw M8 X 35
  • 95
    250001021 Flanged Hex. Screw M8 X 35. <>P-BASE
    Flanged Hex. Screw M8 X 35. <>P-BASE
  • 100
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 105
    233281416 Hex. Elastic Flanged Nut M8. <>P-BASE
    Hex. Elastic Flanged Nut M8. <>P-BASE
  • 120a
    709400656 Adjustment Cylinder
    Adjustment Cylinder
  • 120b
    709401232 Boot Kit, Tube Side
    Boot Kit, Tube Side
  • 120c
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 130
    250000669 Socket Head Screw M8 X 16
    Socket Head Screw M8 X 16
  • 140
    232561434 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 150
    709401514 Steering Cap
    Steering Cap
  • 160
    232511414 Elastic Lock Nut M16
    Elastic Lock Nut M16
  • 190
    211400017 Cotter Pin
    Cotter Pin
  • 215
    250000814 Screw Hex Cap M10 X 75
    Screw Hex Cap M10 X 75
  • 220
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 245
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip. <>P-BASE
    Hex. Flanged Screw M8 X 20, Scotch Grip. <>P-BASE
  • 250a
    709401990 Connection Rod
    Connection Rod
  • 250B
    709401991 Ball Joint
    Ball Joint
  • 250c
    715900238 Steering Rode Nut
    Steering Rode Nut
  • 260
    709402289 Rack & Pinion Ass'y. W50
    Rack & Pinion Ass'y. W50
  • 260a
    715900235 Boot Kit, Pinion Side
    Boot Kit, Pinion Side
  • 260b
    715900236 Boot Kit, Tube Side
    Boot Kit, Tube Side
  • 260c
    715900238 Steering Rode Nut
    Steering Rode Nut
  • 275
    230500046 Hex. Screw M10 X 100, Scotch Grip
    Hex. Screw M10 X 100, Scotch Grip
  • 290
    207502546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 300
    709402322 Power Steering Ass'y. P-DPS&ABS
    Power Steering Ass'y. P-DPS&ABS
  • 330
    293150230 Tuflok Plastic Rivet. TREG
    Tuflok Plastic Rivet. TREG
  • 345
    250000712 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 346
    233261414 Hex. Flanged Elastic Nut M6 x 1.0
    Hex. Flanged Elastic Nut M6 x 1.0
  • 365
    233161464 Hex. Elastic Flange Nut M6. TREG
    Hex. Elastic Flange Nut M6. TREG
  • 370
    250000721 Torx Truss Screw M6 X 16. TREG
    Torx Truss Screw M6 X 16. TREG
  • 390
    707900737 Cluster Meter Support. TREG
    Cluster Meter Support. TREG
  • 400
    709402187 Flasher ArmSupport. TREG
    Flasher ArmSupport. TREG
