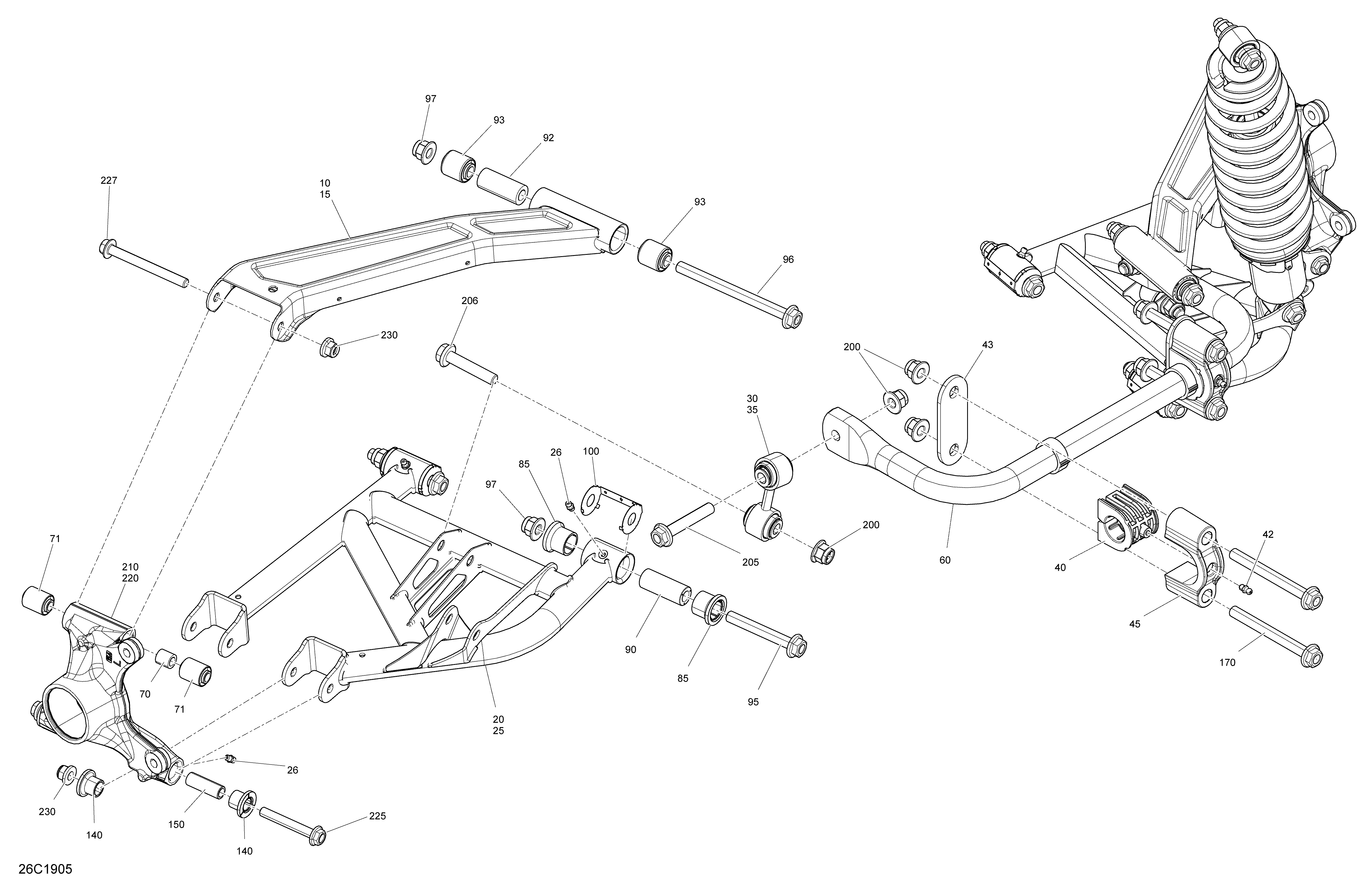

08- Rear Suspension для BRP 001 - Maverick Trail 800 - BASE/DPS - T2B Series - 2019

  • №
    Артикул
    Название
  • 10
    715006129 Black LH Rear Upper Susp Arm Ass'y. Incl 92,93
    Black LH Rear Upper Susp Arm Ass'y. Incl 92,93
  • 15
    715006130 Black RH Rear Upper Susp Arm Ass'y. Incl 92,93
    Black RH Rear Upper Susp Arm Ass'y. Incl 92,93
  • 20
    706003316 LH Lower Suspension Arm
    LH Lower Suspension Arm
  • 25
    706003317 RH Lower Suspension Arm
    RH Lower Suspension Arm
  • 26
    408200700 Grease Fitting
    Grease Fitting
  • 30
    706003004 Swaybar Double Link
    Swaybar Double Link
  • 35
    706003003 Swaybar Double Link
    Swaybar Double Link
  • 40
    706002971 Cushion
    Cushion
  • 42
    408200700 Grease Fitting
    Grease Fitting
  • 43
    706002977 Plate Support
    Plate Support
  • 45
    706002970 Clamp
    Clamp
  • 60
    706002716 Sway Bar Ass'y
    Sway Bar Ass'y
  • 85
    706201659 Cushion
    Cushion
  • 90
    706202257 Interior Bushing
    Interior Bushing
  • 95
    250000859 Screw Flange M12 X 85
    Screw Flange M12 X 85
  • 96
    250000861 Screw Flange M12 X 145
    Screw Flange M12 X 145
  • 97
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 100
    706202300 Wear Plate
    Wear Plate
  • 140
    703500875 Bushing Kit
    Bushing Kit
  • 150
    703500875 Bushing Kit
    Bushing Kit
  • 170
    250000860 Screw Flange M12 X 115
    Screw Flange M12 X 115
  • 200
    233221466 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 205
    250000858 Hexagonal Flanged Screw M12 X 70
    Hexagonal Flanged Screw M12 X 70
  • 206
    250000857 Screw Flange M12 X 60
    Screw Flange M12 X 60
  • 210
    715006137 LH Rear Knuckle Ass'y. Incl 70, 71
    LH Rear Knuckle Ass'y. Incl 70, 71
  • 220
    715006138 RH Rear Knuckle Ass'y. Incl 70, 71
    RH Rear Knuckle Ass'y. Incl 70, 71
  • 225
    207607046 Hex. Flanged Screw M10 X 70
    Hex. Flanged Screw M10 X 70
  • 227
    230600046 Screw-Hex.Flange DIN.6921
    Screw-Hex.Flange DIN.6921
  • 230
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
