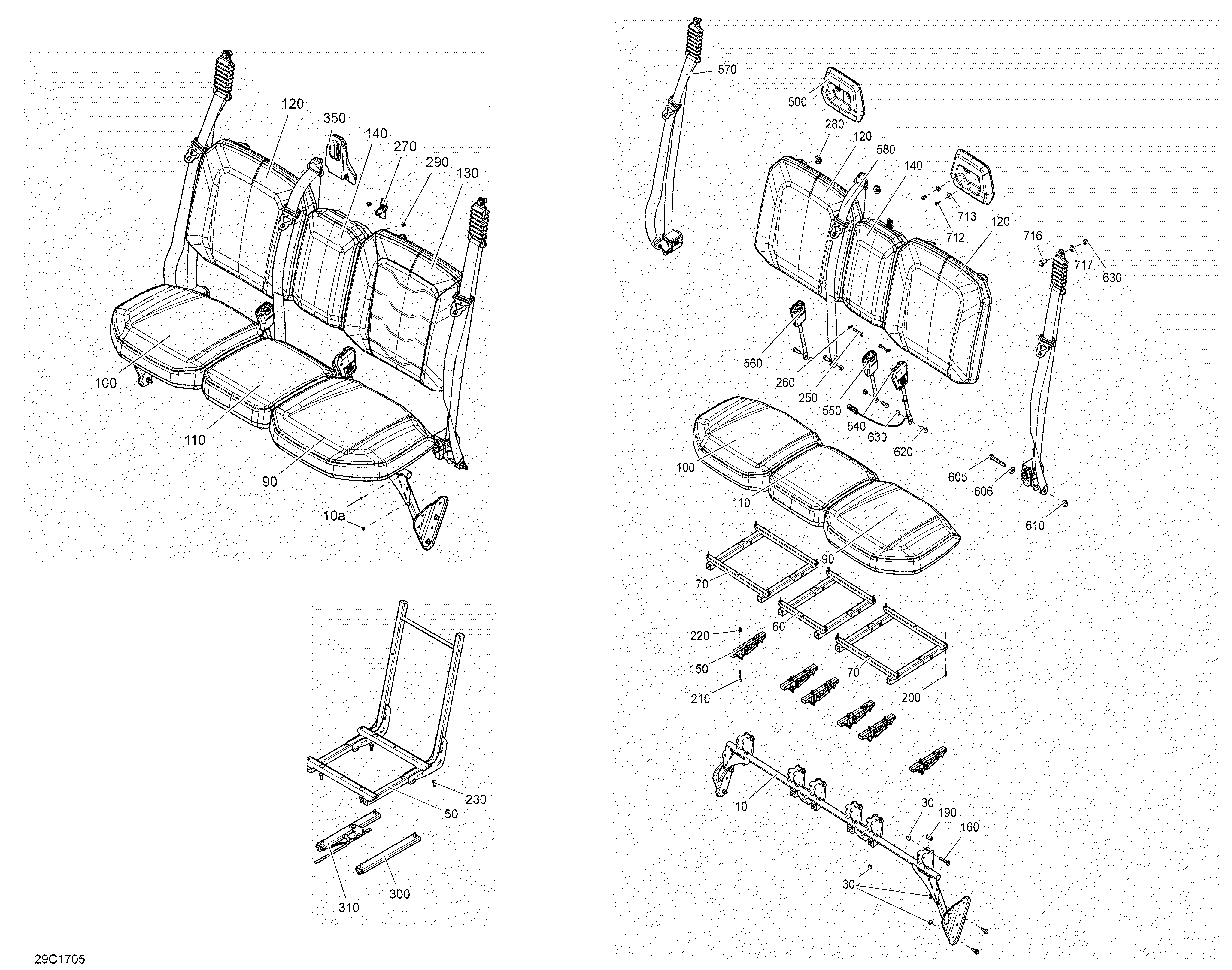

09- Seat - All Models для BRP Traxter MAX - 2017

  • №
    Артикул
    Название
  • 10
    708001688 Seat Support. Package XT. Includes 10 to 10a
    Seat Support. Package XT. Includes 10 to 10a
  • 10
    708001904 Seat Support. Package DPS. Includes 10 to 10a
    Seat Support. Package DPS. Includes 10 to 10a
  • 10
    708001904 Seat Support. Includes 10 to 10a
    Seat Support. Includes 10 to 10a
  • 10a
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 30
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 50
    708001723 Operator Seat Member. Package XT. Includes 50 to 50a
    Operator Seat Member. Package XT. Includes 50 to 50a
  • 50a
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 60
    708001895 Center Seat Member
    Center Seat Member
  • 70
    708001899 Seat Member. Package DPS
    Seat Member. Package DPS
  • 70
    708001899 Seat Member. Package XT
    Seat Member. Package XT
  • 90
    708002544 LH Cushion Ass'y. Package DPS
    LH Cushion Ass'y. Package DPS
  • 90
    708002545 LH Cushion Ass'y. Package XT
    LH Cushion Ass'y. Package XT
  • 100
    708001498 RH Cushion Ass'y. Package DPS
    RH Cushion Ass'y. Package DPS
  • 100
    708001926 RH Cushion Ass'y. Package XT
    RH Cushion Ass'y. Package XT
  • 110
    708001629 Central Cushion Ass'y. Package DPS
    Central Cushion Ass'y. Package DPS
  • 110
    708001928 Central Cushion Ass'y. Package XT
    Central Cushion Ass'y. Package XT
  • 120
    708001701 Backrest Ass'y. Package DPS
    Backrest Ass'y. Package DPS
  • 120
    708001995 Backrest Ass'y. Package XT, Fixed seat
    Backrest Ass'y. Package XT, Fixed seat
  • 130
    708001930 Backrest Ass'y. Package XT, Sliding Seat. Includes 130 and 290
    Backrest Ass'y. Package XT, Sliding Seat. Includes 130 and 290
  • 140
    708001630 Center Backrest Ass'y. Package DPS
    Center Backrest Ass'y. Package DPS
  • 140
    708001932 Center Backrest Ass'y. Package XT
    Center Backrest Ass'y. Package XT
  • 150
    708001693 Base Bracket
    Base Bracket
  • 160
    207684544 Hex. Flanged Screw M8 X 45
    Hex. Flanged Screw M8 X 45
  • 190
    708001903 Bushing
    Bushing
  • 200
    250000760 Torx Screw Truss Head PT.K50 X 20
    Torx Screw Truss Head PT.K50 X 20
  • 210
    207064544 Hex. Screw M6 X 45
    Hex. Screw M6 X 45
  • 220
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 230
    207182044 Hex. Screw M8 X 20. Package XT
    Hex. Screw M8 X 20. Package XT
  • 250
    250400069 Pin
    Pin
  • 260
    269800431 Hairpin
    Hairpin
  • 270
    269501487 Latch
    Latch
  • 280
    517303756 Grommet
    Grommet
  • 290
    293830005 Rubber Bumper
    Rubber Bumper
  • 290
    293830005 Rubber Bumper. Package XT
    Rubber Bumper. Package XT
  • 300
    708000848 LH Rail. Package XT
    LH Rail. Package XT
  • 310
    708002001 RH Rail. Package XT
    RH Rail. Package XT
  • 350
    708002293 Cover
    Cover
  • 500
    708001721 Head Rest
    Head Rest
  • 540
    708002331 Driver Buckle
    Driver Buckle
  • 550
    708002330 Middle Buckle
    Middle Buckle
  • 560
    708002329 Passenger Buckle
    Passenger Buckle
  • 570
    708002328 Safety Belt
    Safety Belt
  • 580
    708002327 Central Safety Belt
    Central Safety Belt
  • 605
    207028046 Hex. Screw M12 X 80
    Hex. Screw M12 X 80
  • 606
    250200102 Flat Washer M12
    Flat Washer M12
  • 610
    233221416 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 620
    250000521 Hex. Cap Screw 7/16'' X 1''
    Hex. Cap Screw 7/16'' X 1''
  • 630
    250100183 Lock Nut Nylon 7/16
    Lock Nut Nylon 7/16
  • 712
    250000721 Torx Screw
    Torx Screw
  • 713
    250200162 Flat Washer M6.6 X 22
    Flat Washer M6.6 X 22
  • 716
    708000890 Safety Belt Screw
    Safety Belt Screw
  • 717
    708000891 Position Washer
    Position Washer
