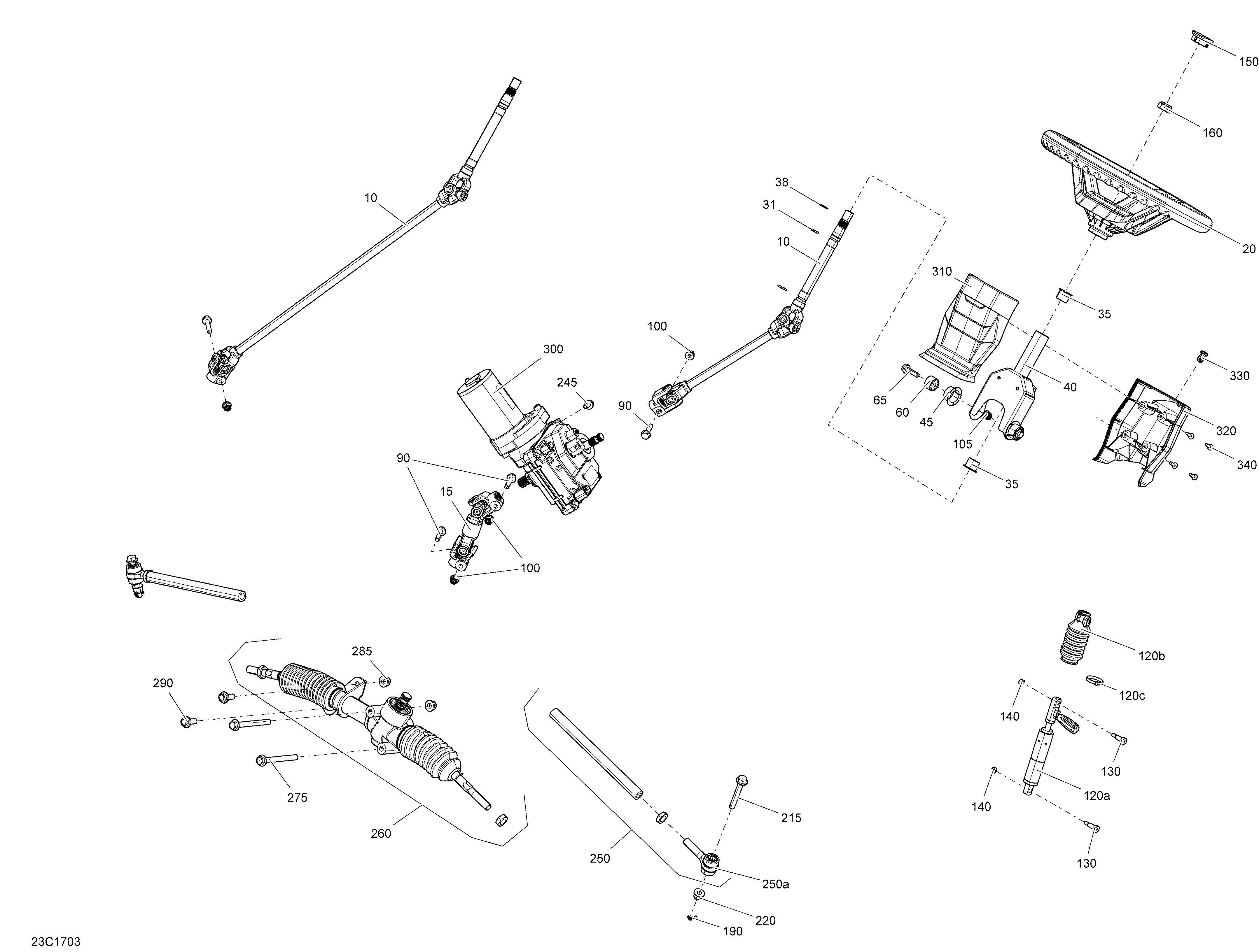

07- Steering - All Models для BRP Traxter MAX - 2017

  • №
    Артикул
    Название
  • 10
    709401440 Steering shaft Ass'y
    Steering shaft Ass'y
  • 15
    709401519 Lower Steering shaft
    Lower Steering shaft
  • 20
    709401513 Steering Wheel
    Steering Wheel
  • 31
    293300144 O-Ring
    O-Ring
  • 35
    709401733 Bushing
    Bushing
  • 38
    293370110 Circlip
    Circlip
  • 40
    709401602 Steering Support
    Steering Support
  • 45
    709401603 Bushing
    Bushing
  • 60
    709401604 Bushing
    Bushing
  • 65
    207683044 Hex. Flanged Screw M8 X 30
    Hex. Flanged Screw M8 X 30
  • 90
    207583586 Hex. Flanged Screw M8 X 35, Scotch Grip
    Hex. Flanged Screw M8 X 35, Scotch Grip
  • 100
    233281416 Hex. Elastic Flanged Nut M8
    Hex. Elastic Flanged Nut M8
  • 105
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 120a
    709400656 Adjustment Cylinder
    Adjustment Cylinder
  • 120b
    709401232 Boot Kit, Tube Side
    Boot Kit, Tube Side
  • 120c
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 130
    250000669 Socket Head Screw M8 X 16
    Socket Head Screw M8 X 16
  • 140
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 150
    709401514 Steering Cap
    Steering Cap
  • 160
    232511414 Elastic Lock Nut M16
    Elastic Lock Nut M16
  • 190
    211400017 Cotter Pin
    Cotter Pin
  • 215
    250000814 Screw Hex Cap M10 X 75
    Screw Hex Cap M10 X 75
  • 220
    233201414 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 245
    207581644 Hex. Flanged Screw M8 X 16, Scotch Grip
    Hex. Flanged Screw M8 X 16, Scotch Grip
  • 250>250a
    709401627 Tie Rod Ass'y. Includes 250 to 250a
    Tie Rod Ass'y. Includes 250 to 250a
  • 250a
    709401601 Ball Joint
    Ball Joint
  • 260
    709401509 Rack And Pinion
    Rack And Pinion
  • 275
    230500046 Hex. Screw M10 X 100, Scotch Grip
    Hex. Screw M10 X 100, Scotch Grip
  • 285
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 290
    207602546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 300
    709401921 Power Steering Ass'y
    Power Steering Ass'y
  • 310
    707900401 Steering Box Cover
    Steering Box Cover
  • 320
    707900406 Steering Box Cover
    Steering Box Cover
  • 330
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 340
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
