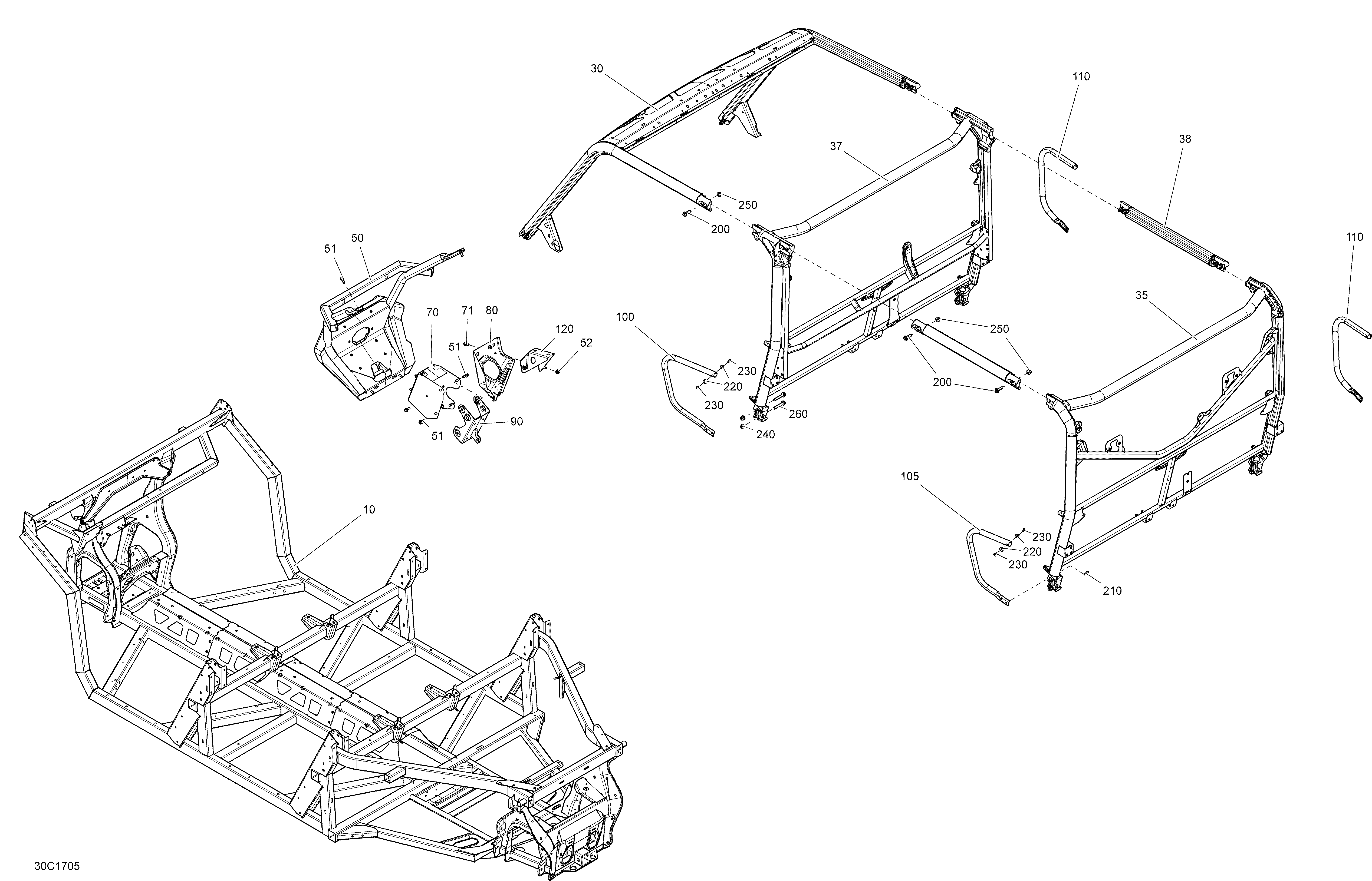

09- Frame - All Models для BRP Traxter MAX - 2017

  • №
    Артикул
    Название
  • 10
    715003764 Black Frame Kit
    Black Frame Kit
  • 30
    715003560 Front Cage Profile Kit
    Front Cage Profile Kit
  • 35
    715003569 Rear Cage Profile Kit
    Rear Cage Profile Kit
  • 37
    715003770 Mid Cage Kit MAX
    Mid Cage Kit MAX
  • 38
    705205401 Cage Extension MAX
    Cage Extension MAX
  • 50
    705203999 Front Bumper
    Front Bumper
  • 51
    207582044 Hex. Flanged Screw M8 X 20, Scotch Grip
    Hex. Flanged Screw M8 X 20, Scotch Grip
  • 52
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 70
    705204228 Brake Module Support
    Brake Module Support
  • 71
    207682044 Hex. Flanged Screw M8 X 20
    Hex. Flanged Screw M8 X 20
  • 80
    715003570 DPS Support
    DPS Support
  • 90
    705204429 Steering Support
    Steering Support
  • 100
    705204594 LH Protector Tube
    LH Protector Tube
  • 105
    705204590 Side Protect LH
    Side Protect LH
  • 110
    705204592 RH Protector Tube
    RH Protector Tube
  • 120
    705205171 Shifting Module Support
    Shifting Module Support
  • 200
    250000855 Hex. Flanged Screw M10 X 35
    Hex. Flanged Screw M10 X 35
  • 210
    207562044 Flanged Screw M6 X 20, Scotch Grip
    Flanged Screw M6 X 20, Scotch Grip
  • 220
    705202223 Offset Washer
    Offset Washer
  • 230
    250000789 Torx Truss M6X14
    Torx Truss M6X14
  • 240
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 250
    233201466 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 260
    207606046 Hex. Flanged Screw M10 X 60
    Hex. Flanged Screw M10 X 60
