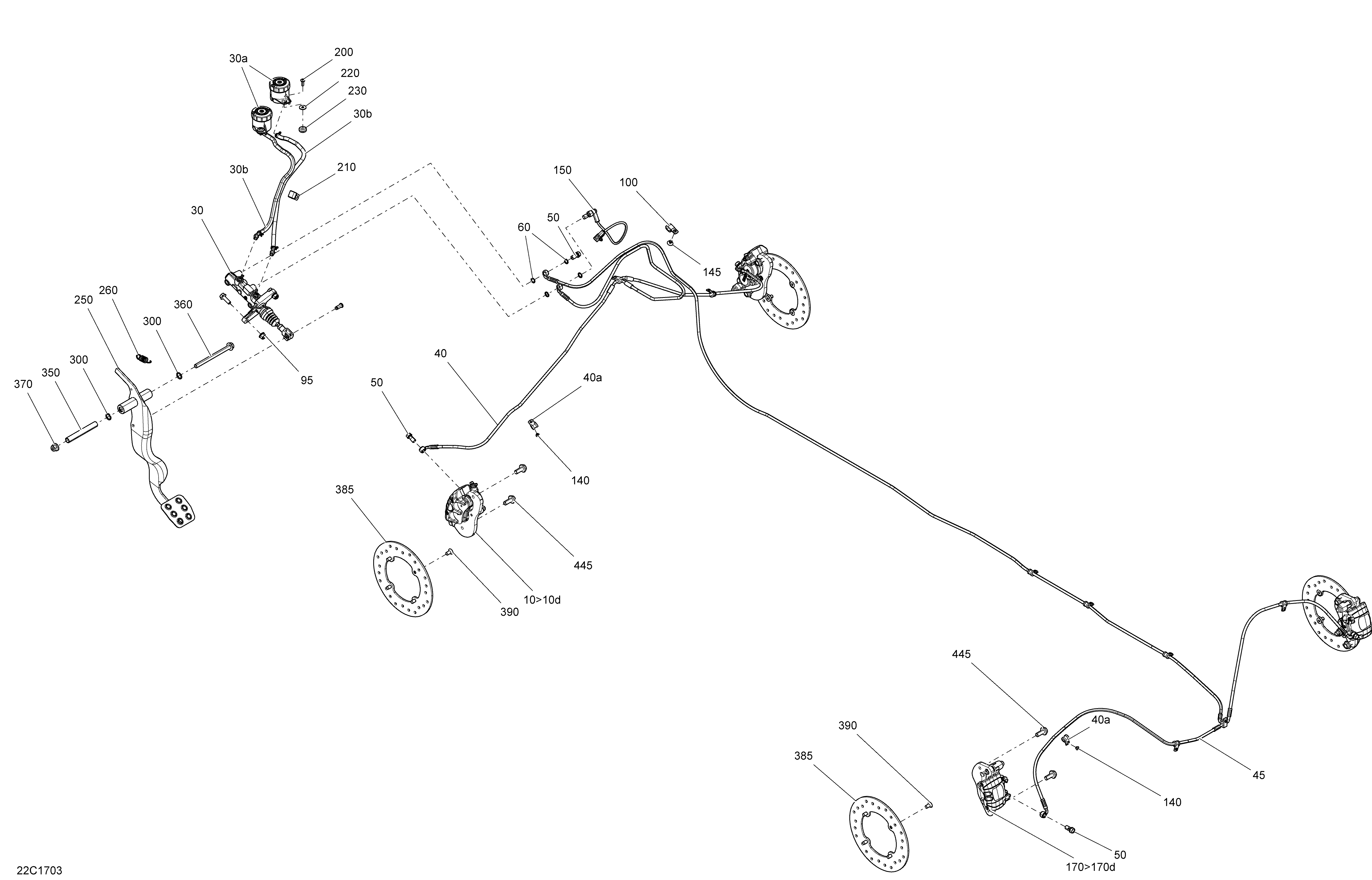

06- Brakes - All Models для BRP Traxter MAX - 2017

  • №
    Артикул
    Название
  • 10>10d
    705601462 Front Caliper LH. Includes 10 to 10d
    Front Caliper LH. Includes 10 to 10d
  • 10>10d
    705601463 Front Caliper RH. Includes 10 to 10d
    Front Caliper RH. Includes 10 to 10d
  • 10a>10a1
    715900379 Brake Pads LH. Includes 10a to 10a1
    Brake Pads LH. Includes 10a to 10a1
  • 10a>10a1
    715900380 Brake Pads RH. Includes 10a to 10a1
    Brake Pads RH. Includes 10a to 10a1
  • 10a1
    715900384 Pin Kit
    Pin Kit
  • 10b
    705601017 Bleeding Screw
    Bleeding Screw
  • 10d
    715900385 Cap Spring Kit
    Cap Spring Kit
  • 30
    705601549 Master Cylinder. Includes 30 to 30b
    Master Cylinder. Includes 30 to 30b
  • 30a
    705601020 Oil Tank
    Oil Tank
  • 30b
    705601019 Housing Oil Hose
    Housing Oil Hose
  • 40
    705601594 Brake Hose. Includes 40 to 40a
    Brake Hose. Includes 40 to 40a
  • 40a
    715900250 Hose Clip
    Hose Clip
  • 45
    705601499 Brake Hose. Includes 45 to 45a
    Brake Hose. Includes 45 to 45a
  • 45a
    715900250 Hose Clip
    Hose Clip
  • 50
    705600609 Banjo Bolt
    Banjo Bolt
  • 60
    705600310 Copper Washer
    Copper Washer
  • 95
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 100
    293650220 Clamp
    Clamp
  • 140
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 145
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 150
    705601250 Brake Switch
    Brake Switch
  • 170>170d
    705601466 Rear Caliper LH. Includes 170 to 170d
    Rear Caliper LH. Includes 170 to 170d
  • 170>170d
    705601467 Rear Caliper RH. Includes 170 to 170d
    Rear Caliper RH. Includes 170 to 170d
  • 170a>170a1
    715900386 Brake Pads LH. Includes 170a to 170a1
    Brake Pads LH. Includes 170a to 170a1
  • 170a>170a1
    715900387 Brake Pads RH. Includes 170a to 170a1
    Brake Pads RH. Includes 170a to 170a1
  • 170a1
    715900384 Pin Kit
    Pin Kit
  • 170b
    705601017 Bleeding Screw
    Bleeding Screw
  • 170d
    715900385 Cap Spring Kit
    Cap Spring Kit
  • 200
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 210
    515175507 Clip
    Clip
  • 220
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 230
    414036300 Grommet
    Grommet
  • 250
    705601306 Brake Pedal
    Brake Pedal
  • 260
    705600792 Brake Pedal Spring
    Brake Pedal Spring
  • 300
    293300144 O-Ring
    O-Ring
  • 350
    705601373 Inside Sleeve
    Inside Sleeve
  • 360
    230603046 Flanged Hex. Screw, M10 X 130
    Flanged Hex. Screw, M10 X 130
  • 370
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 385
    705601511 Brake Disc
    Brake Disc
  • 390
    235381646 Torx Screw M8 X 16, Scotch Grip
    Torx Screw M8 X 16, Scotch Grip
  • 445
    207502546 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
