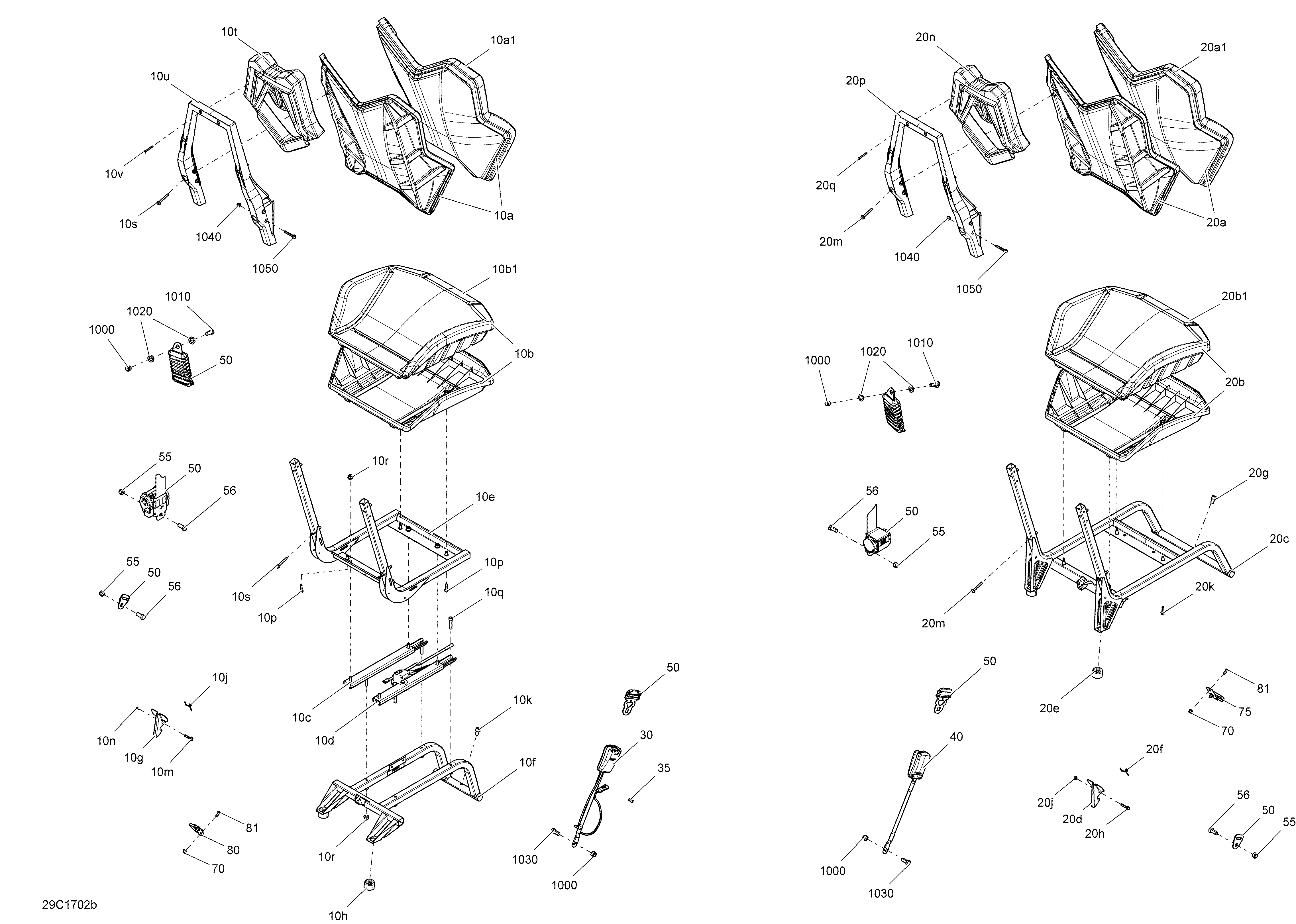

09- Seat - Turbo для BRP 1-Maverick - 2017
-
№АртикулНазвание
-
10a708002246 Black Backrest Ass'y. Package XDS STD. Includes 10a to 10a1Black Backrest Ass'y. Package XDS STD. Includes 10a to 10a1
-
10a708002271 Gulfstream Blue Backrest Ass'y. Package XDS. Includes 10a to 10a1Gulfstream Blue Backrest Ass'y. Package XDS. Includes 10a to 10a1
-
10a1708002248 Black Backrest Cover. Package XDS STDBlack Backrest Cover. Package XDS STD
-
10a1708002272 Gulfstream Blue Backrest Cover. Package XDSGulfstream Blue Backrest Cover. Package XDS
-
10b708002247 Black Cushion Ass'y. Package XDS STD. Includes 10b to 10b1Black Cushion Ass'y. Package XDS STD. Includes 10b to 10b1
-
10b708002273 Gulfstream Blue Cushion Ass'y. Package XDS. Includes 10b to 10b1Gulfstream Blue Cushion Ass'y. Package XDS. Includes 10b to 10b1
-
10b1708002249 Black Cushion Cover. Package XDS STDBlack Cushion Cover. Package XDS STD
-
10b1708002274 Gulfstream Blue Seat Cover. Package XDSGulfstream Blue Seat Cover. Package XDS
-
10c708000848 LH RailLH Rail
-
10d708001739 RH RailRH Rail
-
10e708001356 Operator Seat FrameOperator Seat Frame
-
10f708000667 Seat MemberSeat Member
-
10g708001355 Seat LatchSeat Latch
-
10h708001671 Rubber BumperRubber Bumper
-
10j708000921 SpringSpring
-
10k205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
10m207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
10n232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
10p207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
10q205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
10r233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
10s250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
10t708001074 Head RestHead Rest
-
10u708001245 Seat SupportSeat Support
-
10v250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
20a708002246 Black Backrest Ass'y. Package XDS STD. Includes 20a to 20a1Black Backrest Ass'y. Package XDS STD. Includes 20a to 20a1
-
20a708002271 Gulfstream Blue Backrest Ass'y. Package XDS. Includes 20a to 20a1Gulfstream Blue Backrest Ass'y. Package XDS. Includes 20a to 20a1
-
20a1708002248 Black Backrest Cover. Package XDS STDBlack Backrest Cover. Package XDS STD
-
20a1708002272 Gulfstream Blue Backrest Cover. Package XDSGulfstream Blue Backrest Cover. Package XDS
-
20b708002247 Black Cushion Ass'y. Package XDS STD. Includes 20b to 20b1Black Cushion Ass'y. Package XDS STD. Includes 20b to 20b1
-
20b708002273 Gulfstream Blue Cushion Ass'y. Package XDS. Includes 20b to 20b1Gulfstream Blue Cushion Ass'y. Package XDS. Includes 20b to 20b1
-
20b1708002249 Black Cushion Cover. Package XDS STDBlack Cushion Cover. Package XDS STD
-
20b1708002274 Gulfstream BlueSeat Cover. Package XDSGulfstream BlueSeat Cover. Package XDS
-
20c708001357 Passenger Seat FramePassenger Seat Frame
-
20d708001355 Seat LatchSeat Latch
-
20e708001671 Rubber BumperRubber Bumper
-
20f708000921 SpringSpring
-
20g205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
20h207563034 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
20j232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
20k207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
20m250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
20n708001074 Head RestHead Rest
-
20p708001245 Seat SupportSeat Support
-
20q250000897 Hex. Flange Screw K50 X 40Hex. Flange Screw K50 X 40
-
25c708001474 Rear Anchor. Maverick MAXRear Anchor. Maverick MAX
-
25e708001198 Seat Support. Maverick MAXSeat Support. Maverick MAX
-
25g207562544 Hex. Flanged Screw M6 X 25, Scotch Grip. Maverick MAXHex. Flanged Screw M6 X 25, Scotch Grip. Maverick MAX
-
25h250000672 Hex. Flange Screw M6. Maverick MAXHex. Flange Screw M6. Maverick MAX
-
25j233161464 Hex. Elastic Flange Nut M6. Maverick MAXHex. Elastic Flange Nut M6. Maverick MAX
-
25k234062670 Flat Washer, Stainless. Maverick MAXFlat Washer, Stainless. Maverick MAX
-
25m708001074 Head Rest. Maverick MAXHead Rest. Maverick MAX
-
25n708001245 Seat Support. Maverick MAXSeat Support. Maverick MAX
-
25p250000897 Hex. Flange Screw K50 X 40. Maverick MAXHex. Flange Screw K50 X 40. Maverick MAX
-
30708000856 Driver Buckle Side. Package XDSDriver Buckle Side. Package XDS
-
30708002061 Driver Buckle Side. Package XDS STDDriver Buckle Side. Package XDS STD
-
35293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
40708000857 Passenger Buckle Side. Package XDSPassenger Buckle Side. Package XDS
-
40708002062 Passenger Buckle Side. Package XDS STDPassenger Buckle Side. Package XDS STD
-
50708001130 Safety Belt. Package XDSSafety Belt. Package XDS
-
50708001854 Safety Belt. Package XDS STDSafety Belt. Package XDS STD
-
55250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
56250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
70293450274 InsertInsert
-
75708002303 Retaining Rod RHRetaining Rod RH
-
80708002302 Retaining Rod LHRetaining Rod LH
-
81250000717 Torx Head Screw M6 X 16Torx Head Screw M6 X 16
-
1000250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
1010708000890 Safety Belt ScrewSafety Belt Screw
-
1020708000891 Position WasherPosition Washer
-
1030250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
1040233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
1050250000672 Hex. Flange Screw M6Hex. Flange Screw M6
