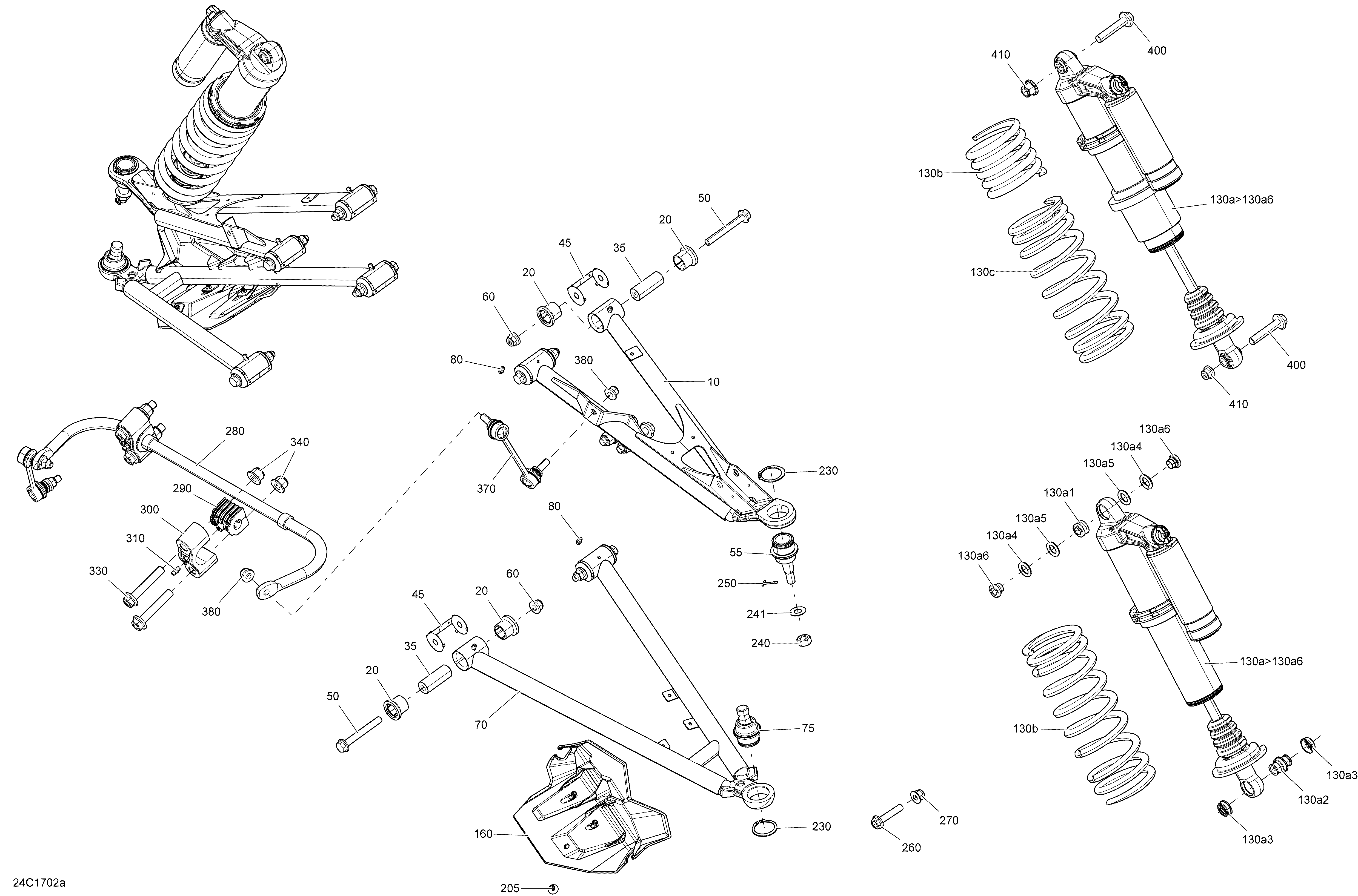

07- Front Suspension - All Models для BRP 1-Maverick - 2017
-
№АртикулНазвание
-
10706202567 Black LH Front Suspension Arm. Package XC, XC DPSBlack LH Front Suspension Arm. Package XC, XC DPS
-
10706202570 Black LH Front Suspension Arm. Package XDS STDBlack LH Front Suspension Arm. Package XDS STD
-
10706202568 Black RH Front Suspension Arm. Package XC, XC DPSBlack RH Front Suspension Arm. Package XC, XC DPS
-
10706202571 Black RH Front Suspension Arm. Package XDS STDBlack RH Front Suspension Arm. Package XDS STD
-
10706202592 Bright White LH Front Suspension Arm. Package XMRBright White LH Front Suspension Arm. Package XMR
-
10706202593 Bright White RH Front Suspension Arm. Package XMRBright White RH Front Suspension Arm. Package XMR
-
10706202594 Can-Am Red LH Front Suspension Arm. Package DPSCan-Am Red LH Front Suspension Arm. Package DPS
-
10706202595 Can-Am Red RH Front Suspension Arm. Package DPSCan-Am Red RH Front Suspension Arm. Package DPS
-
10706202590 Gulfstream Blue LH Front Suspension Arm. Package XXCGulfstream Blue LH Front Suspension Arm. Package XXC
-
10706202596 Gulfstream Blue LH Front Suspension Arm. Package DPSGulfstream Blue LH Front Suspension Arm. Package DPS
-
10706202596 Gulfstream Blue LH Front Suspension Arm. Package XMRGulfstream Blue LH Front Suspension Arm. Package XMR
-
10706202600 Gulfstream Blue LH Front Suspension Arm. Package XDSGulfstream Blue LH Front Suspension Arm. Package XDS
-
10706202591 Gulfstream Blue RH Front Suspension Arm. Package XXCGulfstream Blue RH Front Suspension Arm. Package XXC
-
10706202597 Gulfstream Blue RH Front Suspension Arm. Package XMRGulfstream Blue RH Front Suspension Arm. Package XMR
-
10706202597 Gulfstream Blue RH Front Suspension Arm. Package DPSGulfstream Blue RH Front Suspension Arm. Package DPS
-
10706202601 Gulfstream Blue RH Front Suspension Arm. Package XDSGulfstream Blue RH Front Suspension Arm. Package XDS
-
20706201659 CushionCushion
-
35706201590 SleeveSleeve
-
45706201660 Wear PlateWear Plate
-
50207608046 Hex Flanged Screw M10 X 80Hex Flanged Screw M10 X 80
-
55706202044 Ball JointBall Joint
-
60233201416 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
70706201726 LH Front Lower Arm. Package XC, XC DPS, XXCLH Front Lower Arm. Package XC, XC DPS, XXC
-
70706201727 RH Front Lower Arm. Package XC, XC DPS, XXCRH Front Lower Arm. Package XC, XC DPS, XXC
-
70706201861 LH Front Lower Arm. Package XDS, XMR, DPS, XDS STDLH Front Lower Arm. Package XDS, XMR, DPS, XDS STD
-
70706201862 RH Front Lower Arm. Package XDS, XMR, DPS, XDS STDRH Front Lower Arm. Package XDS, XMR, DPS, XDS STD
-
75706202045 Ball JointBall Joint
-
80408200700 Grease FittingGrease Fitting
-
160706201830 RH Joint ProtectorRH Joint Protector
-
160706201829 LH Joint ProtectorLH Joint Protector
-
205293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
230293370035 CirclipCirclip
-
240250100099 Nut M12Nut M12
-
241250200086 Flat WasherFlat Washer
-
250211400017 Cotter PinCotter Pin
-
260207605044 Hex. Flanged Screw M10 X 50Hex. Flanged Screw M10 X 50
-
270233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
280706202687 Stabilizer Bar Ass'y. Except EuropeStabilizer Bar Ass'y. Except Europe
-
290706002535 Cushion. Except EuropeCushion. Except Europe
-
300706002303 Clamp. Except EuropeClamp. Except Europe
-
310408200700 Grease Fitting. Except EuropeGrease Fitting. Except Europe
-
330250000858 Hexagonal Flanged Screw M12 X 70. Except EuropeHexagonal Flanged Screw M12 X 70. Except Europe
-
340233221416 Elastic Flange Nut M12. Except EuropeElastic Flange Nut M12. Except Europe
-
370706202538 Stabilizer Bar Link LH. Except EuropeStabilizer Bar Link LH. Except Europe
-
370706202539 Stabilizer Bar Link RH. Except EuropeStabilizer Bar Link RH. Except Europe
-
380233201416 Hex. Flanged Elastic Nut M10. Except EuropeHex. Flanged Elastic Nut M10. Except Europe
-
400207626046 Hex. Flanged Screw M12 X 60Hex. Flanged Screw M12 X 60
-
410233221416 Elastic Flange Nut M12Elastic Flange Nut M12
-
130a>130a6706202743 Front Shock. Package DPS. Includes 130a to 130a6Front Shock. Package DPS. Includes 130a to 130a6
-
130a>130a6706202249 Front Shock. Package XC, XXC, XC DPS. Includes 130a to 130a6Front Shock. Package XC, XXC, XC DPS. Includes 130a to 130a6
-
130a>130a6706202154 Front Shock. Package XDS. Includes 130a to 130a6Front Shock. Package XDS. Includes 130a to 130a6
-
130a>130a6706202752 Front Shock. Package XDS STD. Includes 130a to 130a6Front Shock. Package XDS STD. Includes 130a to 130a6
-
130a>130a6706202749 Front Shock. Package XMR. Includes 130a to 130a6Front Shock. Package XMR. Includes 130a to 130a6
-
130a1715900266 Spherical Bearing. Package XDS, DPS, XC, XXC, XC DPSSpherical Bearing. Package XDS, DPS, XC, XXC, XC DPS
-
130a1715900329 Spherical Bearing. Package XMR, XDS STDSpherical Bearing. Package XMR, XDS STD
-
130a2715900330 Spherical BearingSpherical Bearing
-
130a3715900331 ProtectorProtector
-
130a4715900268 O-Ring BushingO-Ring Bushing
-
130a5715900252 Retaining RingRetaining Ring
-
130a6715900267 Internal BushingInternal Bushing
-
130b706202720 Bright White Front Spring. Package XC DPSBright White Front Spring. Package XC DPS
-
130b706202620 Bright White Front Spring. Package XMRBright White Front Spring. Package XMR
-
130b706202775 Can-Am Red Front Spring. Package DPSCan-Am Red Front Spring. Package DPS
-
130b706202623 Deep Black Front Spring. Package XDS STDDeep Black Front Spring. Package XDS STD
-
130b706202617 Gulfstream Blue Front Spring. Package DPSGulfstream Blue Front Spring. Package DPS
-
130b706202612 Gulfstream Blue Front Spring. Package XDS STD, XDSGulfstream Blue Front Spring. Package XDS STD, XDS
-
130b706202342 Gulfstream Blue Front Spring. Package XMRGulfstream Blue Front Spring. Package XMR
-
130b706201715 Yellow 2000 Front Spring. Package XCYellow 2000 Front Spring. Package XC
-
130b706202718 Gulfstream Bleu Painted Spring. Package XXCGulfstream Bleu Painted Spring. Package XXC
-
130c706202613 Gulfstream Blue Front Spring. Package XDS STD, XDSGulfstream Blue Front Spring. Package XDS STD, XDS
-
130c706202624 Deep Black Front Spring. Package XDS STDDeep Black Front Spring. Package XDS STD
