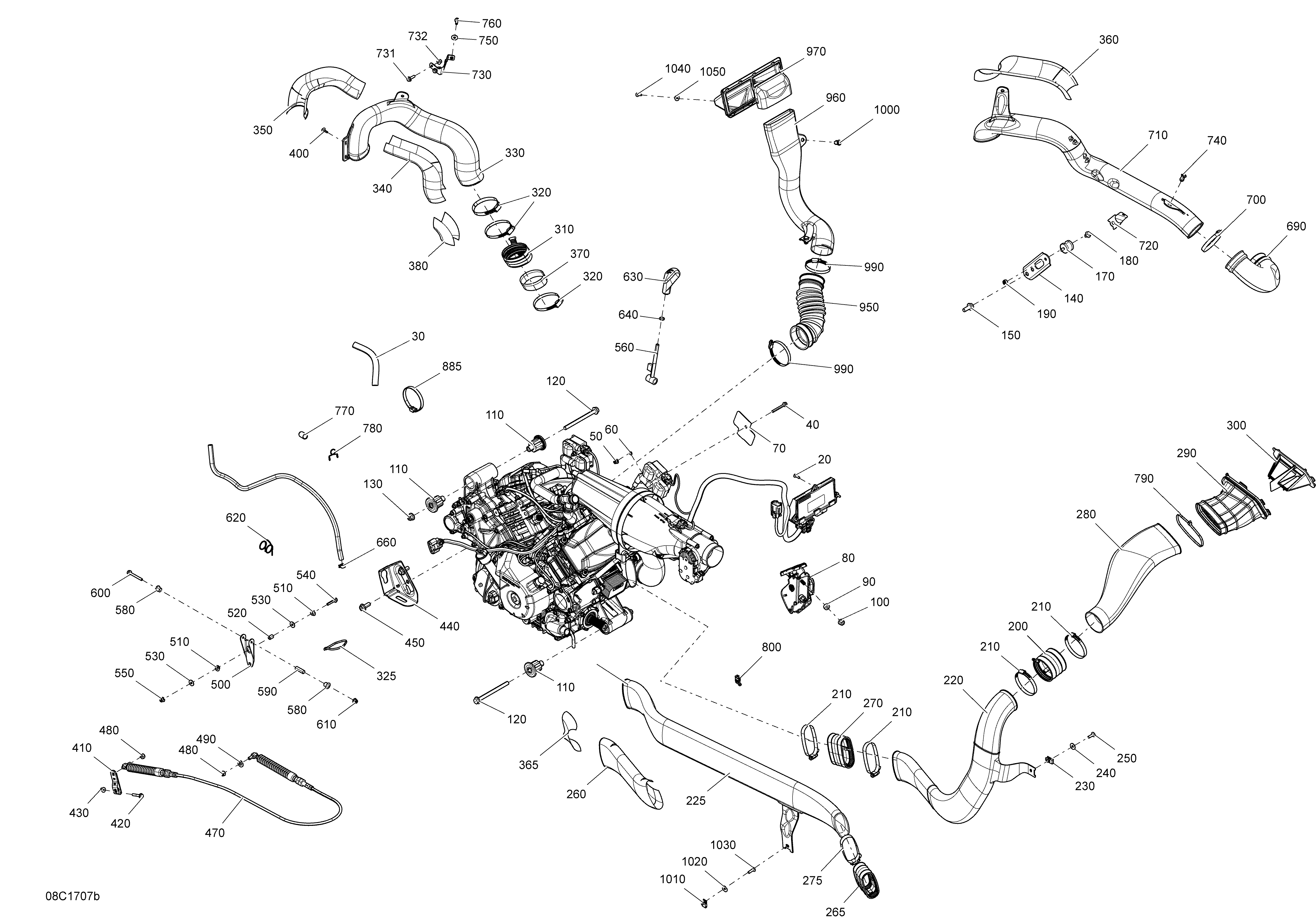

01- Engine - 1000R EFI Except XMR для BRP 1-Maverick - 2017

  • №
    Артикул
    Название
  • 20
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 30
    415080000 Tubing 16 mm
    Tubing 16 mm
  • 40
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 50
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 60
    234461608 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 70
    710000073 Insulator Pad
    Insulator Pad
  • 80
    707001166 Accelerator Pedal
    Accelerator Pedal
  • 90
    707000848 Bushing
    Bushing
  • 100
    233081416 Hex. Flanged Nut M8
    Hex. Flanged Nut M8
  • 110
    707001170 Anti Vibration Buffer
    Anti Vibration Buffer
  • 120
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 130
    233201436 Flanged Elastic Nut M10
    Flanged Elastic Nut M10
  • 140
    707000707 Upper Engine Bracket
    Upper Engine Bracket
  • 150
    207602544 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 170
    707000949 Rubber Isolator
    Rubber Isolator
  • 180
    207581046 Flanged Screw M8 x 10, Scotch Grip
    Flanged Screw M8 x 10, Scotch Grip
  • 190
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 200
    707001467 Flexible Adaptor
    Flexible Adaptor
  • 210
    293650091 Norma Clamp
    Norma Clamp
  • 220
    707000639 Air Inlet
    Air Inlet
  • 230
    250000048 Panel Nut M6 X 1.0
    Panel Nut M6 X 1.0
  • 240
    250200082 Flat Washer
    Flat Washer
  • 250
    250000722 Torx Screw M6 X 20
    Torx Screw M6 X 20
  • 260
    707000924 Reflective Sheet
    Reflective Sheet
  • 270
    707001467 Flexible Adaptor
    Flexible Adaptor
  • 280
    707000909 Primary Air Intake
    Primary Air Intake
  • 290
    707000908 Adaptor
    Adaptor
  • 300
    707001344 CVT Filter
    CVT Filter
  • 310
    707001274 Adaptor
    Adaptor
  • 320
    293650118 Norma Gear Clamp
    Norma Gear Clamp
  • 325
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 330
    707001243 CVT Outlet
    CVT Outlet
  • 340
    707001284 Reflector
    Reflector
  • 350
    707001360 Reflector
    Reflector
  • 360
    707001286 Reflector
    Reflector
  • 370
    707000988 Reflector
    Reflector
  • 380
    707000991 Reflective Sheet
    Reflective Sheet
  • 400
    250000725 Screw M4 X 16
    Screw M4 X 16
  • 410
    707000911 Lever
    Lever
  • 420
    207663544 Hex. Flanged Screw M6 X 35
    Hex. Flanged Screw M6 X 35
  • 430
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 440
    707000919 Cable Support
    Cable Support
  • 450
    207602544 Hex. Flanged Screw M10 X 25
    Hex. Flanged Screw M10 X 25
  • 470
    707001210 Shifting Cable
    Shifting Cable
  • 480
    232581414 Hex. Elastic Stop Nut M8
    Hex. Elastic Stop Nut M8
  • 490
    234001410 Flat Washer 10 mm
    Flat Washer 10 mm
  • 500
    707000828 Lower Lever Arm
    Lower Lever Arm
  • 510
    707000847 Flanged Bushing
    Flanged Bushing
  • 520
    707000801 Bushing
    Bushing
  • 530
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 540
    207563034 Hex. Flanged Screw M6 X 30, Scotch Grip
    Hex. Flanged Screw M6 X 30, Scotch Grip
  • 550
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 560
    707000711 Upper Lever Arm. Except Europe
    Upper Lever Arm. Except Europe
  • 560
    707000978 Upper Lever Arm. Europe
    Upper Lever Arm. Europe
  • 580
    707000869 Flanged Bushing
    Flanged Bushing
  • 590
    707001376 Bushing
    Bushing
  • 600
    207665044 Hex. Flanged Screw M6 X 50
    Hex. Flanged Screw M6 X 50
  • 610
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 620
    707000750 Lever Arm Spring
    Lever Arm Spring
  • 630
    707000284 Lever Handle
    Lever Handle
  • 640
    232180491 Hex. Jam Nut M8
    Hex. Jam Nut M8
  • 660
    414415200 Spring Clamp
    Spring Clamp
  • 690
    707001229 Front Adaptor
    Front Adaptor
  • 700
    293650118 Norma Gear Clamp
    Norma Gear Clamp
  • 710
    707001230 CVT Outlet
    CVT Outlet
  • 720
    707001231 Front Support
    Front Support
  • 730
    707001232 Rear Support
    Rear Support
  • 731
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 732
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 740
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 750
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 760
    210261650 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 770
    707001185 Plug
    Plug
  • 780
    707800506 Retainer Clip
    Retainer Clip
  • 790
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 885
    293750065 Tie Rap 367mm
    Tie Rap 367mm
  • 950
    707001400 Flexible Adaptor
    Flexible Adaptor
  • 960
    707001403 Air Inlet
    Air Inlet
  • 970
    707001422 Filter
    Filter
  • 990
    293650091 Norma Clamp
    Norma Clamp
  • 1000
    293150089 Tuflok Plastic Rivet
    Tuflok Plastic Rivet
  • 1040
    250000720 Torx Screw K50 X 16
    Torx Screw K50 X 16
  • 1050
    250200025 Washer M5
    Washer M5
