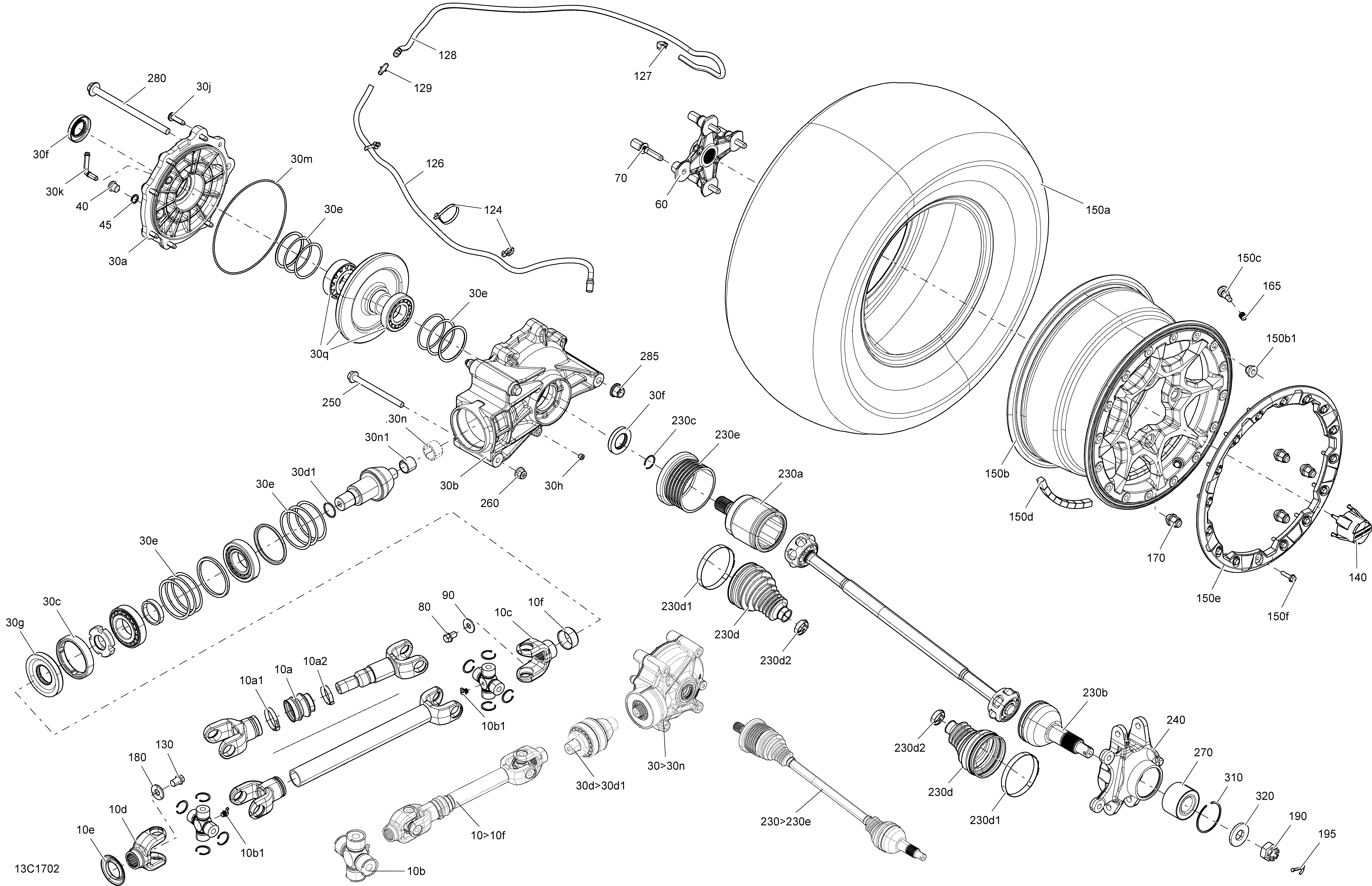

08- Drive System, Rear - All Models для BRP 1-Maverick - 2017

  • №
    Артикул
    Название
  • 10>10f
    703500938 Drive Shaft Ass'y. Package DPS, XMR. Includes 10 to 10f
    Drive Shaft Ass'y. Package DPS, XMR. Includes 10 to 10f
  • 10>10f
    703500938 Drive Shaft Ass'y. Package XC, XC DPS, XXC. Includes 10 to 10f
    Drive Shaft Ass'y. Package XC, XC DPS, XXC. Includes 10 to 10f
  • 10>10f
    703500939 Drive Shaft Ass'y. Package XDS STD, XDS. Includes 10 to 10f
    Drive Shaft Ass'y. Package XDS STD, XDS. Includes 10 to 10f
  • 10a
    715900118 Rubber Boot. Includes 10a to 10a2
    Rubber Boot. Includes 10a to 10a2
  • 10a1
    293650138 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 10a2
    509000045 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 10b
    703500846 Universal Joint Ass'y. Includes 10b to 10b1
    Universal Joint Ass'y. Includes 10b to 10b1
  • 10b1
    715900295 Grease Fitting
    Grease Fitting
  • 10c
    715900271 Joint
    Joint
  • 10d
    715900436 Joint
    Joint
  • 10e
    705501123 Protector
    Protector
  • 10f
    705400036 Wear Ring
    Wear Ring
  • 30>30n
    705502275 Final Drive Unit. Includes 30 to 30n
    Final Drive Unit. Includes 30 to 30n
  • 30a
    705502171 Rear Cover
    Rear Cover
  • 30b
    705502172 Pinion Cover
    Pinion Cover
  • 30c
    705501740 Nut
    Nut
  • 30d>30d1
    703500867 Pinion Kit. Includes 30d to 30d1
    Pinion Kit. Includes 30d to 30d1
  • 30d1
    705501554 O-Ring
    O-Ring
  • 30e
    703500839 Differential Shim Kit
    Differential Shim Kit
  • 30f
    705501556 Oil Seal
    Oil Seal
  • 30g
    705502276 Oil Seal
    Oil Seal
  • 30h
    705501724 Plug Drain
    Plug Drain
  • 30j
    705502063 Screw
    Screw
  • 30k
    705501584 Breather Tube
    Breather Tube
  • 30m
    705501749 Oil Seal
    Oil Seal
  • 30n
    703500869 Bearing Kit. Includes 30n to 30n1
    Bearing Kit. Includes 30n to 30n1
  • 30n1
    703500840 Needle Bearing
    Needle Bearing
  • 30q
    703500868 Gear Kit
    Gear Kit
  • 40
    705500504 Fill Level Plug
    Fill Level Plug
  • 45
    705500506 Copper Washer
    Copper Washer
  • 60
    705502223 Wheel Hub
    Wheel Hub
  • 70
    250300060 Wheel Stud
    Wheel Stud
  • 80
    250000615 Hex Flanged Screwv M10 X 16
    Hex Flanged Screwv M10 X 16
  • 90
    250200014 Flat Washer M10
    Flat Washer M10
  • 124
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 124
    710003168 Christmas Tree Tie-Rap 200 mm
    Christmas Tree Tie-Rap 200 mm
  • 126
    293830177 Hose
    Hose
  • 127
    414227300 Clip. Package XMR
    Clip. Package XMR
  • 128
    415080200 Hose, Polyurethane. Package XMR
    Hose, Polyurethane. Package XMR
  • 129
    293710039 Straight Fitting. Package XMR
    Straight Fitting. Package XMR
  • 130
    250000359 Hex Flanged Screw M12 x 16
    Hex Flanged Screw M12 x 16
  • 140
    705400928 Wheel Cap. Except Package XMR, XDS STD
    Wheel Cap. Except Package XMR, XDS STD
  • 140
    705401541 Wheel Cap. Package XMR, XDS STD
    Wheel Cap. Package XMR, XDS STD
  • 150a
    705401501 Tire. Package XMR
    Tire. Package XMR
  • 150a
    705501434 Rear Tire. Package XDS
    Rear Tire. Package XDS
  • 150a
    705501817 Rear Tire Maxxis 27X11X12. Package XC, XC DPS, DPS
    Rear Tire Maxxis 27X11X12. Package XC, XC DPS, DPS
  • 150a
    705501817 Rear Tire Maxxis 27X11X12. Package XXC Except Europe
    Rear Tire Maxxis 27X11X12. Package XXC Except Europe
  • 150a
    705501818 Rear Tire. Package XXC Europe
    Rear Tire. Package XXC Europe
  • 150a
    705502144 Rear Tire. Package XDS STD
    Rear Tire. Package XDS STD
  • 150b
    705401848 Front Rim. Package XMR
    Front Rim. Package XMR
  • 150b
    705501853 Black Rim. Package DPS, XC, XC DPS, XDS
    Black Rim. Package DPS, XC, XC DPS, XDS
  • 150b
    705502103 Black Rear Rim. Package XDS STD
    Black Rear Rim. Package XDS STD
  • 150b
    705502244 Black Rear Rim. Package XXC. Includes 150b to 150b1
    Black Rear Rim. Package XXC. Includes 150b to 150b1
  • 150b1
    293450317 Insert. Package XXC
    Insert. Package XXC
  • 150c
    705400193 Rim Valve With Cap
    Rim Valve With Cap
  • 150d
    705501385 1/2 OZ Weight
    1/2 OZ Weight
  • 150e
    705401695 Bead Lock Gulfstream Blue. Package XXC
    Bead Lock Gulfstream Blue. Package XXC
  • 150f
    250000787 Hex. Flanged Screw M6 X 25. Package XXC
    Hex. Flanged Screw M6 X 25. Package XXC
  • 165
    293000110 Valve Cap
    Valve Cap
  • 170
    250100184 Black Wheel Nut M10 X 1.25
    Black Wheel Nut M10 X 1.25
  • 180
    250200005 Conical Spring Washer M12
    Conical Spring Washer M12
  • 190
    250100161 Castle Nut M20
    Castle Nut M20
  • 195
    250400071 Cotter Pin
    Cotter Pin
  • 230>230e
    705502412 CV Joint. Package XDS, XDS STD. Includes 230 to 230e
    CV Joint. Package XDS, XDS STD. Includes 230 to 230e
  • 230>230e
    705502413 CV Joint. Package DPS. Includes 230 to 230e
    CV Joint. Package DPS. Includes 230 to 230e
  • 230>230e
    705502414 CV Joint. Package XMR. Includes 230 to 230e
    CV Joint. Package XMR. Includes 230 to 230e
  • 230>230e
    705502415 CV Joint. Package XC, XC DPS, XXC. Includes 230 to 230e
    CV Joint. Package XC, XC DPS, XXC. Includes 230 to 230e
  • 230a
    715900433 Plunging Joint. Package XDS, XDS STD
    Plunging Joint. Package XDS, XDS STD
  • 230a
    715900432 Plunging Joint. Except Package XDS, XDS STD
    Plunging Joint. Except Package XDS, XDS STD
  • 230b
    715900429 CV Joint
    CV Joint
  • 230c
    705501781 Circlip
    Circlip
  • 230d
    705501864 Boot Kit. Includes 230d to 230d2
    Boot Kit. Includes 230d to 230d2
  • 230d1
    715900241 Oetiker Clamp, 82.1 mm
    Oetiker Clamp, 82.1 mm
  • 230d2
    715900242 Oetiker Clamp, 27.3 mm
    Oetiker Clamp, 27.3 mm
  • 230e
    705501841 Heat Dissipator. Except Package XDS, XDS STD
    Heat Dissipator. Except Package XDS, XDS STD
  • 240
    705501730 LH Rear Knuckle
    LH Rear Knuckle
  • 240
    705501731 RH Rear Knuckle
    RH Rear Knuckle
  • 250
    230602546 Hex. Flanged Screw M10 X 125
    Hex. Flanged Screw M10 X 125
  • 260
    233201416 Hex. Flanged Elastic Nut M10
    Hex. Flanged Elastic Nut M10
  • 270
    293350118 Cone Bearing
    Cone Bearing
  • 280
    230629087 Hex. Flanged Screw M12 X 190
    Hex. Flanged Screw M12 X 190
  • 285
    233221416 Elastic Flange Nut M12
    Elastic Flange Nut M12
  • 310
    293370019 Circlip
    Circlip
  • 320
    250200147 Washer M20
    Washer M20
