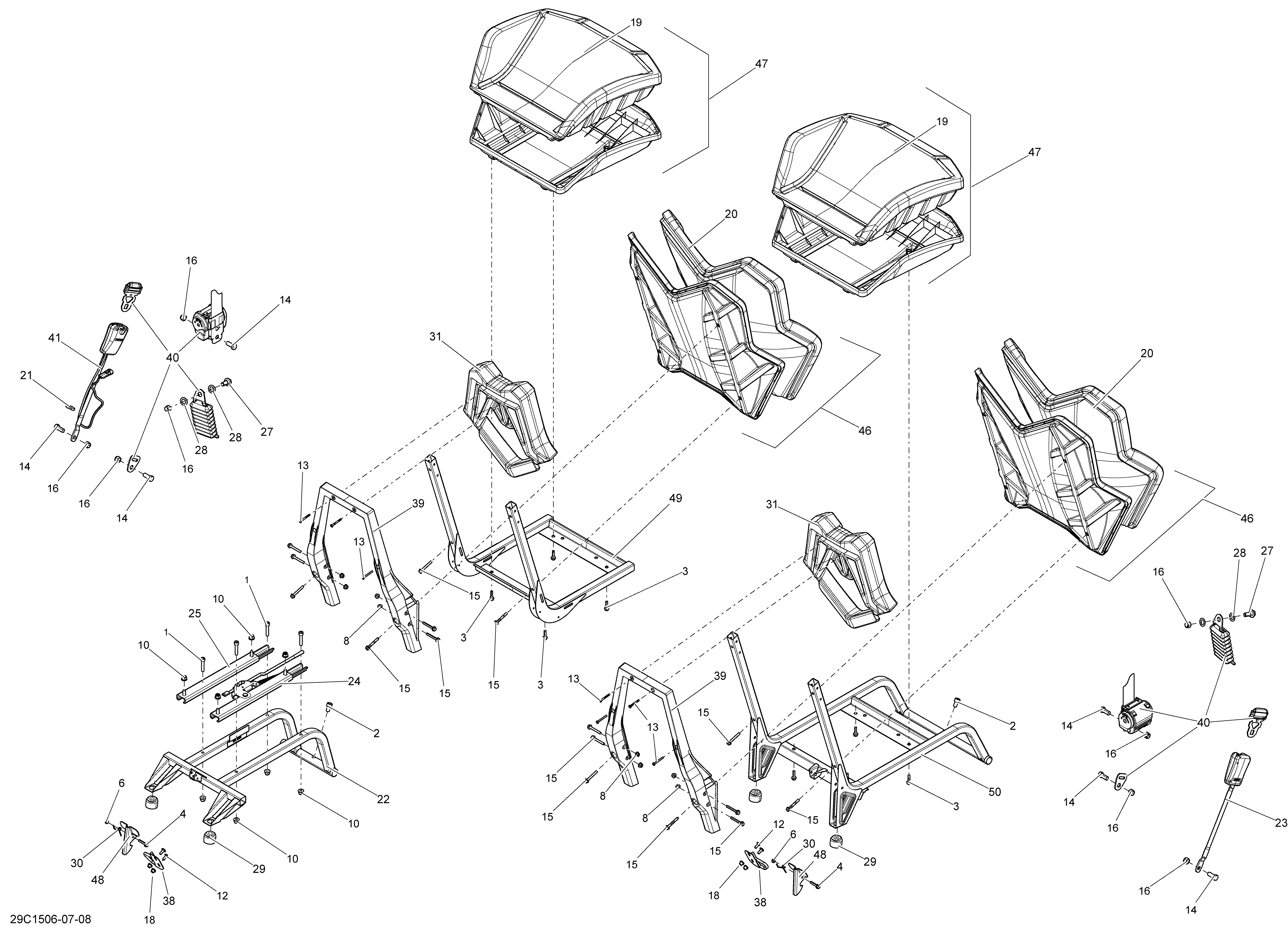

09- Seat _29C1507 для BRP Maverick 1000_XMR - 2015
-
№АртикулНазвание
-
1205084044 Socket Head Screw M8 X 40Socket Head Screw M8 X 40
-
2205501644 Socket Screw M10 X 16Socket Screw M10 X 16
-
3207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
4207663034 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
6232561600 Hex. Elastic Stop Nut M6Hex. Elastic Stop Nut M6
-
8233161464 Hex. Elastic Flange Nut M6Hex. Elastic Flange Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
13250000490 Hex. Washer Head Screw PT K50 X 40Hex. Washer Head Screw PT K50 X 40
-
14250000521 Hex. Cap Screw 7/16'' X 1''Hex. Cap Screw 7/16'' X 1''
-
15250000672 Hex. Flange Screw M6Hex. Flange Screw M6
-
16250100135 Nylon Insert Hex. Lock Nut 7/16-20Nylon Insert Hex. Lock Nut 7/16-20
-
18293450274 InsertInsert
-
19708001084 Seat Cover. Model-Black-YellowSeat Cover. Model-Black-Yellow
-
19708001554 Seat Cover. Model-Digital CamoSeat Cover. Model-Digital Camo
-
20708001080 Backrest Cover. Model-Black-YellowBackrest Cover. Model-Black-Yellow
-
20708001553 Backrest Cover. Model-Digital CamoBackrest Cover. Model-Digital Camo
-
21293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
22708000667 Seat MemberSeat Member
-
23708000844 Passenger Buckle SidePassenger Buckle Side
-
24708001739 RH RailRH Rail
-
25708000848 LH RailLH Rail
-
27708000890 Safety Belt ScrewSafety Belt Screw
-
28708000891 Position WasherPosition Washer
-
29708000899 Rubber BumperRubber Bumper
-
30708000921 SpringSpring
-
31708001074 Head RestHead Rest
-
38708001238 Retaining RodRetaining Rod
-
39708001245 Seat SupportSeat Support
-
40708001302 Safety BeltSafety Belt
-
41708000987 Driver Buckle SideDriver Buckle Side
-
46708001317 Backrest Assembly. Model-Black-YellowBackrest Assembly. Model-Black-Yellow
-
46708001550 Backrest Ass'y. Model-Digital CamoBackrest Ass'y. Model-Digital Camo
-
47708001319 Cushion Assembly. Model-Black-YellowCushion Assembly. Model-Black-Yellow
-
47708001552 Cushion Ass'y. Model-Digital CamoCushion Ass'y. Model-Digital Camo
-
48708001355 Seat LatchSeat Latch
-
49708001356 Operator Seat FrameOperator Seat Frame
-
50708001357 Passenger Seat FramePassenger Seat Frame
