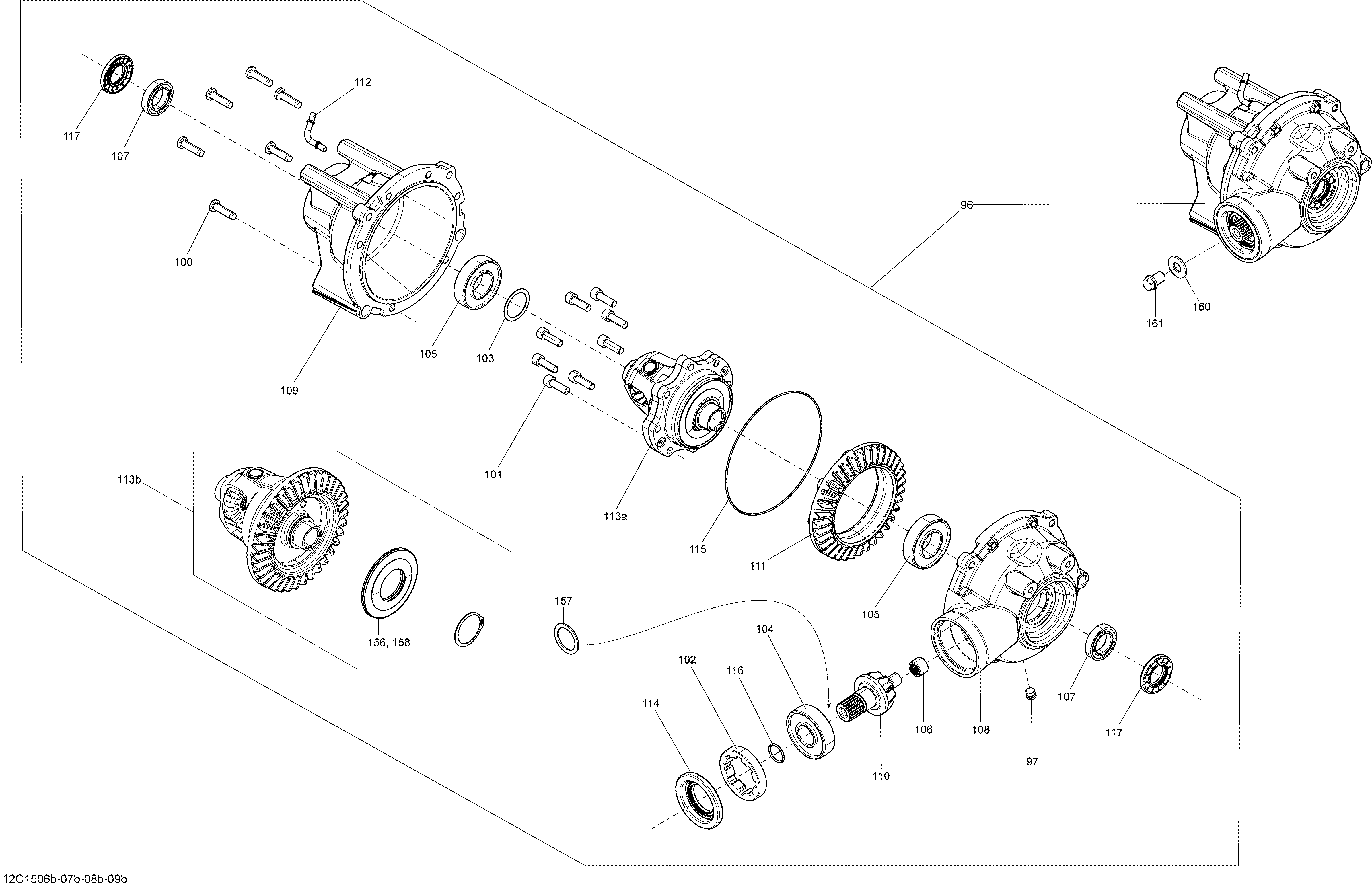

07- Drive System, Front _Differential_12C1507b для BRP Maverick 1000_XMR - 2015
-
№АртикулНазвание
-
96705401511 Front Differential Ass'y. After May 30, 2014Front Differential Ass'y. After May 30, 2014
-
96705401488 Front Differential Ass'y. Before May 29, 2014Front Differential Ass'y. Before May 29, 2014
-
97705501885 Drain Plug. After May 30, 2014Drain Plug. After May 30, 2014
-
97705500894 Drain Plug. Before May 29, 2014Drain Plug. Before May 29, 2014
-
100705401601 Screw. After May 30, 2014Screw. After May 30, 2014
-
100705500892 Screw. Before May 29, 2014Screw. Before May 29, 2014
-
101705401602 Screw. After May 30, 2014Screw. After May 30, 2014
-
102705401603 Nut. After May 30, 2014Nut. After May 30, 2014
-
102705400661 Nut. Before May 29, 2014Nut. Before May 29, 2014
-
103705401604 Shim. After May 30, 2014Shim. After May 30, 2014
-
104705401605 Ball Bearing. After May 30, 2014Ball Bearing. After May 30, 2014
-
104705500260 Ball Bearing. Before May 29, 2014Ball Bearing. Before May 29, 2014
-
105705401606 Ball Bearing. After May 30, 2014Ball Bearing. After May 30, 2014
-
105705500259 Ball Bearing. Before May 29, 2014Ball Bearing. Before May 29, 2014
-
106705401607 Needle Bearing. After May 30, 2014Needle Bearing. After May 30, 2014
-
106705500261 Needle Bearing. Before May 29, 2014Needle Bearing. Before May 29, 2014
-
107705401608 Ball Bearing. After May 30, 2014Ball Bearing. After May 30, 2014
-
107293350044 Ball Bearing. Before May 29, 2014Ball Bearing. Before May 29, 2014
-
108705401609 Front Cover. After May 30, 2014Front Cover. After May 30, 2014
-
108705400761 Front Cover. Before May 29, 2014Front Cover. Before May 29, 2014
-
109705401610 Front Cover. After May 30, 2014Front Cover. After May 30, 2014
-
109705400762 Front Cover. Before May 29, 2014Front Cover. Before May 29, 2014
-
110705401611 Pinion 10 Teeth. After May 30, 2014Pinion 10 Teeth. After May 30, 2014
-
110705501588 10 Teeth Pinion. Before May 29, 201410 Teeth Pinion. Before May 29, 2014
-
111705401612 Gear 36 Teeth. After May 30, 2014Gear 36 Teeth. After May 30, 2014
-
112705401613 Vent Valve. After May 30, 2014Vent Valve. After May 30, 2014
-
112705500893 Vent Valve. Before May 29, 2014Vent Valve. Before May 29, 2014
-
113a705401506 Differential. After May 30, 2014Differential. After May 30, 2014
-
113b705400822 Differential. Before May 29, 2014Differential. Before May 29, 2014
-
114705401615 Oil Seal. After May 30, 2014Oil Seal. After May 30, 2014
-
114705401481 Oil Seal. Before May 29, 2014Oil Seal. Before May 29, 2014
-
115705401616 Seal. After May 30, 2014Seal. After May 30, 2014
-
115705500265 Seal. Before May 29, 2014Seal. Before May 29, 2014
-
116705401617 O'Ring. After May 30, 2014O'Ring. After May 30, 2014
-
116705500267 O-Ring. Before May 29, 2014O-Ring. Before May 29, 2014
-
117705401618 Gasket. After May 30, 2014Gasket. After May 30, 2014
-
117705401486 Oil Seal. Before May 29, 2014Oil Seal. Before May 29, 2014
-
156705502061 Pinion Gear Shim 1.67 mm. Before May 29, 2014Pinion Gear Shim 1.67 mm. Before May 29, 2014
-
157705501162 Pinion Gear Shim. Before May 29, 2014Pinion Gear Shim. Before May 29, 2014
-
158705401604 Shim. Before May 29, 2014Shim. Before May 29, 2014
-
160250200014 Flat Washer M10. After May 30, 2014Flat Washer M10. After May 30, 2014
-
160250200102 Flat Washer M12. Before May 29, 2014Flat Washer M12. Before May 29, 2014
-
161250000615 Hex Flanged Screwv M10 X 16. After May 30, 2014Hex Flanged Screwv M10 X 16. After May 30, 2014
-
161250000378 Hex Flanged Screw M12 X 16, Scotch Grip. Before May 29, 2014Hex Flanged Screw M12 X 16, Scotch Grip. Before May 29, 2014
