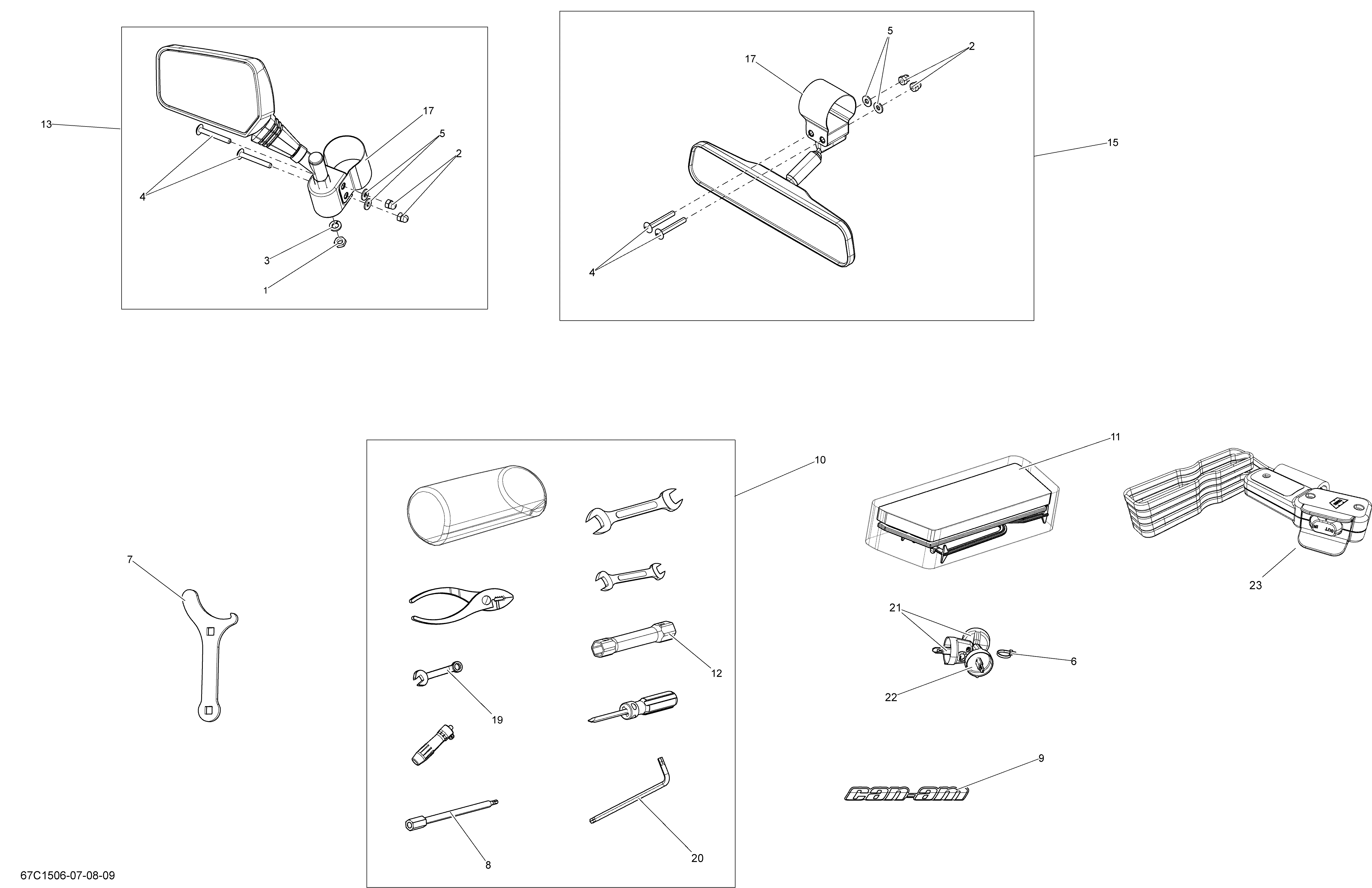

09- Mirrors And Tools _67C1507 для BRP Maverick 1000_XMR - 2015
-
№АртикулНазвание
-
6293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
7529000057 Adjustment WrenchAdjustment Wrench
-
8529000072 Puller/Locking ToolPuller/Locking Tool
-
9704902319 Cage DecalCage Decal
-
10704700162 Tool KitTool Kit
-
11707800573 Filter KitFilter Kit
-
12529014900 Socket Wrench 10/13 mmSocket Wrench 10/13 mm
-
19708200338 Wrench 8 mmWrench 8 mm
-
20708200340 Torx Key T30Torx Key T30
-
21710000817 Black-Electronic KeyBlack-Electronic Key
-
22710002183 Grey-Electronic KeyGrey-Electronic Key
-
23710001002 Remote ControlRemote Control
