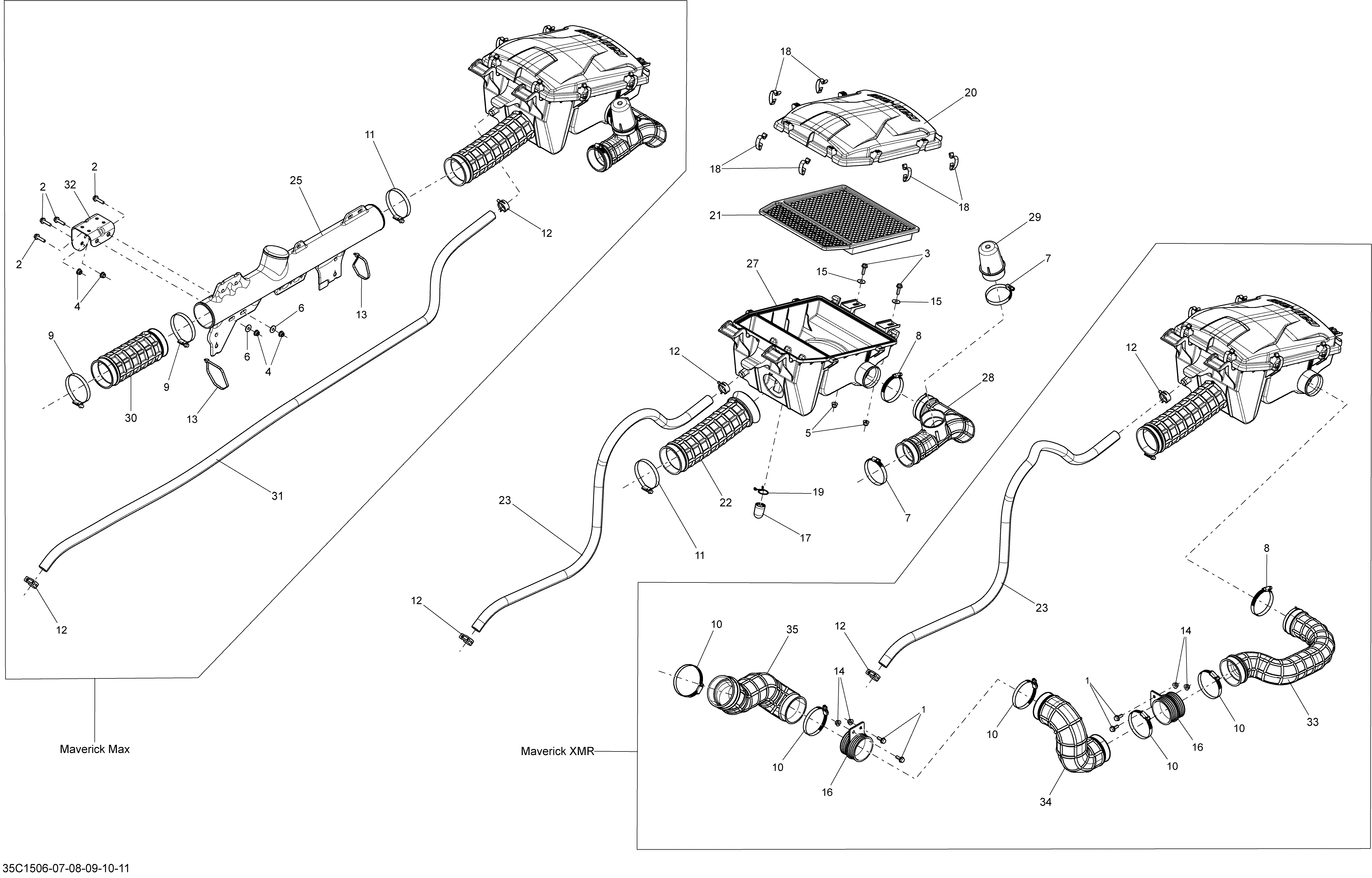

02- Air Intake _35C1507 для BRP Maverick 1000_XMR - 2015

  • №
    Артикул
    Название
  • 1
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip. P-XMR
    Hex. Flanged Screw M6 X 16, Scotch Grip. P-XMR
  • 3
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 5
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 8
    293650079 Norma Clamp
    Norma Clamp
  • 10
    293650091 Norma Clamp. P-XMR
    Norma Clamp. P-XMR
  • 11
    293650091 Norma Clamp
    Norma Clamp
  • 12
    293650213 Norma Spring Clamp
    Norma Spring Clamp
  • 14
    233061414 Hex. Flanged Nut M6. P-XMR
    Hex. Flanged Nut M6. P-XMR
  • 15
    250200082 Flat Washer
    Flat Washer
  • 16
    707001383 Adaptor. P-XMR
    Adaptor. P-XMR
  • 17
    707800080 Drain Tube
    Drain Tube
  • 18
    707800249 Cover Bracket
    Cover Bracket
  • 19
    707800278 Retainer Clip
    Retainer Clip
  • 20
    707800326 Air Intake Silencer Cover
    Air Intake Silencer Cover
  • 21
    707800327 Air Filter
    Air Filter
  • 22
    707800329 Intake Adaptor
    Intake Adaptor
  • 23
    707800411 Hose 15.88 mm. MAVERICK
    Hose 15.88 mm. MAVERICK
  • 27
    707800517 Air Intake Silencer Base
    Air Intake Silencer Base
  • 33
    707800576 Intake Adaptor. P-XMR
    Intake Adaptor. P-XMR
  • 34
    707800577 Air Intake. P-XMR
    Air Intake. P-XMR
  • 35
    707800578 Air Intake. P-XMR
    Air Intake. P-XMR
