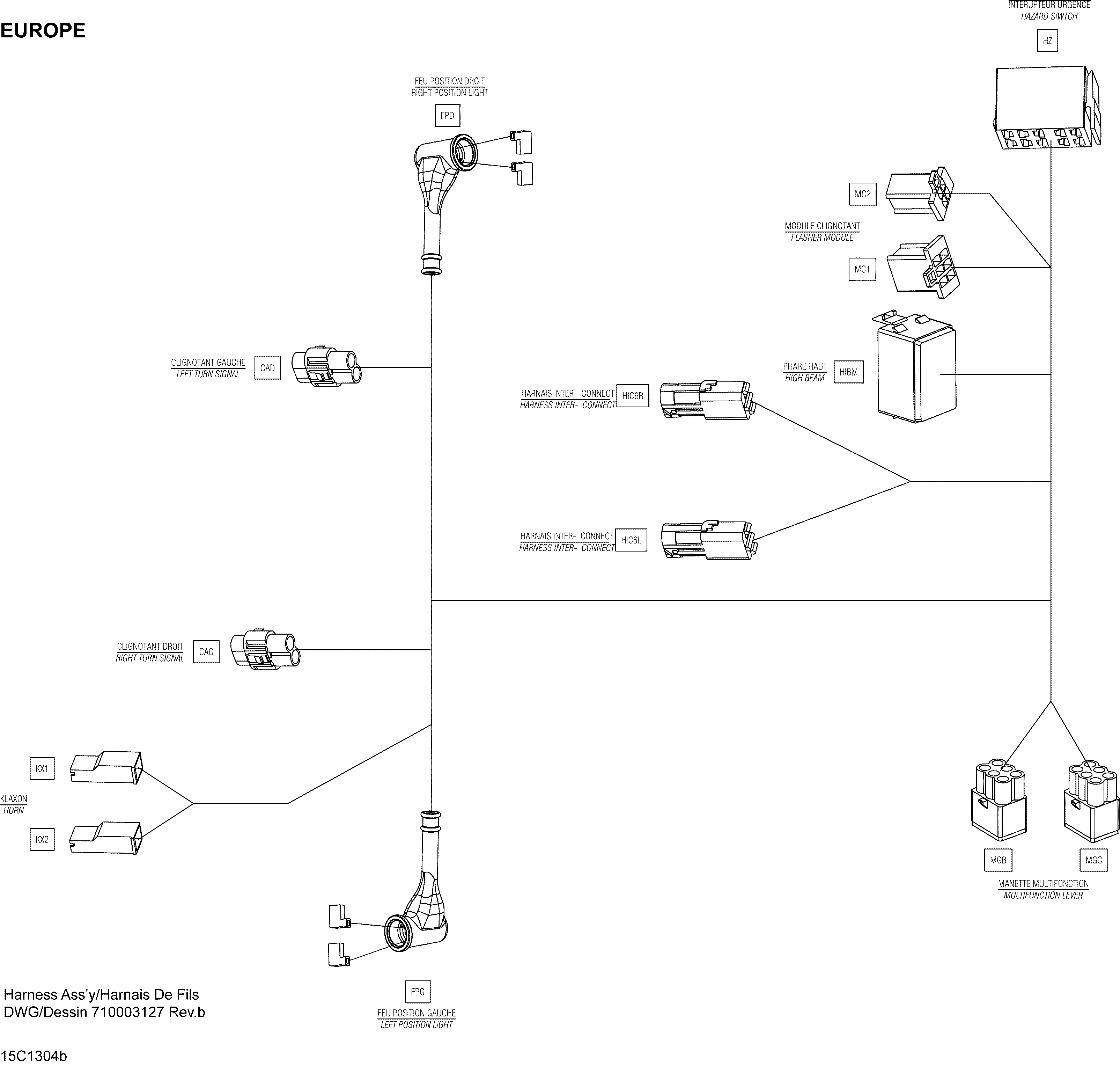

10- Electrical Harness Europe для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
CAD409012300 SealSeal
-
CAD409012100 Female TerminalFemale Terminal
-
CAG409012300 SealSeal
-
CAG409012100 Female TerminalFemale Terminal
-
D3409012700 DiodeDiode
-
D4409012700 DiodeDiode
-
FPD293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FPD409010300 Female TerminalFemale Terminal
-
FPD293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FPD409010300 Female TerminalFemale Terminal
-
FPG293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FPG409010300 Female TerminalFemale Terminal
-
FPG293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FPG409010300 Female TerminalFemale Terminal
-
HIBM293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
HIBM710002420 Loctite E-60NCLoctite E-60NC
-
HIBM710002407 HousingHousing
-
HIC6L710001038 ClipClip
-
HIC6L278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HIC6L278001065 Wire SealWire Seal
-
HIC6L278000222 Male TerminalMale Terminal
-
HIC6R278000217 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
HIC6R278001065 Wire SealWire Seal
-
HIC6R278000222 Male TerminalMale Terminal
-
HZ293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
HZ710002000 HousingHousing
-
HZ710001931 TerminalTerminal
-
KX1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
KX1710000751 Shrink TubingShrink Tubing
-
KX1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX1409010100 Female TerminalFemale Terminal
-
KX2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
KX2710000751 Shrink TubingShrink Tubing
-
KX2409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
KX2409010100 Female TerminalFemale Terminal
-
MC1293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
MC1710002314 HousingHousing
-
MC1710002315 TerminalTerminal
-
MC2293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
MC2710002313 HousingHousing
-
MC2710002315 TerminalTerminal
-
MGB710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
MGB710000080 CapCap
-
MGB409012300 SealSeal
-
MGB409012100 Female TerminalFemale Terminal
-
MGC710000081 Female Housing, 6 CircuitsFemale Housing, 6 Circuits
-
MGC710000080 CapCap
-
MGC409012300 SealSeal
-
MGC409012100 Female TerminalFemale Terminal
