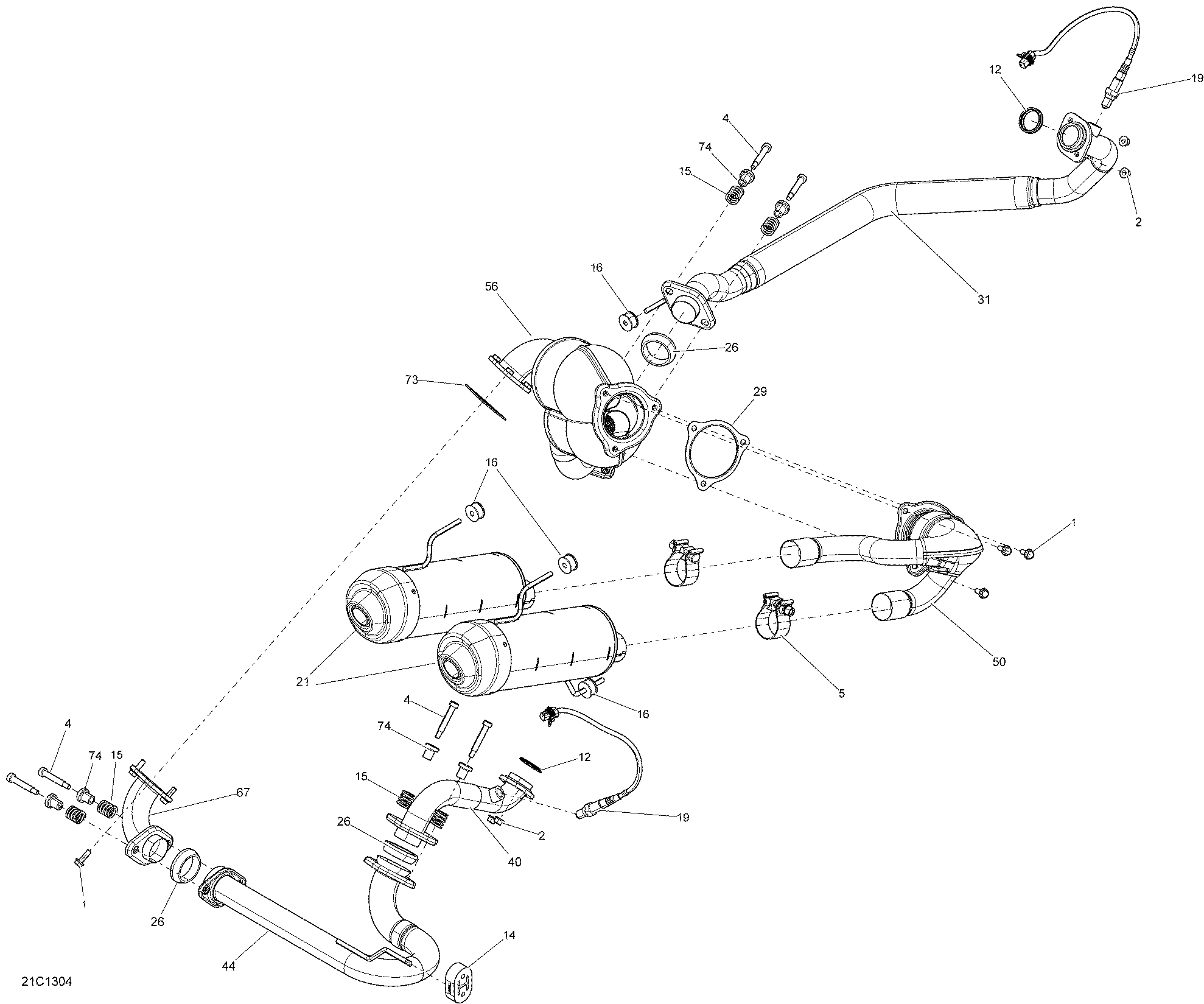

01- Exhaust System для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
1207682544 Hex. Flanged Screw M8 X 25Hex. Flanged Screw M8 X 25
-
2233081416 Hex. Flanged Nut M8Hex. Flanged Nut M8
-
4250000658 Shoulder Socket ScrewShoulder Socket Screw
-
5293650231 Gear ClampGear Clamp
-
12707600317 GasketGasket
-
14707600638 Rubber BumperRubber Bumper
-
15707600682 SpringSpring
-
16707600702 Anti-Vibration RubberAnti-Vibration Rubber
-
19707600872 Oxygen SensorOxygen Sensor
-
21707601038 MufflerMuffler
-
26707601128 Seal JointSeal Joint
-
29707601147 Seal JointSeal Joint
-
31707601210 Head PipeHead Pipe
-
40707601213 Head PipeHead Pipe
-
44707601214 Head PipeHead Pipe
-
50707601335 Head PipeHead Pipe
-
56707601220 TuyauTuyau
-
67707601232 TuyauTuyau
-
73707601244 Seal JointSeal Joint
-
74707601248 BushingBushing
