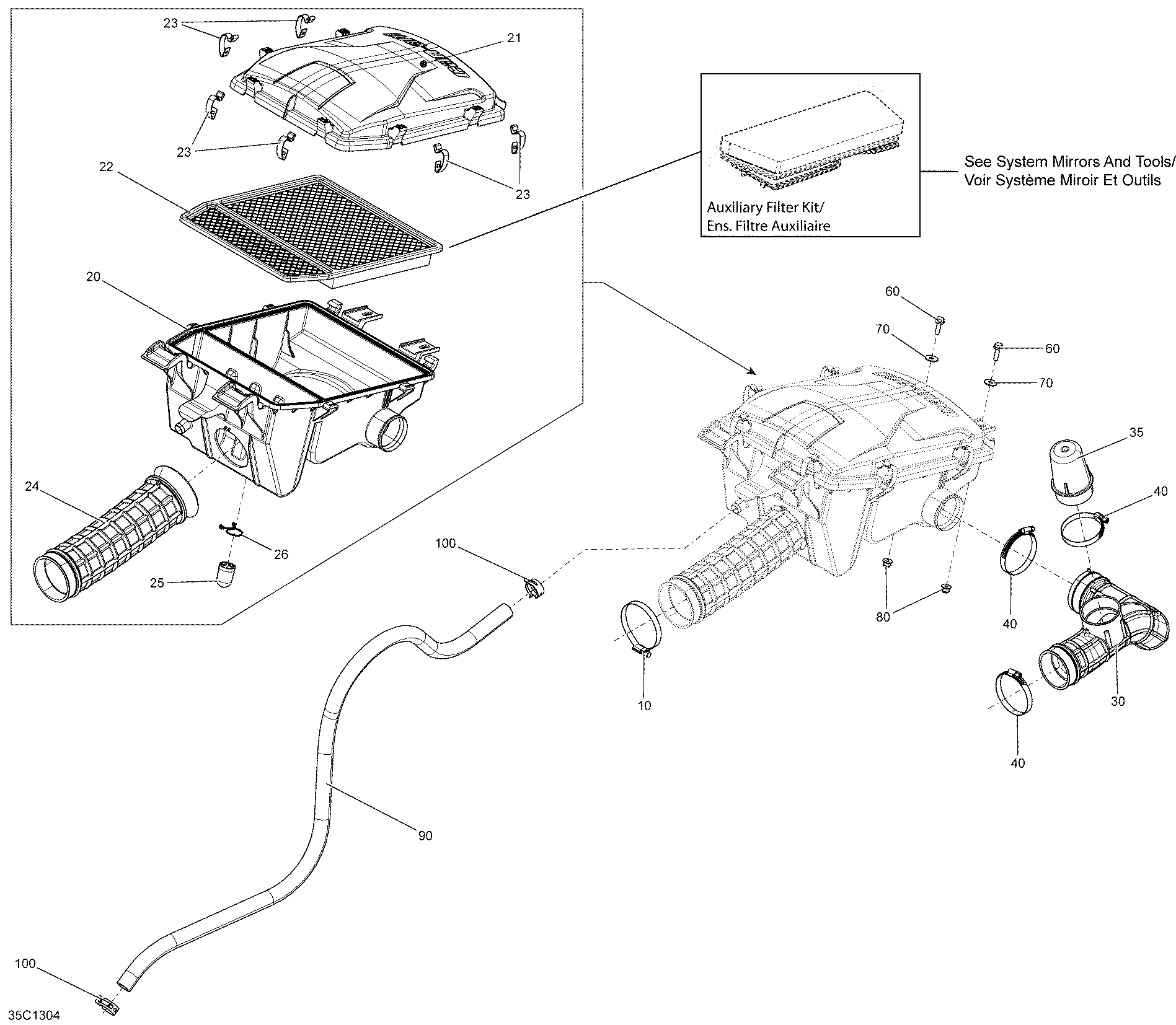

02- Air Intake для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
10293650091 Norma ClampNorma Clamp
-
20707800517 Air Intake Silencer BaseAir Intake Silencer Base
-
21707800326 Air Intake Silencer CoverAir Intake Silencer Cover
-
22707800327 Air FilterAir Filter
-
23707800249 Cover BracketCover Bracket
-
24707800329 Intake AdaptorIntake Adaptor
-
25707800080 Drain TubeDrain Tube
-
26707800278 Retainer ClipRetainer Clip
-
30707800532 Intake AdaptorIntake Adaptor
-
35707800533 Intake Adaptor TankIntake Adaptor Tank
-
40293650079 Norma ClampNorma Clamp
-
60207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
70391302000 Flat WasherFlat Washer
-
80233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
90707800411 Hose 15.88 mmHose 15.88 mm
-
100293650213 Norma Spring ClampNorma Spring Clamp
