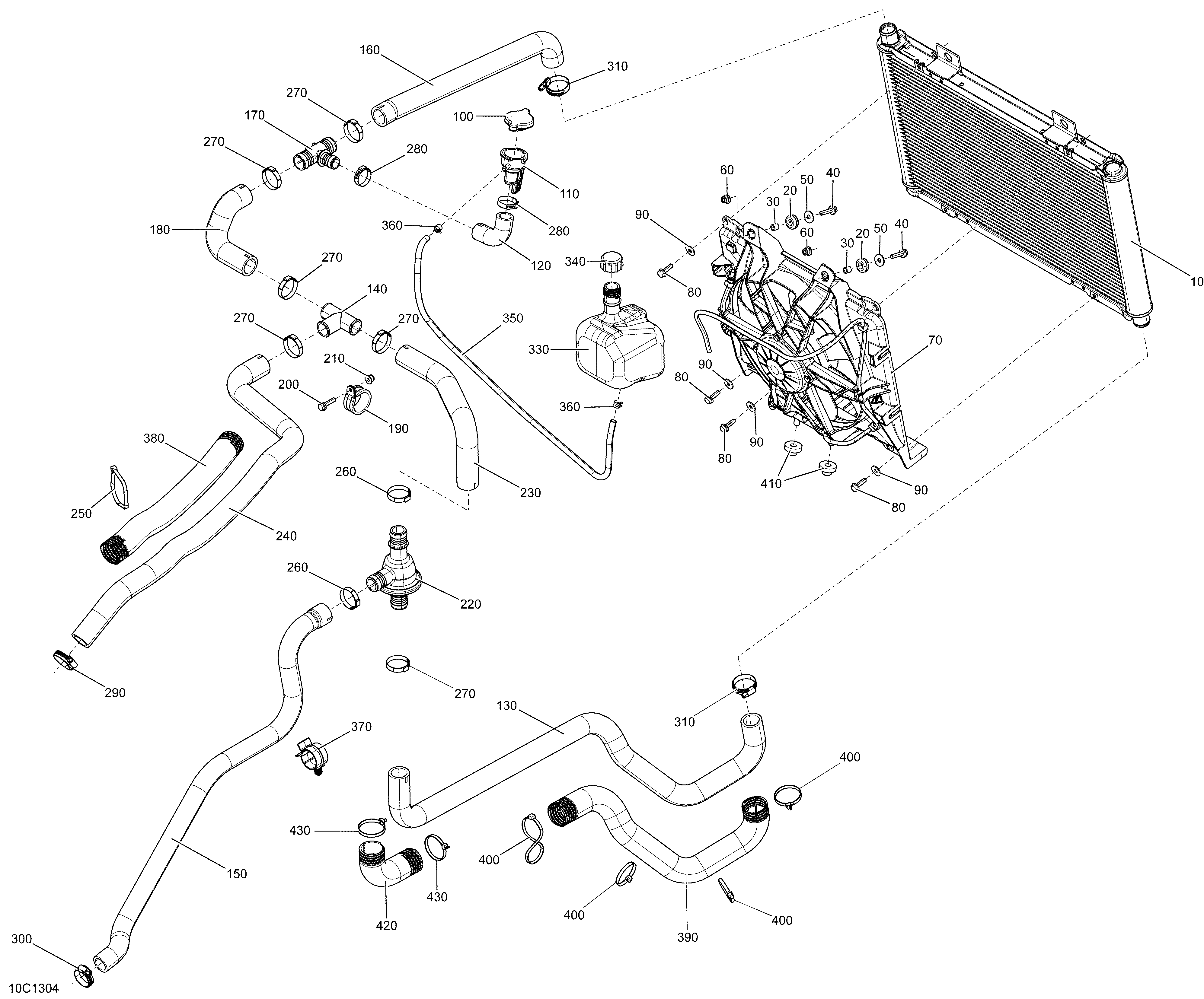

01- Cooling System для BRP Maverick 1000, STD, XRS - 2013
-
№АртикулНазвание
-
10709200395 RadiatorRadiator
-
20293720053 GrommetGrommet
-
30293900105 BushingBushing
-
40207662534 Hex. Flanged ScrewHex. Flanged Screw
-
50250200082 Flat WasherFlat Washer
-
60233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
70709200462 Fan Ass'yFan Ass'y
-
80207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
90234062410 Flat Washer 6 mmFlat Washer 6 mm
-
100709200207 Pressure CapPressure Cap
-
110709200179 Filler NeckFiller Neck
-
120709200439 Filler Neck HoseFiller Neck Hose
-
130709200444 Radiator Inlet HoseRadiator Inlet Hose
-
140509000219 T-FittingT-Fitting
-
150709200441 Pump HosePump Hose
-
160709200445 Outlet HoseOutlet Hose
-
170509000372 T-FittingT-Fitting
-
180709200443 HoseHose
-
190293650218 Hose RetainerHose Retainer
-
200207662534 Hex. Flanged ScrewHex. Flanged Screw
-
210233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
220709200406 ThermostatThermostat
-
230709200447 HoseHose
-
240709200382 Intermediate HoseIntermediate Hose
-
250293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
260509000162 Gear ClampGear Clamp
-
270509000162 Gear ClampGear Clamp
-
280293650099 Oetiker Gear ClampOetiker Gear Clamp
-
290293650098 Norma Gear ClampNorma Gear Clamp
-
300293650098 Norma Gear ClampNorma Gear Clamp
-
310293650098 Norma Gear ClampNorma Gear Clamp
-
330709200312 Coolant TankCoolant Tank
-
340709200328 Tank CapTank Cap
-
350415110000 Polyurethane Hose 5.2 mmPolyurethane Hose 5.2 mm
-
360414554800 Spring ClampSpring Clamp
-
370275500590 RetainerRetainer
-
380515176260 Tubing 35mmTubing 35mm
-
390515176260 Tubing 35mmTubing 35mm
-
400293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
410709200285 GrommetGrommet
-
420515176260 Tubing 35mmTubing 35mm
-
430293750008 Tie-Rap 350 mmTie-Rap 350 mm
