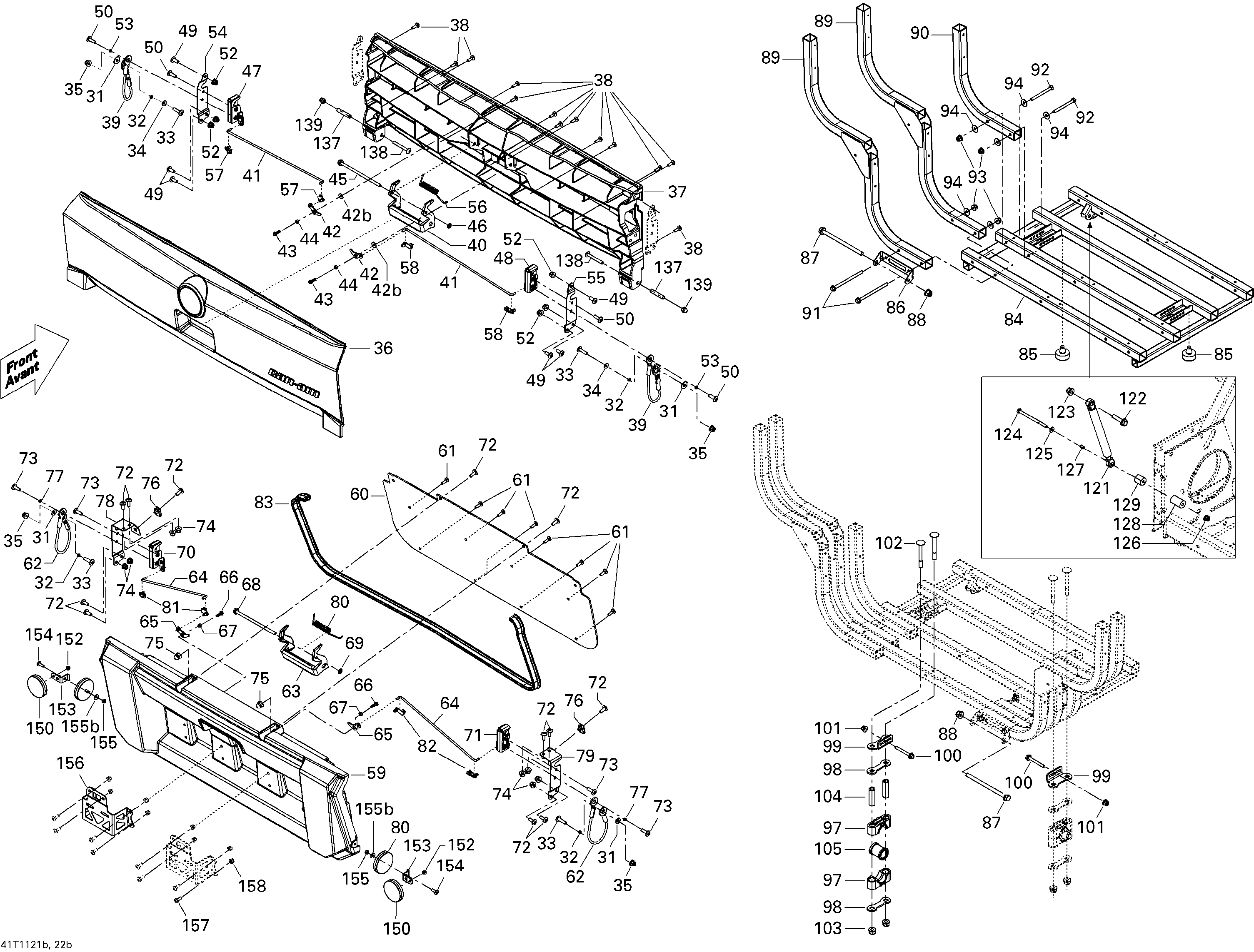

09- Rear Cargo Box 2 для BRP Commander 800 - 2011
-
№АртикулНазвание
-
31234062670 Flat WasherFlat Washer
-
32293900101 BushingBushing
-
33250000284 Torx Screw M6 x 25Torx Screw M6 x 25
-
34224061121 Flat WasherFlat Washer
-
35233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
36708300052 Outside Top Pannel, Yellow. YellowOutside Top Pannel, Yellow. Yellow
-
36708300442 Outside Top Pannel, Camo. XT CamoOutside Top Pannel, Camo. XT Camo
-
37708300053 Inside Top PannelInside Top Pannel
-
38250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
39708300092 Upper CableUpper Cable
-
40708300398 HandleHandle
-
41708300160 Top RodTop Rod
-
42708300184 ActivatorActivator
-
42b224061121 Flat WasherFlat Washer
-
43241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
44708300365 BushingBushing
-
45230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
46732610072 Push NutPush Nut
-
47708300162 LH LatchLH Latch
-
48708300201 RH LatchRH Latch
-
49250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
50250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
52233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
53293900101 BushingBushing
-
54708300359 LH Upper SupportLH Upper Support
-
55708300360 RH Upper SupportRH Upper Support
-
56708300219 SpringSpring
-
57708300182 LH Tie Rod ClipLH Tie Rod Clip
-
58708300202 RH Tie Rod ClipRH Tie Rod Clip
-
59715001255 Outside Bottom PannelOutside Bottom Pannel
-
60708300073 Inside Bottom PannelInside Bottom Pannel
-
61250000146 Truss Head Torx Screw K50 X 16Truss Head Torx Screw K50 X 16
-
62708300218 Lower CableLower Cable
-
63708300398 HandleHandle
-
64708300164 Lower Bottom RodLower Bottom Rod
-
65708300184 ActivatorActivator
-
66241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
67708300365 BushingBushing
-
68230663084 Hex. Flanged Screw M6 X 130Hex. Flanged Screw M6 X 130
-
69732610072 Push NutPush Nut
-
70708300162 LH LatchLH Latch
-
71708300201 RH LatchRH Latch
-
72250000129 Torx Screw M6 X 16Torx Screw M6 X 16
-
73250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
74233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
75232361493 Domed Nut M6Domed Nut M6
-
76250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
77293900101 BushingBushing
-
78708300361 LH Lower SupportLH Lower Support
-
79708300362 RH Lower SupportRH Lower Support
-
80708300219 SpringSpring
-
81708300182 LH Tie Rod ClipLH Tie Rod Clip
-
82708300202 RH Tie Rod ClipRH Tie Rod Clip
-
83293250240 Neoprene sealNeoprene seal
-
84708300167 Black Box SupportBlack Box Support
-
85708000884 Rubber StopperRubber Stopper
-
86708300185 Bracket PivotBracket Pivot
-
87230683034 Hex. Flanged Screw M8 X 130Hex. Flanged Screw M8 X 130
-
88233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
89708300174 Welded Lateral Support, BlackWelded Lateral Support, Black
-
90708300340 Lateral Support, BlackLateral Support, Black
-
91207669584 Hex. Flanged Screw M6 X 95Hex. Flanged Screw M6 X 95
-
92207066544 Hex. Screw M6 X 65Hex. Screw M6 X 65
-
93233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
94234062410 Flat Washer 6 mmFlat Washer 6 mm
-
97506150400 Housing HalfHousing Half
-
98506150600 Stopper PlateStopper Plate
-
99708300210 Adjustable Stopper PlateAdjustable Stopper Plate
-
100207665044 Hex. Flanged Screw M6 X 50Hex. Flanged Screw M6 X 50
-
101233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
102207787044 Carriage Bolt M8 X 70Carriage Bolt M8 X 70
-
103233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
104506150500 Housing BushingHousing Bushing
-
105708300172 Pivot BushingPivot Bushing
-
121708300512 Gaz ShockGaz Shock
-
122207683544 Hex. Flanged Screw M8 X 35Hex. Flanged Screw M8 X 35
-
123233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
124207069044 Hex. Screw M6 X 90Hex. Screw M6 X 90
-
125234062410 Flat Washer 6 mmFlat Washer 6 mm
-
126233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
127708300366 BushingBushing
-
128708300470 SpacerSpacer
-
129708300471 SpacerSpacer
-
137708300513 BushingBushing
-
138250000239 Torx Truss Screw M6 X 50Torx Truss Screw M6 X 50
-
139232361493 Domed Nut M6Domed Nut M6
