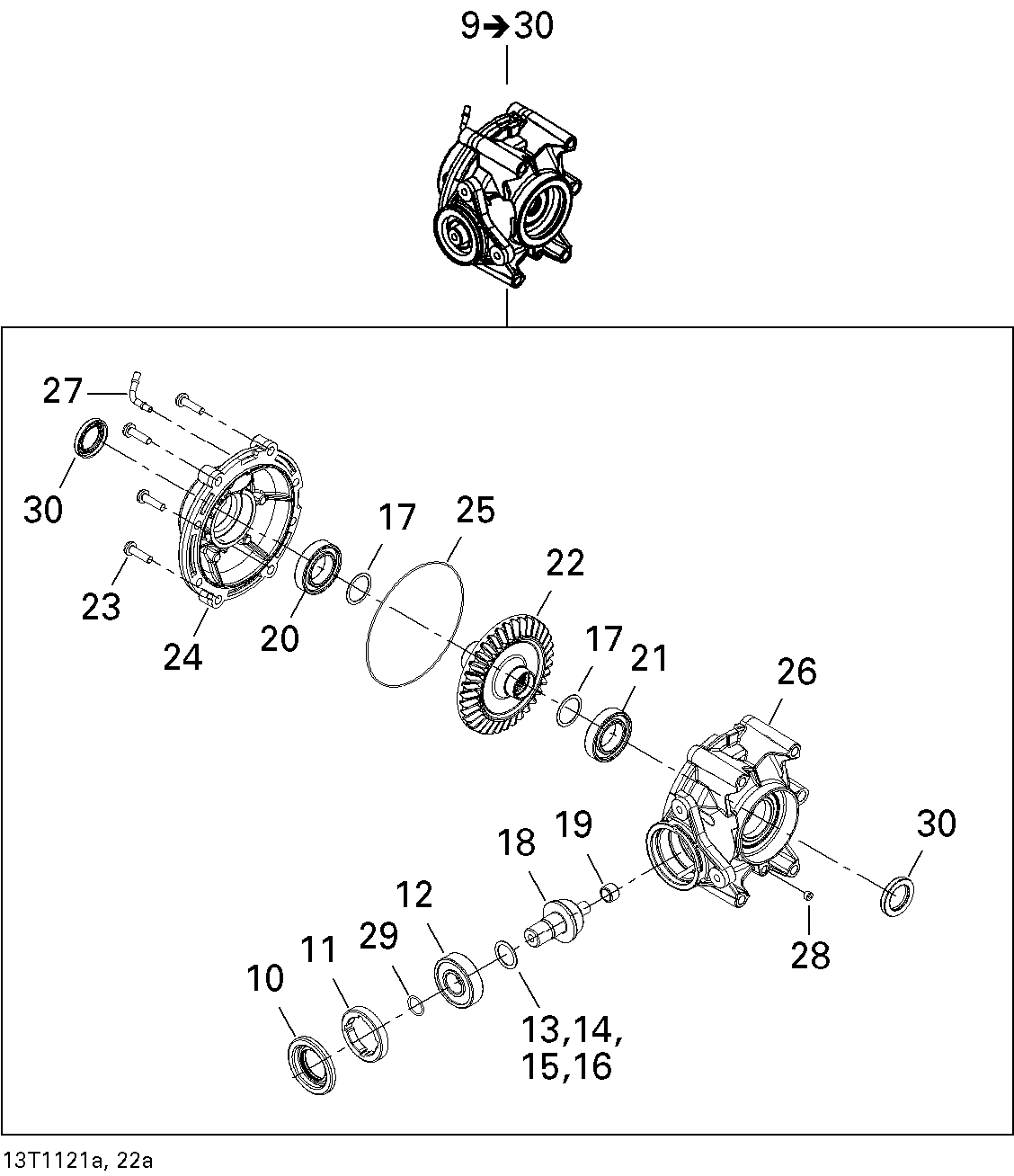

08- Differential Ass, Rear 1 для BRP Commander 800 - 2011
-
№АртикулНазвание
-
10705400027 Oil Seal. Up to 2010-10-14Oil Seal. Up to 2010-10-14
-
10705400027 Oil Seal. Up to 2010-10-14Oil Seal. Up to 2010-10-14
-
11705500987 Nut. Up to 2010-10-14Nut. Up to 2010-10-14
-
12705500260 Ball Bearing. Up to 2010-10-14Ball Bearing. Up to 2010-10-14
-
13705500075 Pinion Gear Shim .022''. Up to 2010-10-14Pinion Gear Shim .022''. Up to 2010-10-14
-
14703500049 Pinion Shim Kit. Up to 2010-10-14Pinion Shim Kit. Up to 2010-10-14
-
15705501162 Pinion Gear Shim. Up to 2010-10-14Pinion Gear Shim. Up to 2010-10-14
-
17703500548 Differential Shim Kit. Up to 2010-10-14Differential Shim Kit. Up to 2010-10-14
-
23705500892 Screw. Up to 2010-10-14Screw. Up to 2010-10-14
-
25705500265 Seal. Up to 2010-10-14Seal. Up to 2010-10-14
-
27705500893 Vent Valve. Up to 2010-10-14Vent Valve. Up to 2010-10-14
-
28705500894 Drain Plug. Up to 2010-10-14Drain Plug. Up to 2010-10-14
-
29705500267 O-Ring. Up to 2010-10-14O-Ring. Up to 2010-10-14
-
30705501196 Oil Seal. Up to 2010-10-14Oil Seal. Up to 2010-10-14
-
6CBA 00003 - 00003. STD, 800EFI, Yellow, C/U. Up to 2010-10-1400003 - 00003. STD, 800EFI, Yellow, C/U. Up to 2010-10-14
-
6CBC 00005 - 00006. STD, 800EFI, Yellow, INT. Up to 2010-10-1400005 - 00006. STD, 800EFI, Yellow, INT. Up to 2010-10-14
-
6DBA 00002 - 00002. XT, 800EFI, Yellow, C/U. Up to 2010-10-1400002 - 00002. XT, 800EFI, Yellow, C/U. Up to 2010-10-14
