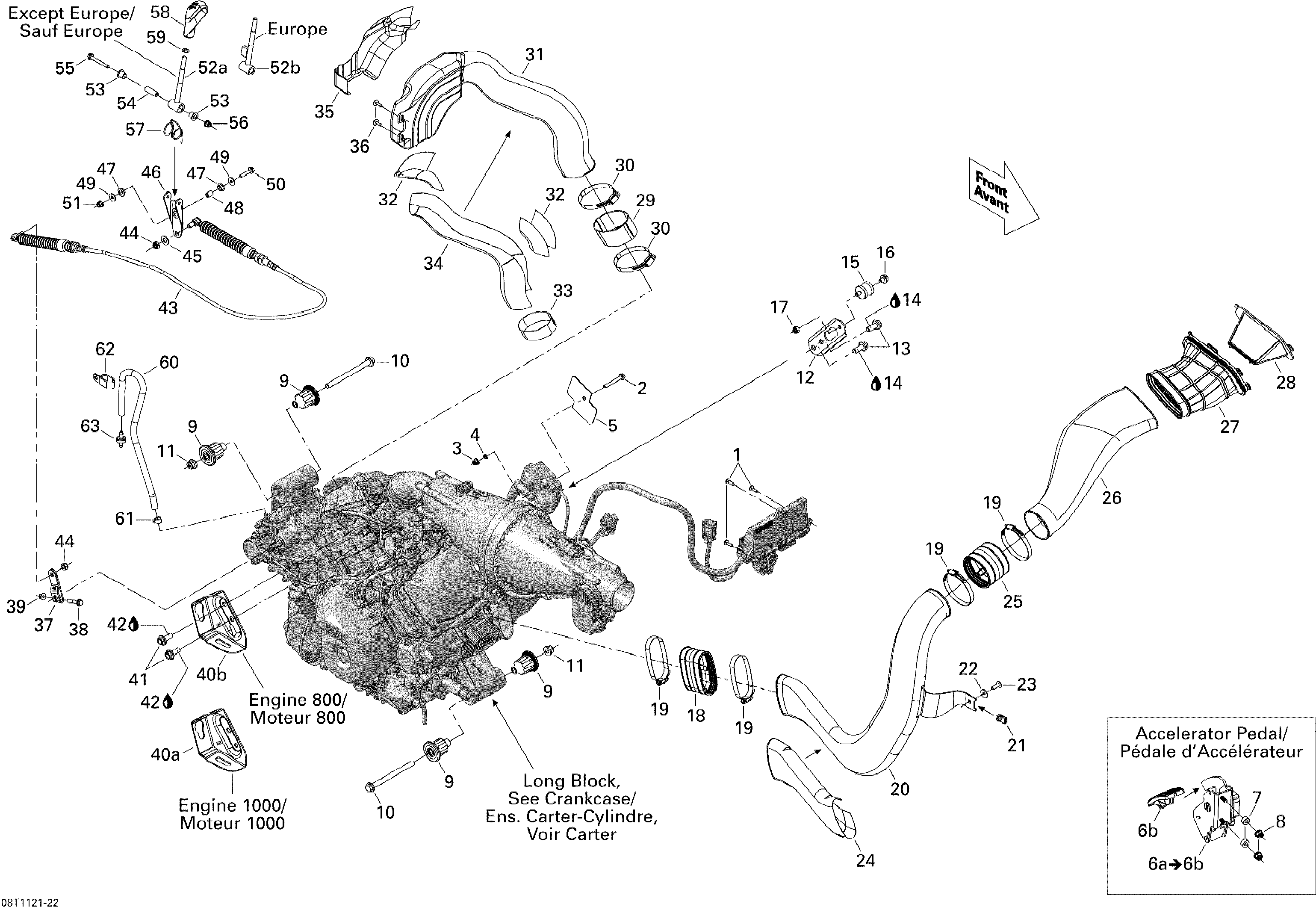

01- Engine для BRP Commander 800 - 2011

№

Артикул

Название
1

250000146 Truss Head Torx Screw K50 X 16

Truss Head Torx Screw K50 X 16
2

207665044 Hex. Flanged Screw M6 X 50

Hex. Flanged Screw M6 X 50
3

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
4

234461608 External Serrated Lock Washer 6 mm

External Serrated Lock Washer 6 mm
5

710000073 Insulator Pad

Insulator Pad
6a

707000700 Accelerator Pedal. Includes 6a to 6b

Accelerator Pedal. Includes 6a to 6b
6b

715900110 Accelerator Pedal Pad

Accelerator Pedal Pad
7

707000848 Bushing

Bushing
8

233281414 Hex. Flanged Elastic Nut M8

Hex. Flanged Elastic Nut M8
9

707000426 Anti-Vibration Mount

Anti-Vibration Mount
10

230602546 Hex. Flanged Screw M10 X 125

Hex. Flanged Screw M10 X 125
11

233201436 Flanged Elastic Nut

Flanged Elastic Nut
12

707000707 Upper Engine Bracket

Upper Engine Bracket
13

207602544 Hex. Flanged Screw M10 X 25

Hex. Flanged Screw M10 X 25
14

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml
15

274000839 Rubber Isolator

Rubber Isolator
16

207581046 Flanged Screw M8 x 10, Scotch Grip

Flanged Screw M8 x 10, Scotch Grip
17

232581434 Elastic Stop Nut

Elastic Stop Nut
18

707000719 Flexible Adaptor

Flexible Adaptor
19

293650091 Norma Clamp

Norma Clamp
20

707000639 Air Inlet

Air Inlet
21

250000048 Panel Nut M6 X 1.0

Panel Nut M6 X 1.0
22

250200082 Flat Washer

Flat Washer
23

250000128 Torx Truss Screw M6 X 20

Torx Truss Screw M6 X 20
24

707000924 Reflective Sheet

Reflective Sheet
25

707000719 Flexible Adaptor

Flexible Adaptor
26

707000909 Primary Air Intake

Primary Air Intake
27

707000908 Adaptor

Adaptor
28

707000873 CVT Filter

CVT Filter
29

706600007 Flexible Adaptor

Flexible Adaptor
30

514052859 Norma Gear Clamp

Norma Gear Clamp
31

707000640 CVT Air Outlet

CVT Air Outlet
32

707000991 Reflective Sheet

Reflective Sheet
33

707000988 Reflective Sheet

Reflective Sheet
34

707000989 Reflective Sheet

Reflective Sheet
35

707000990 Reflective Sheet

Reflective Sheet
36

250000113 Screw M4 X 16, Type K-40

Screw M4 X 16, Type K-40
37

707000774 Lever

Lever
38

207663544 Hex. Flanged Screw M6 X 35

Hex. Flanged Screw M6 X 35
39

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
40b

707000921 Cable Support. Engine 800

Cable Support. Engine 800
41

207602544 Hex. Flanged Screw M10 X 25

Hex. Flanged Screw M10 X 25
42

293800060 Loctite 243, 10 ml

Loctite 243, 10 ml
43

707000775 Shifting Cable

Shifting Cable
44

232581414 Hex. Elastic Nut M8

Hex. Elastic Nut M8
45

234001410 Flat Washer 10 mm

Flat Washer 10 mm
46

707000828 Lower Lever Arm

Lower Lever Arm
47

707000847 Flanged Bushing

Flanged Bushing
48

707000801 Bushing

Bushing
49

234062410 Flat Washer 6 mm

Flat Washer 6 mm
50

207663044 Hex. Flanged Screw M6 X 30

Hex. Flanged Screw M6 X 30
51

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
52a

707000711 Upper Lever Arm. Except Europe

Upper Lever Arm. Except Europe
53

707000869 Flanged Bushing

Flanged Bushing
54

707000868 Bushing

Bushing
55

207665044 Hex. Flanged Screw M6 X 50

Hex. Flanged Screw M6 X 50
56

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
57

707000750 Lever Arm Spring

Lever Arm Spring
58

707000284 Lever Handle

Lever Handle
59

232180491 Hex. Jam Nut M8

Hex. Jam Nut M8
60

415079800 Hose 1/4''

Hose 1/4''
61

414415200 Universal Spring Clamp

Universal Spring Clamp
62

709000057 Open Clamp

Open Clamp
63

275500398 Check Valve

Check Valve
