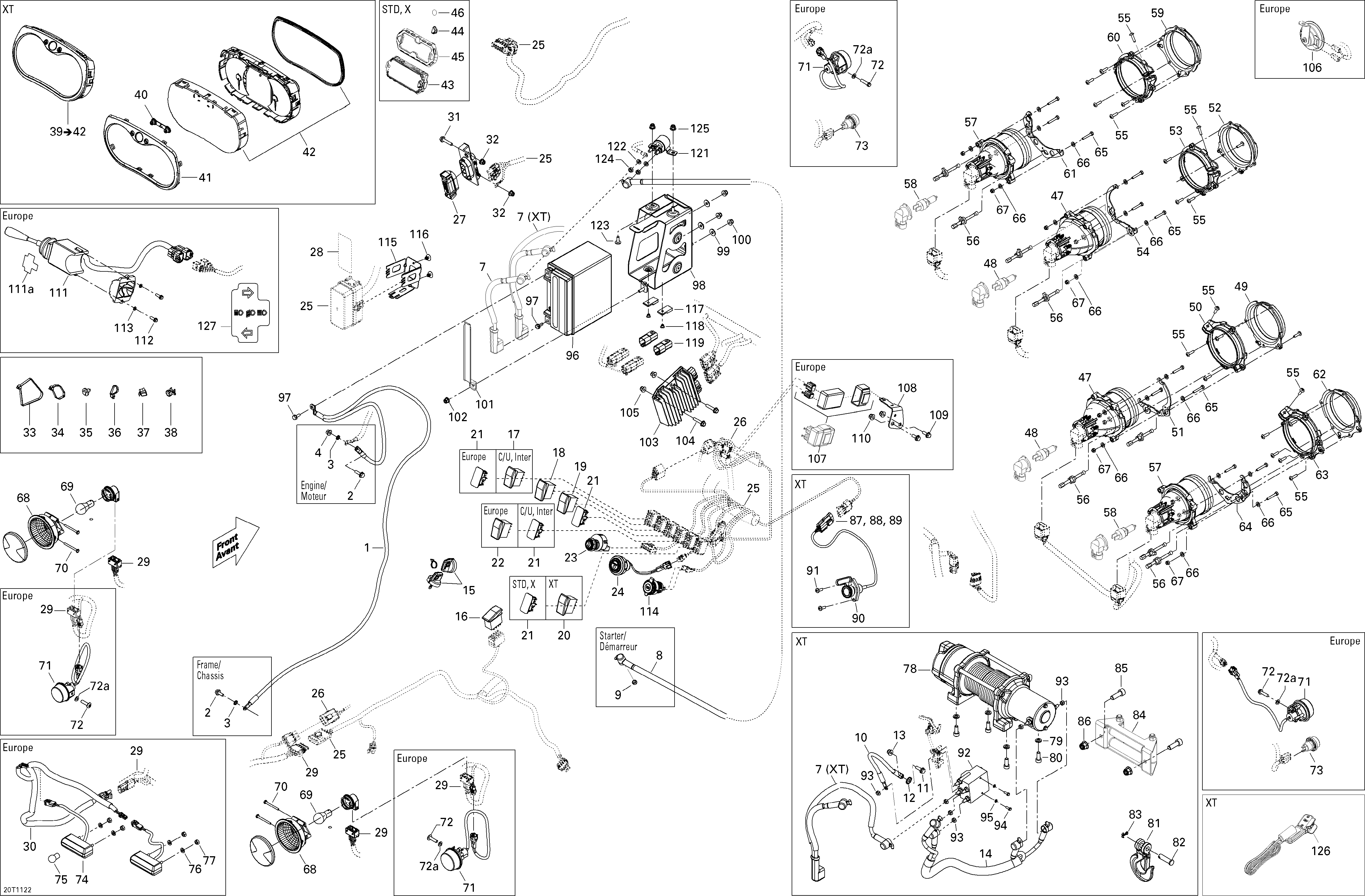

10- Electrical System для BRP Commander 1000 - 2011

  • №
    Артикул
    Название
  • 1
    710002147 Ground Cable
    Ground Cable
  • 2
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 3
    250200041 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 4
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 5
    250200041 External Serrated Lock Washer 6 mm
    External Serrated Lock Washer 6 mm
  • 6
    207561644 Hex. Flanged Screw M6 X 16, Scotch Grip
    Hex. Flanged Screw M6 X 16, Scotch Grip
  • 7
    710002148 Positive Cable. STD, X
    Positive Cable. STD, X
  • 7
    710002159 Positive Cable. XT
    Positive Cable. XT
  • 8
    710002146 Positive Cable
    Positive Cable
  • 9
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 10
    710002214 Negative Cable. XT
    Negative Cable. XT
  • 11
    207662044 Hex. Flanged Screw M6 X 20. XT
    Hex. Flanged Screw M6 X 20. XT
  • 12
    250200041 Lock Washer Serrated M6. XT
    Lock Washer Serrated M6. XT
  • 13
    233261414 Hex. Flanged Elastic Nut M6. XT
    Hex. Flanged Elastic Nut M6. XT
  • 14
    710002216 Electrical Winch Cable. XT
    Electrical Winch Cable. XT
  • 15
    710000817 Black-Electronic Key
    Black-Electronic Key
  • 15
    710002183 Grey-Electronic Key
    Grey-Electronic Key
  • 15
    710000817 Black-Electronic Key. Europe
    Black-Electronic Key. Europe
  • 16
    710002053 Switch, Over Ride
    Switch, Over Ride
  • 17
    710001725 Hi/Low Beam Switch. Except Europe
    Hi/Low Beam Switch. Except Europe
  • 18
    710001737 4X4 Switch
    4X4 Switch
  • 19
    710002199 PPS Sport Switch
    PPS Sport Switch
  • 20
    710002052 Winch Switch. XT
    Winch Switch. XT
  • 21
    710001999 Plug Carling. STD
    Plug Carling. STD
  • 21
    710001999 Plug Carling. Europe
    Plug Carling. Europe
  • 21
    710001999 Plug Carling. XT
    Plug Carling. XT
  • 21
    710001999 Plug Carling. X
    Plug Carling. X
  • 22
    710002076 Switch. Europe
    Switch. Europe
  • 23
    710002327 Ignition Switch
    Ignition Switch
  • 24
    710002594 Start Button
    Start Button
  • 25
    710001779 Main Harness Ass'y. Except Europe
    Main Harness Ass'y. Except Europe
  • 26
    710002165 Main Harness Ass'y. Europe
    Main Harness Ass'y. Europe
  • 27
    710001996 Housing
    Housing
  • 28
    710002218 Decal
    Decal
  • 29
    710001644 Rear Harness. Except Europe
    Rear Harness. Except Europe
  • 29
    710002164 Rear Harness. Europe
    Rear Harness. Europe
  • 30
    710002220 Rear Harness. Europe
    Rear Harness. Europe
  • 31
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 32
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 33
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 34
    414115200 Tie-Rap 180 mm. Europe
    Tie-Rap 180 mm. Europe
  • 35
    293730018 Mount Dart
    Mount Dart
  • 36
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 37
    414227300 Clip. Europe
    Clip. Europe
  • 38
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 39
    710002533 Speedometer. X, XT
    Speedometer. X, XT
  • 40
    415129355 Speedometer Button. X, XT
    Speedometer Button. X, XT
  • 41
    415129348 Gauge Ring. X, XT
    Gauge Ring. X, XT
  • 42
    415129349 Lens. X, XT
    Lens. X, XT
  • 43
    710002535 Speedometer. STD
    Speedometer. STD
  • 44
    710001473 Button. STD
    Button. STD
  • 45
    710001183 Trim Ring. STD
    Trim Ring. STD
  • 46
    704901270 BRP Logo, 13mm. STD
    BRP Logo, 13mm. STD
  • 47
    710001325 Low Beam
    Low Beam
  • 48
    415129249 Halogen Bulb
    Halogen Bulb
  • 49
    710001081 RH Low Front Housing
    RH Low Front Housing
  • 50
    710001082 RH Low Rear Housing
    RH Low Rear Housing
  • 51
    710001094 RH Low Light Support
    RH Low Light Support
  • 52
    710001083 LH Low Front Housing
    LH Low Front Housing
  • 53
    710001084 LH Low Rear Housing
    LH Low Rear Housing
  • 54
    710001037 LH Low Light Support
    LH Low Light Support
  • 55
    250000084 Phillips Screw K40 X 16
    Phillips Screw K40 X 16
  • 56
    710001147 Setting Screw
    Setting Screw
  • 57
    710001326 High Beam
    High Beam
  • 58
    415129249 Halogen Bulb
    Halogen Bulb
  • 59
    710001085 RH High Front Housing
    RH High Front Housing
  • 60
    710001086 RH High Rear Housing
    RH High Rear Housing
  • 61
    710001115 RH High Light Support
    RH High Light Support
  • 62
    710001087 LH High Front Housing
    LH High Front Housing
  • 63
    710001088 LH High Rear Housing
    LH High Rear Housing
  • 64
    710001036 LH High Light Support
    LH High Light Support
  • 65
    207142544 Hex. Screw M4 X 25
    Hex. Screw M4 X 25
  • 66
    234051410 Flat Washer M5
    Flat Washer M5
  • 67
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 68
    710001645 Tail Light
    Tail Light
  • 69
    520000758 Bulb
    Bulb
  • 70
    241154540 Hex. Screw K50 X 45
    Hex. Screw K50 X 45
  • 71
    710002047 Flasher. Europe
    Flasher. Europe
  • 72a
    234061410 Washer. Europe
    Washer. Europe
  • 72
    250000284 Torx Screw M6 x 25. Europe
    Torx Screw M6 x 25. Europe
  • 73
    710001726 Day Light. Europe
    Day Light. Europe
  • 74
    710002055 License Light. Europe
    License Light. Europe
  • 75
    219800128 Bulb. Europe
    Bulb. Europe
  • 76
    234161601 Lock Washer Helical M6. Europe
    Lock Washer Helical M6. Europe
  • 77
    232061600 Hex. Nut M6. Europe
    Hex. Nut M6. Europe
  • 78
    705003944 Winch. XT
    Winch. XT
  • 79
    205082044 Socket Head Screw M8 X 20. XT
    Socket Head Screw M8 X 20. XT
  • 80
    234181401 Lock Washer 8 mm. XT
    Lock Washer 8 mm. XT
  • 81
    705002329 Hook. XT
    Hook. XT
  • 82
    250400021 Clevis Pin. XT
    Clevis Pin. XT
  • 83
    250400022 Cotter Pin. XT
    Cotter Pin. XT
  • 84
    705004228 Winch Cable Guide. XT
    Winch Cable Guide. XT
  • 86
    233201414 Hex. Flanged Elastic Nut M10. XT
    Hex. Flanged Elastic Nut M10. XT
  • 87
    710001059 Connector Ass'y. XT
    Connector Ass'y. XT
  • 88
    278000281 Female Terminal Housing, 3 Circuits
    Female Terminal Housing, 3 Circuits
  • 89
    710000992 Clip
    Clip
  • 90
    710001023 Winch Connector. XT
    Winch Connector. XT
  • 91
    250000146 Truss Head Torx Screw K50 X 16. XT
    Truss Head Torx Screw K50 X 16. XT
  • 92
    710002112 Solenoid. XT
    Solenoid. XT
  • 93
    232561434 Elastic Stop Nut M6. XT
    Elastic Stop Nut M6. XT
  • 94
    207141044 Hex. Screw M4 X 10. XT
    Hex. Screw M4 X 10. XT
  • 95
    234141601 Lock Washer 4 mm. XT
    Lock Washer 4 mm. XT
  • 96
    410301203 Battery, 18 Amperes
    Battery, 18 Amperes
  • 97
    295500849 Battery Fastener Kit
    Battery Fastener Kit
  • 98
    710001911 Battery Support
    Battery Support
  • 99
    234062410 Flat Washer 6 mm
    Flat Washer 6 mm
  • 100
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 101
    710001916 Battery Holder
    Battery Holder
  • 102
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 103
    710001191 Voltage Regulator
    Voltage Regulator
  • 104
    207663044 Hex. Flanged Screw M6 X 30
    Hex. Flanged Screw M6 X 30
  • 105
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 106
    710000983 Horn. Europe
    Horn. Europe
  • 107
    710002393 Flasher Unit. Europe
    Flasher Unit. Europe
  • 108
    710002408 Support. Europe
    Support. Europe
  • 109
    207661644 Hex. Flanged Screw M6 X 16. Europe
    Hex. Flanged Screw M6 X 16. Europe
  • 110
    233261414 Hex. Flanged Elastic Nut M6. Europe
    Hex. Flanged Elastic Nut M6. Europe
  • 111
    710001721 Turn Signal. Europe
    Turn Signal. Europe
  • 111a
    704902614 Decal Headlight/Turn Signal. Europe
    Decal Headlight/Turn Signal. Europe
  • 112
    210251680 Hex. Forming Screw M5 X 16. Europe
    Hex. Forming Screw M5 X 16. Europe
  • 113
    234151401 Lock Washer 5 mm. Europe
    Lock Washer 5 mm. Europe
  • 114
    710001248 Outlet DC
    Outlet DC
  • 115
    710001918 Fuse Holder
    Fuse Holder
  • 116
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 117
    270000141 Clip
    Clip
  • 118
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 119
    278002148 Diagnostic Connector Cap
    Diagnostic Connector Cap
  • 121
    710001364 Starter Relay
    Starter Relay
  • 122
    234161601 Lock Washer Helical M6
    Lock Washer Helical M6
  • 123
    250000223 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 124
    232061600 Hex. Nut M6
    Hex. Nut M6
  • 125
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 126
    710001002 Remote Control. XT
    Remote Control. XT
  • 127
    704902614 Flasher Decal. Europe
    Flasher Decal. Europe
